Product Number: SM5

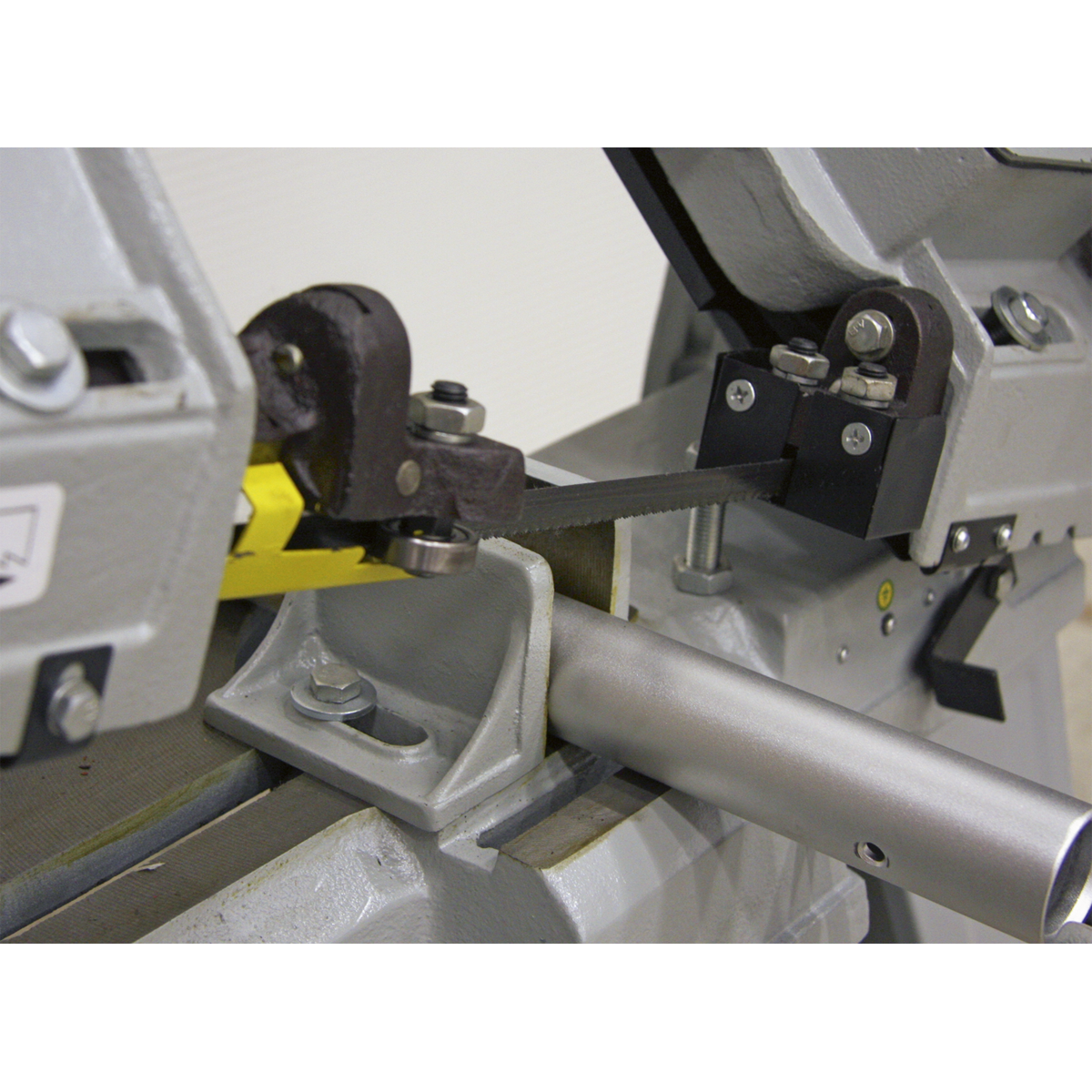

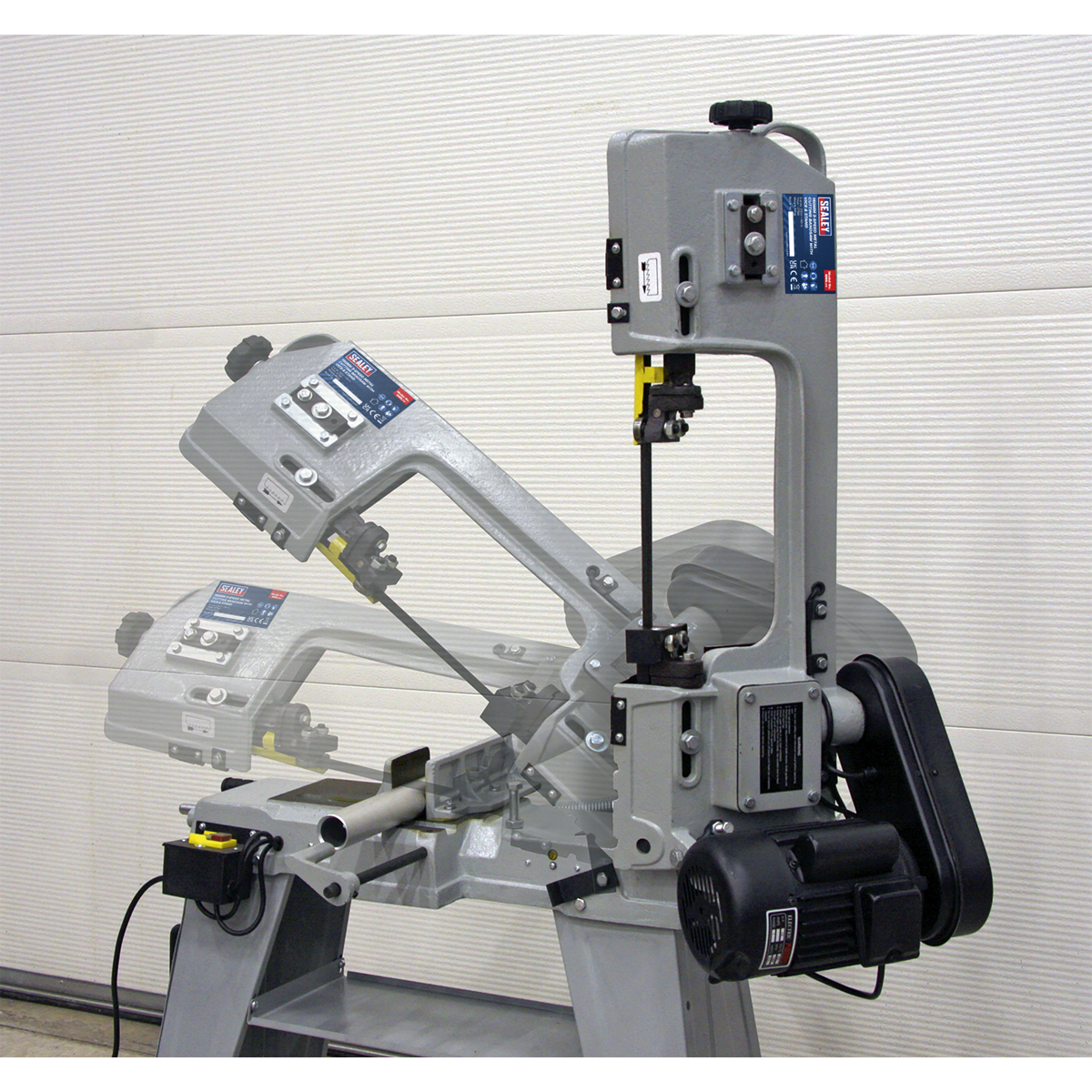

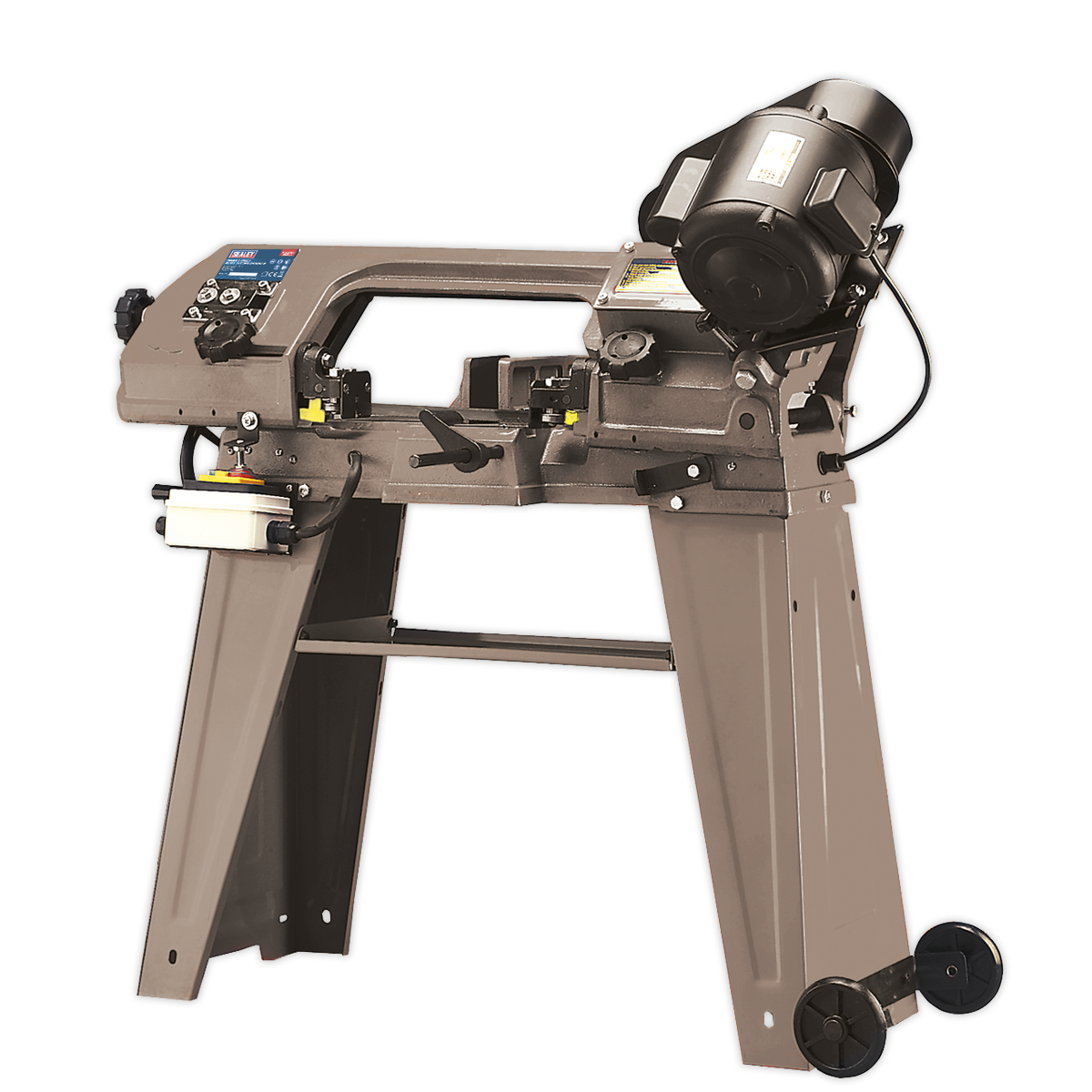

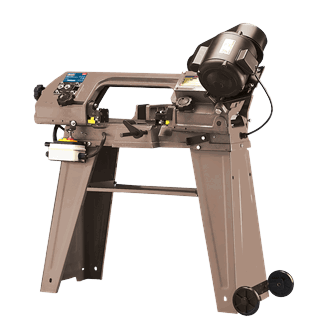

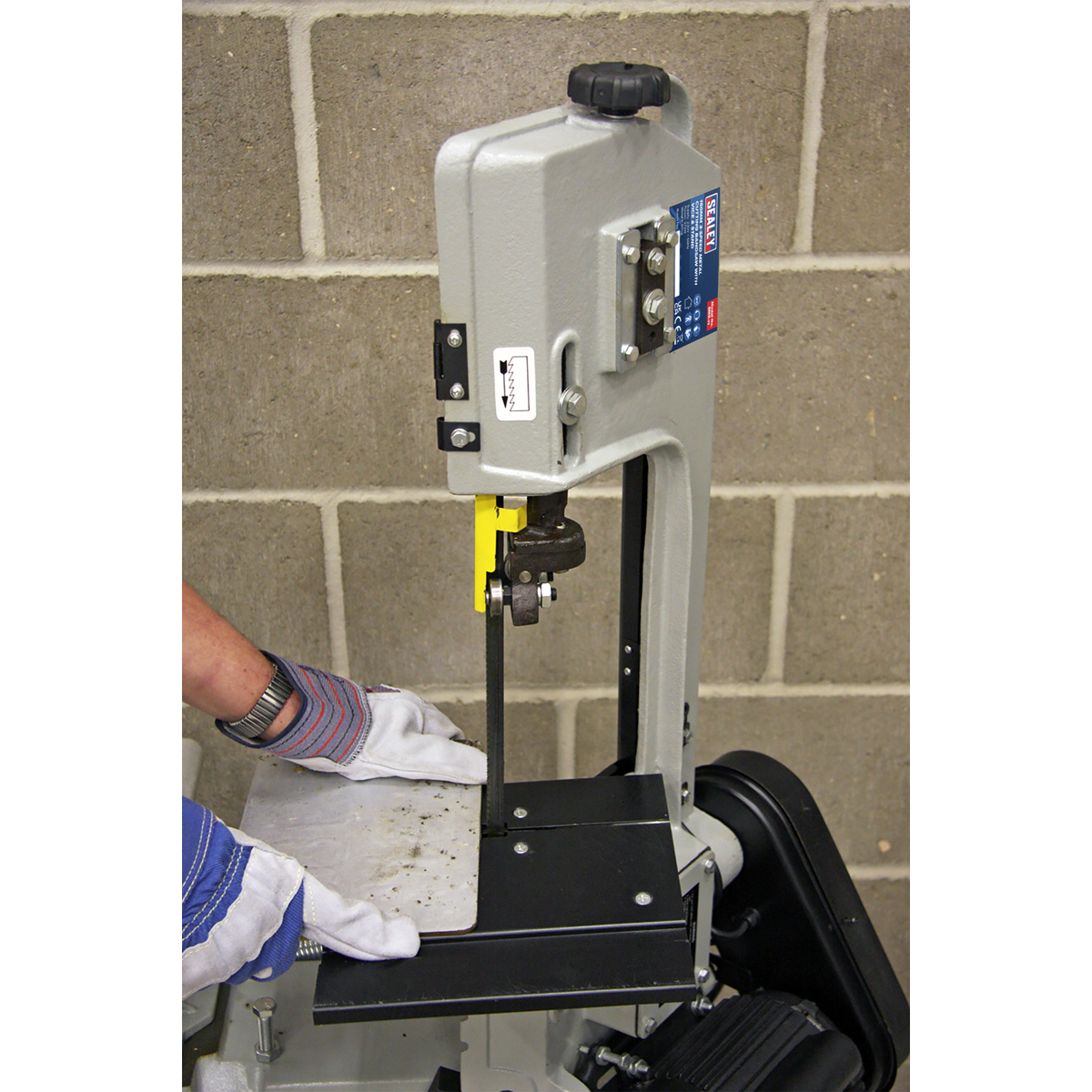

Cutting metal accurately and efficiently demands a machine built for the task an angle grinder or hacksaw simply cannot deliver the repeatability needed in a busy workshop. The Sealey SM5 is a 375W metal cutting bandsaw running on 230V, with three blade speeds of 18, 30, and 48 metres per minute to suit different materials and cut types. At 90°, it handles round stock up to 115mm diameter and square or rectangular sections up to 100 x 150mm. At 45°, capacity is 60mm round and 100 x 60mm square or rectangular. The blade measures 1638 x 13 x 0.63mm. An oil-bath gearbox and life-lubricated drive bearings keep operation quiet and smooth, while fully adjustable precision blade guides extend blade life and maintain cutting accuracy. The integral mitring vice features a scale from 45° to 90° for angle cutting, and a magnetic no-load voltage switch prevents motor restart in the event of a power failure or blade jam. The heavy-duty cast base houses the horizontal and vertical cutting arm, and the stand is fitted with two wheels for ease of movement. The machine weighs 60kg and complies with the Machinery Safety Directive, with full CE approval.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM5 |
|---|---|
| Brand | Sealey |
| Nett Weight | 60kg |
| Capacity 90º - Round | Ø115mm |
| Capacity 90º - Square/Rectangular (H x W) | 100 x 150mm |
| Capacity 45º - Round | Ø60mm |
| Capacity 45º - Square/Rectangular (H x W) | 100 x 60mm |
| Blade Size | 1638 x 13 x 0.63mm |
| Blade Speeds | 18, 30, 48m/min |
| Motor Power | 375W |
| Supply | 230V |
| Weight | 60kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SM5/113/10 | Sealey Bandsaw Blade 1638x13x0.63mm 10tpi for SM5 & SM65 | 1 Unit |
£24.71
£24.22
|
Add |
|
SM5/113/24 | Sealey Bandsaw Blade 1638x13x0.63mm 24tpi for SM5 & SM65 | 1 Unit |
£24.71
£24.22
|
Add |
|
SM5/113/6 | Sealey SM5/113/6 Bandsaw Blade 1638x13x0.63mm 6tpi - Fits SM5 & SM65 | 1 Unit |
£24.71
£24.22
|
Add |
|
SM5/113 | Sealey SM5/113 Bandsaw Blade 1638x13x0.63mm 14tpi | 1 Unit |
£24.71
£24.22
|
Add |
sealey-metal-cutting-bandsaw-3-speed-150mm-230v.pdf
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Metal Cutting Bandsaw or Chop Saw? Sizing, Straight Cuts, Blades Cutting steel with a grinder, or fighting a bandsaw that runs off line and snaps blades? Choose the saw by section, angle and power supply, then keep the bl...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SM65 Metal Cutting Bandsaw 150mm 230V with Mitre & Quick Lock Vice
£583.09
£571.43
2% OFF
Free delivery in UK Mainland
|
Sealey SM354CE Industrial Power Bandsaw 210mm
£1,677.72
£1,644.82
2% OFF
Free delivery in UK Mainland
|
Sealey SM35CE Bandsaw 300mm Horizontal Hydraulic Arm
£1,409.80
£1,382.16
2% OFF
Free delivery in UK Mainland
|
Sealey SM355CE Industrial Power Bandsaw 255mm
£2,414.34
£2,366.05
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SM65 | DF760 | SM354CE | SM35CE | SM355CE |
| Type | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw | Metal Cutting Bandsaw |
| Blade Size | 1638 x 13 x 0.63mm | 2105 x 20 x 0.9mm | 2360 x 19 x 0.9mm | 2450 x 27 x 0.9mm | |
| Length (mm) | 150 | 760 | 210 | 300 | 255 |
| Motor Power | 375W | 900W | 750W | 1100W | |
| Voltage (V) | 230 | 230 | 230 | 230 | |
| Weight (kg) | 10 | 39 | 164 | 138 | 218 |
A. At 90°, the SM5 cuts round stock up to 115mm diameter and square or rectangular sections up to 100 x 150mm (H x W). At 45°, capacity is 60mm round and 100 x 60mm square or rectangular.
A. The SM5 offers three blade speeds: 18, 30, and 48 metres per minute.
A. The SM5 uses a blade measuring 1638 x 13 x 0.63mm.
A. Yes. The SM5 is fitted with a magnetic no-load voltage switch that prevents the motor from restarting in the event of a power failure or blade jam. The blade is also fully guarded.
A. The SM5 is fitted with an oil-bath gearbox and life-lubricated drive bearings, which are designed for quiet, smooth running.
A. Yes. The saw base features an integral mitring vice with a scale graduated from 45° to 90° for angle cutting.
A. Yes. Alternatives include the SM1303, SM1304, SM1305, and SM1306. Each offers a different specification. Please refer to the individual product listings for details.
A. The SM5 has a 375W motor and operates on a 230V supply.
A. Yes. The SM5 complies with the requirements of the Machinery Safety Directive and is fully CE approved.
