Product Number: MAG60230V
Variations

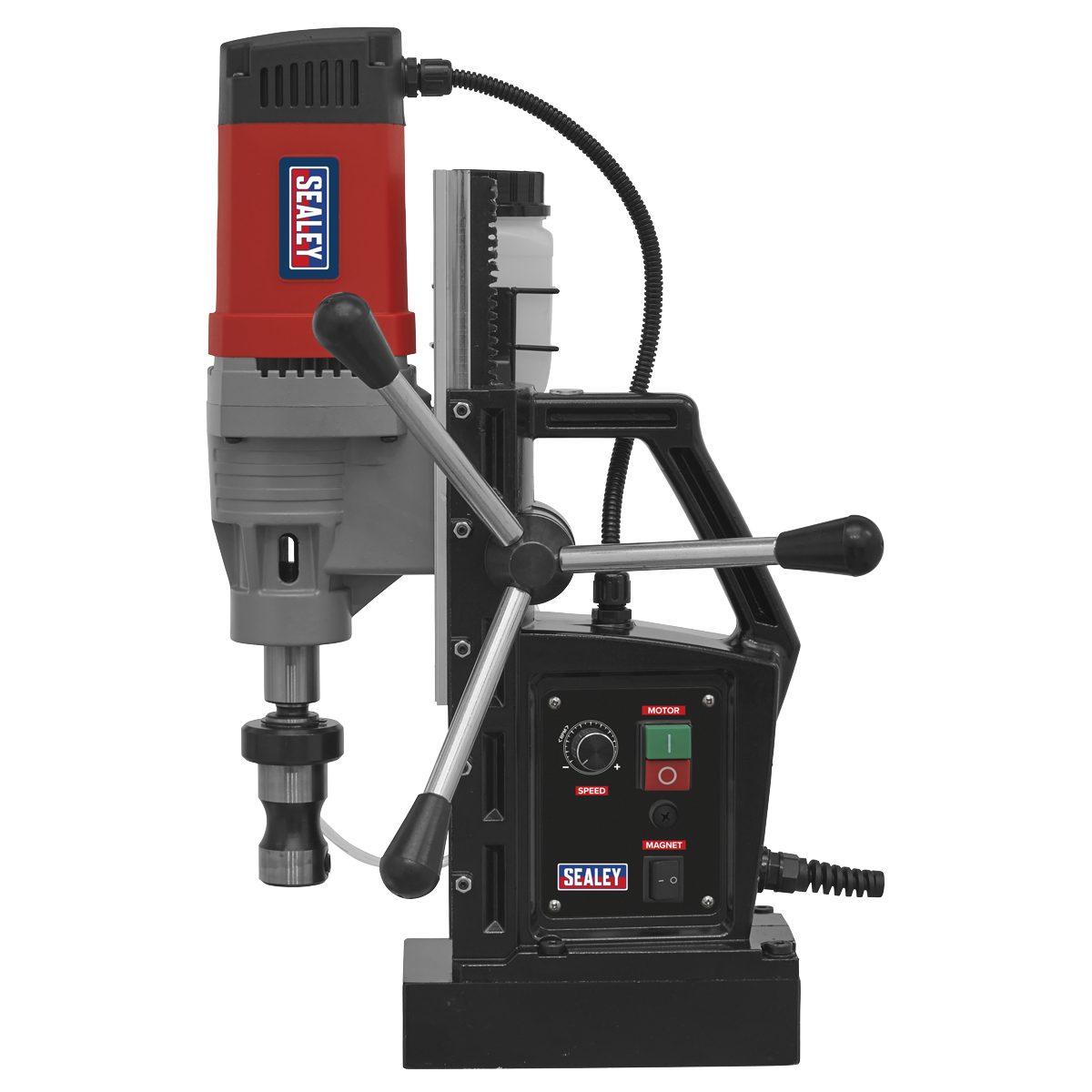

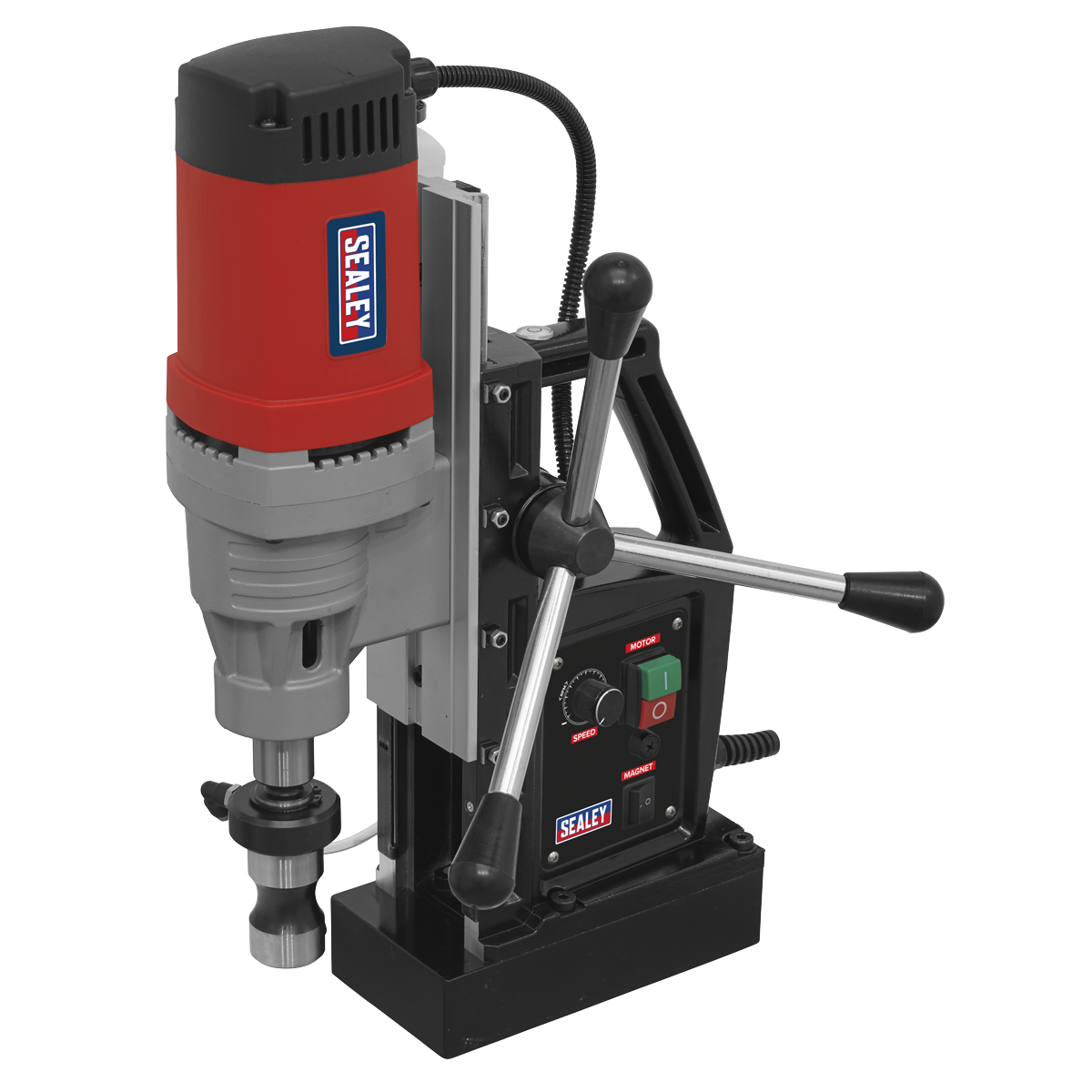

Drilling precise holes in ferrous metal on-site or in fabrication environments presents serious challenges conventional pillar drills cannot reach structural steel, and standard drills lack the power and stability for large-diameter core cutting. The Sealey MAG60230V Magnetic Drilling Machine tackles this directly, using a powerful 15800N magnetic base to adhere securely to ferrous metal surfaces at any angle, eliminating the need for clamping or fixed workbenches. Built from heavy-duty die-cast magnesium alloy, the machine houses a 1680W motor with a variable speed gearbox delivering 100-470rpm no-load speed, giving greater accuracy across a range of cutter sizes. It handles annular cutters up to 60mm diameter with a maximum cutting depth of 50mm via a Morse Taper MT2 arbor, and can also be used with a 16mm twist drill chuck. An integrated coolant system supports prolonged cutting, while the included safety fixing strap adds an additional layer of security during use. Designed for fabrication, construction, and ferrous metal drilling applications, this is a 230V machine suited to professional site and workshop environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MAG60230V |
|---|---|
| Brand | Sealey |
| Magnet Adhesion | 15800N |
| Maximum Annular Cutter Capacity | 60mm |
| Maximum Cutter Depth | 50mm |
| Motor Power | 1680W |
| Nett Weight | 21.6kg |
| No-Load Speed | 100-470rpm |
| Core Drill Diameter | 60mm |
| Power Supply | 220V - 50Hz |
| Motor Power | 1680W |
| Magnetic Adhesion | 15800N |
| No-Load Speed | 100-470rpm |
| Cutting Depth | 50mm |
| Morse Taper | MT2 |
| Stroke Length | 210mm |
| Supply | 230V~50Hz |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey CP18VLD Cordless Hammer Drill/Driver 10mm 18V 1.5Ah Li-ion 2-Speed
£90.24
£88.47
2% OFF
Free delivery in UK Mainland
|
Sealey MAG230V Magnetic Drilling Machine 35mm 230V 1500W
£398.03
£390.23
2% OFF
Free delivery in UK Mainland
|
Draper 56404 230V SDS+ Rotary Hammer Drill, 1500W, 4.9kg
£77.29
£75.77
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CP18VLD | MAG230V | 20229 | 62880 | 66090 | 56404 |
| Brand | Sealey | Sealey | ||||
| Length (mm) | 10 | 35 | 12 | 35 | 32 | |
| Model No | CP18VLD | MAG230V | ||||
| Voltage (V) | 18 | 230 | 230 | |||
| Weight (kg) | 2.3 | 10 | 4.9 | |||
A. The MAG60230V accepts annular cutters up to 60mm diameter with a maximum cutting depth of 50mm.
A. The magnetic base provides an adhesion force of 15800N, allowing the machine to adhere securely to ferrous metal surfaces at any angle.
A. The motor produces 1680W of power.
A. The no-load speed range is 100-470rpm, controlled via a variable speed gearbox.
A. Yes, the MAG60230V can be used with a 16mm twist drill chuck in addition to annular cutters.
A. The machine uses a Morse Taper MT2 arbor.
A. The MAG60230V is designed for use when drilling ferrous metal, and is suited to fabrication and construction applications.
A. Yes, the machine includes an integrated coolant system to support prolonged cutting operations.
A. Yes. Available variants in this range include MAG110V, MAG230V, MAG60110V, and MAG60230VHD, which differ in voltage supply or capacity specification. Contact Parts for Machines to confirm which variant suits your requirements.
