Product Number: 99568

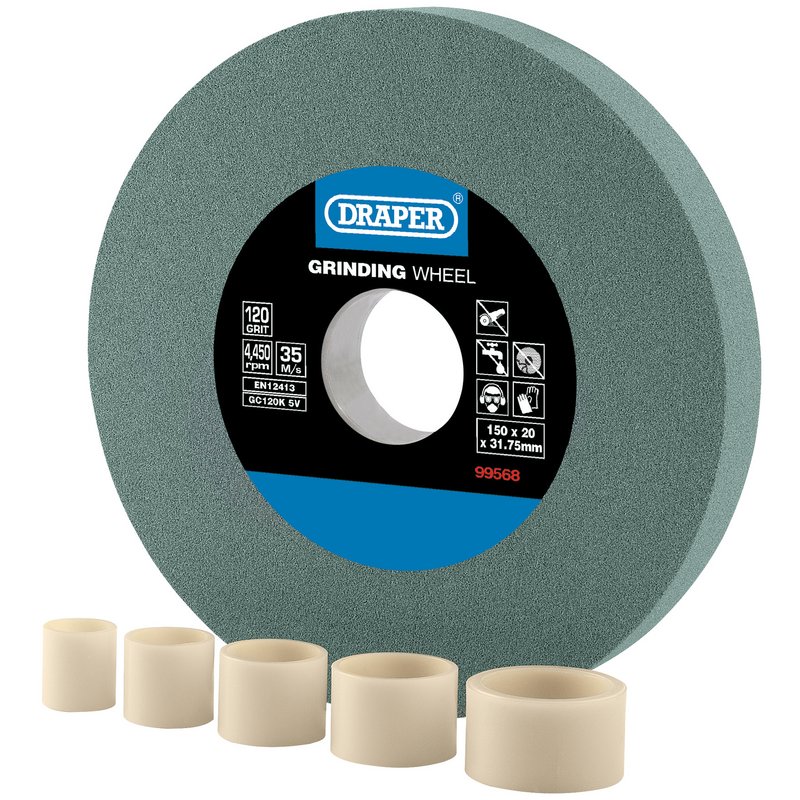

Bench grinding wheels intended for sharpening tungsten carbide tip tools and grinding non-ferrous metals demand a harder, more aggressive abrasive than standard aluminium oxide — and this is where silicon carbide construction becomes essential. The Draper 99568 silicon carbide bench grinding wheel delivers precisely that, combining a hard-wearing abrasive matrix with an ultra-fine 120 grit rating suitable for refined sharpening and finishing work on TCT tooling and non-ferrous alloys. Dry-cutting use only. The wheel operates at a maximum speed of 4,450rpm with a surface speed rating of 35 metres per second, and carries an approved abrasive wheel marking code of GC 120K 5V. Wheel hardness is rated M and the wheel conforms to EN12413, the European standard governing safety requirements for bonded abrasive products. Measuring 150mm in diameter and 20mm in thickness, the wheel is manufactured with a 31.75mm bore and is supplied with five reduction rings — sized 25.40mm, 22.23mm, 19.05mm, 15.90mm, and 12.70mm — enabling fitment to most bench grinders with a bore between 12.7mm and 31.75mm. The wheel is confirmed compatible with Draper bench grinders featuring a 19mm or 20mm wheel face. Nett weight is 0.68kg.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Abracs Multi-Purpose 3 in 1 Cut/Grind Discs, 115 x2.5 x 22mm - Pack of 25, HY11525DM
£43.81
£42.95
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 99566 | 99567 | 99569 | HY11525DM | 94793 |
| Type | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel | Grinding Disc/Wheel |
| Size | 20mm | 20mm | 20mm | 22mm | 23mm |
| Material | Multi-material | ||||
| Bore | 20mm | 20mm | 20mm | 22mm | 22.23mm |
| Pack Qty | 25 | ||||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Suitable For | Metal | ||||
| Show More | |||||
A. The wheel is suitable for sharpening tungsten carbide tip (TCT) tools and for grinding non-ferrous metals including alloys. It is intended for dry-cutting use only and is not designed for use on ferrous metals.
A. The Draper 99568 is rated at 120 grit, classified as ultra-fine, which makes it well suited to the refined edge work required when sharpening TCT and similar carbide-tipped tooling.
A. The wheel is rated to a maximum speed of 4,450rpm and a surface speed of 35 metres per second. These limits must not be exceeded during use.
A. The wheel is manufactured with a 31.75mm bore and is supplied with five reduction rings (25.40mm, 22.23mm, 19.05mm, 15.90mm, and 12.70mm), allowing it to fit most bench grinders with a bore size between 12.7mm and 31.75mm. It is confirmed compatible with Draper bench grinders featuring a 19mm or 20mm wheel face.
A. The wheel conforms to EN12413, the European standard covering safety requirements for bonded abrasive products. Its approved abrasive wheel marking code is GC 120K 5V.
A. The wheel measures 150mm in diameter and 20mm in thickness, with a 31.75mm bore. Wheel hardness is rated M and nett weight is 0.68kg.
