Product Number: 02-018
The CCL 02-018 is a 12V mini changeover relay with integrated diode protection, designed for use in automotive, commercial vehicle, and machine electrical systems where circuit switching reliability and back-EMF suppression are required. Carrying five 6.3 mm terminals in a compact mini-relay footprint, it is suited to installations where space is at a premium without compromise to electrical performance.
The relay is rated for a continuous load of 40 A on the normally-open circuit and 30 A on the normally-closed circuit, with peak load capacities of 80 A and 60 A respectively. The built-in diode provides protection against voltage spikes caused by inductive loads - a critical safeguard when switching motors, solenoids, and similar components that can generate damaging back-EMF on de-energisation.

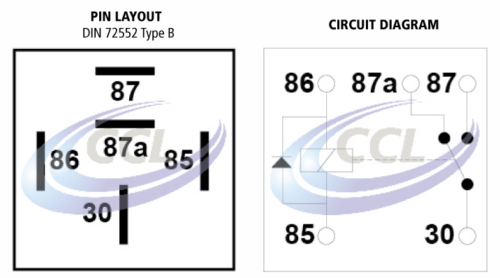

The five-terminal configuration supports full changeover switching, allowing a single relay to control two separate output circuits from one input signal. This makes the CCL 02-018 well suited to auxiliary lighting circuits, fan controls, horn systems, and similar 12V vehicle and plant electrical applications. The 6.3 mm blade terminal format is widely compatible with standard automotive relay connector bases and wiring harnesses.
As a standalone 12V general replacement relay, the CCL 02-018 can be installed directly into existing relay sockets or wired into new loom assemblies. No vehicle-specific fitment data is held for this product; suitability should be confirmed against circuit voltage, load rating, and terminal configuration requirements before installation.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Mini Relay with Diode protection. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED / SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| PEAK LOAD (CLOSED / SWITCHED) | 60A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 5 x 6.3mm` |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-018B |
A. The 02-018 is rated at 40 A continuous on the normally-open circuit and 30 A continuous on the normally-closed circuit. Peak load ratings are 80 A and 60 A respectively.
A. The relay has five terminals, each measuring 6.3 mm. This is a standard automotive blade terminal size compatible with widely available relay bases and connector housings.
A. The integrated diode suppresses voltage spikes generated when inductive loads — such as motors or solenoids — are de-energised. This back-EMF protection helps prevent damage to other components connected to the same circuit.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
