Product Number: 02-017
The CCL 02-017 is a 12V normally open twin output (twin contact) mini relay designed for vehicle electrical systems requiring dual-circuit switching from a single relay unit. With five 6.3 mm terminals, the 02-017 provides a compact and straightforward installation footprint suitable for a wide range of 12-volt automotive, commercial vehicle, and plant electrical applications.
The relay operates as a normally open (open contact) device, meaning both output circuits are inactive until the relay coil is energised. Each of the twin contacts supports a continuous load of 25 A and a peak load of 50 A, giving a combined continuous switching capacity of 2 x 25 A and a combined peak capacity of 2 x 50 A. This makes the 02-017 well suited to powering accessories, ancillary circuits, or duplicate loads where simultaneous dual-channel switching is required.

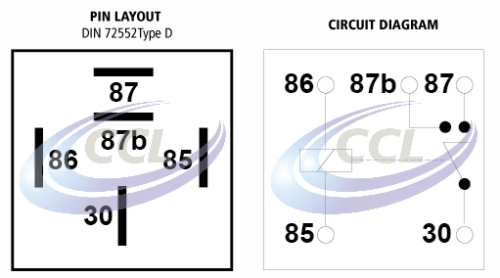

Five 6.3 mm push-on terminals provide connection to the coil supply, coil ground, common, and the two switched outputs. The open-contact configuration ensures both output circuits remain de-energised in the absence of a trigger signal, reducing the risk of unintended activation in safety-sensitive wiring schemes.
The trust line: the CCL 02-017 is supplied as a standalone relay unit. No vehicle fitment summary is available for this SKU; please confirm suitability against your application wiring requirements before ordering.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin normally open contact twin output twin contact Mini Relay. |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD | 2 x 25A |
| PEAK LOAD | 2 x 50A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-017B |
A. The 02-017 is a normally open (open contact) relay. Both output circuits remain open and inactive until the relay coil is energised, at which point both contacts close simultaneously.
A. Each of the two output contacts is rated at 25 A continuous and 50 A peak, giving a combined rating of 2 x 25 A continuous and 2 x 50 A peak.
A. The 02-017 has five terminals, each accepting a standard 6.3 mm push-on connector.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
