Product Number: 02-016B
The CCL 02-016B is a 12V, 5-pin changeover relay with a moulded bracket, designed for switching and circuit-control duties in automotive and vehicle electrical systems. Supplied as a compact mini relay, it offers a practical general-purpose solution where a changeover function is required alongside secure, bracket-mounted installation.
The relay operates at 12V and provides a continuous load rating of 40A on the normally open circuit and 30A on the normally closed circuit. Peak load capacity reaches 80A on the open circuit and 60A on the closed circuit. All five connections are made via 6.3mm blade terminals, a widely used standard in vehicle wiring applications. The integrated moulded bracket allows the relay to be securely mounted within a panel or loom assembly without the need for additional hardware.

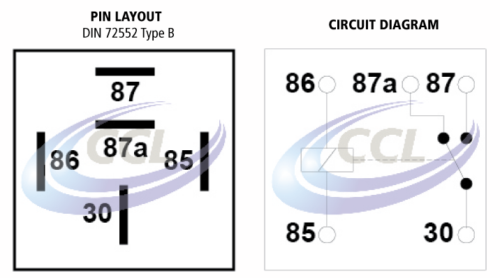

The changeover configuration makes this relay suitable for applications where a single switching event must simultaneously open one circuit and close another - a common requirement in vehicle auxiliary wiring, lighting control, and load management. The 5-pin layout provides the full complement of connections needed for changeover operation: coil positive, coil negative, common, normally open, and normally closed.
This relay is a standalone replacement part. For alternative CCL relay specifications and related switching components, refer to the broader CCL relay range available on PartsForMachines.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Voltage | 12V |
|---|---|
| Continuous (Open / Closed) | 40A / 30A |
| Peak (Open / Closed) | 80A / 60A |
| Operation Life | 100,000 Operations At 40A |
| Contact Material | Agsn02 |
| Output Contact | 2 (No 87 & 87A) |
| Terminal Sizes | 5 X 6.3Mm |
| Ambient Temperature | -40°C To +85°C |
| Case Material | Pa66 |
| Bracket Type | Moulded Plastic |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Mini Relay - 5 Pin, Changeover, 12V, CCL - 02-016B
|
Open Now |
Standard Delivery: £2.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-016 |
A. The CCL 02-016B operates at 12V. It has a continuous load rating of 40A on the normally open circuit and 30A on the normally closed circuit. Peak load ratings are 80A (open circuit) and 60A (closed circuit).
A. The relay has 5 pins, all using 6.3mm blade terminals. This configuration provides connections for coil positive, coil negative, common, normally open, and normally closed circuits.
A. Yes. The relay features an integrated moulded bracket, allowing secure panel or loom mounting without requiring separate bracket hardware.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
