Product Number: 02-016
The CCL 02-016 is a 5-pin, 12V changeover mini relay designed for switching electrical circuits in automotive and light commercial applications. With a compact form factor suited to modern vehicle electrical systems, it provides reliable circuit control where a changeover function is required - connecting or disconnecting loads between two separate output circuits from a single input signal.

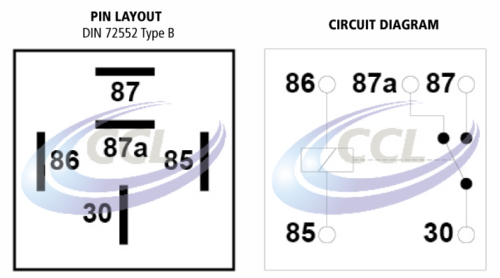

The relay is rated for a continuous load of 40A on the normally open circuit and 30A on the normally closed circuit, with peak load capacities of 80A and 60A respectively. All five terminals are 6.3mm blade type, ensuring compatibility with standard automotive relay bases and wiring harnesses.
With its 12V operating voltage, the CCL 02-016 is suited to the electrical architecture of 12V vehicles and equipment. The 5-pin changeover configuration distinguishes it from single-pole single-throw relays, making it the correct choice for applications requiring either circuit selection or fail-safe switching between two loads.
For those requiring additional configurations, CCL produces a range of mini relays covering varying pin counts, contact arrangements, and load ratings - check the CCL relay programme for sibling products where applicable.
Manufactured by CCL, the 02-016 is supplied as a single relay unit. Refer to the product listing for warranty details.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| TYPE | 5 Pin changeover Mini Relay |
|---|---|
| VOLTAGE | 12V |
| CONTINUOUS LOAD (OPEN) | 40A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 30A |
| PEAK LOAD (OPEN) | 80A |
| CONTINUOUS LOAD (CLOSED/SWITCHED) | 60A |
| BRACKET TYPE | None |
| TERMINAL SIZES | 5 x 6.3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | 02-016B |
A. The 02-016 is rated for a continuous load of 40A on the normally open circuit and 30A on the normally closed circuit. Peak load ratings are 80A (normally open) and 60A (normally closed).
A. The relay is fitted with 5 x 6.3mm blade terminals, compatible with standard automotive relay bases and wiring connectors.
A. The CCL 02-016 is a 12V relay, designed for use in 12-volt electrical systems.
A. Yes. Every vehicle and OE cross-reference shown for this part is checked against manufacturer data and backed by our Fit Guarantee. If it is not right, our Fit Guarantee or hassle-free returns have you covered.
