Product Number: 10484

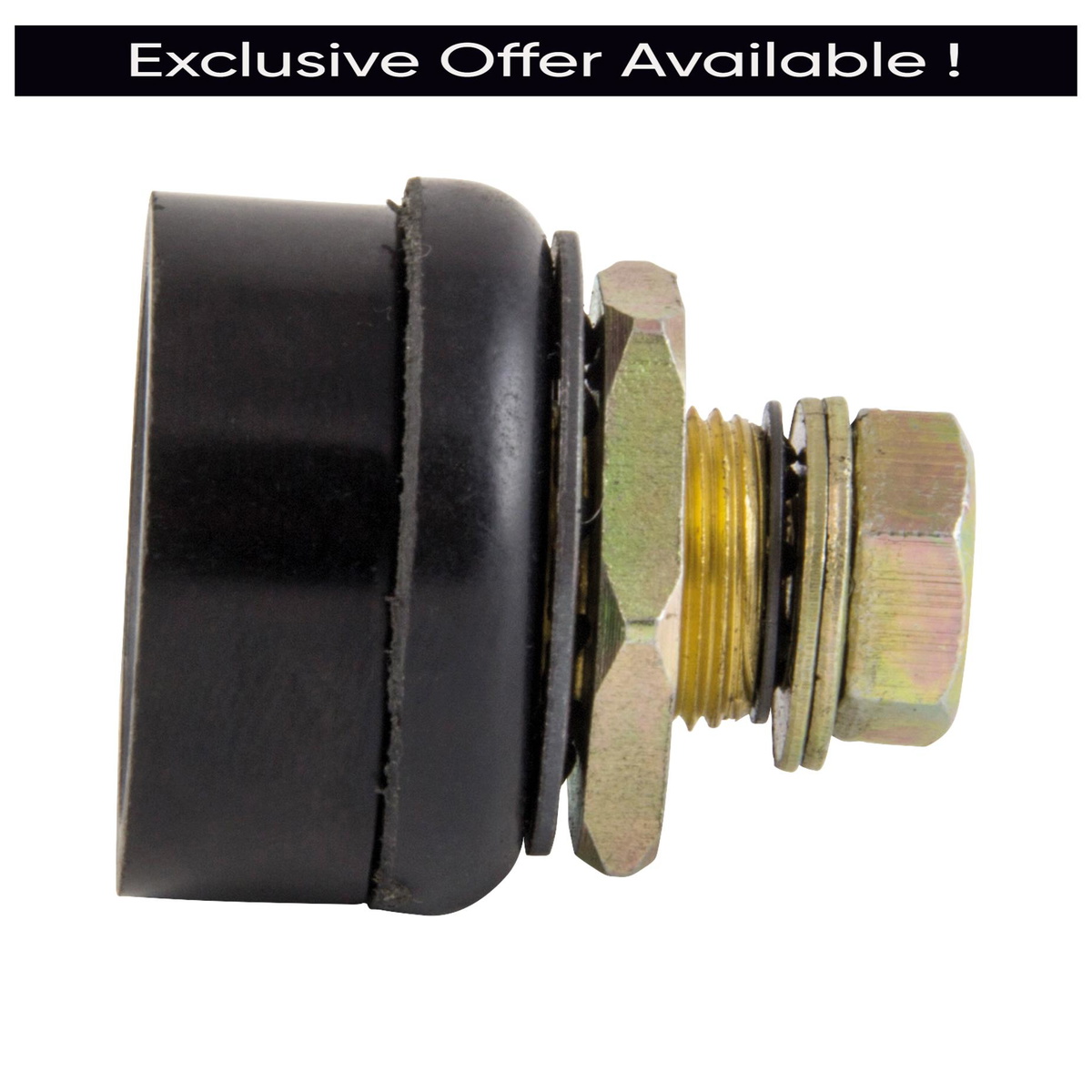

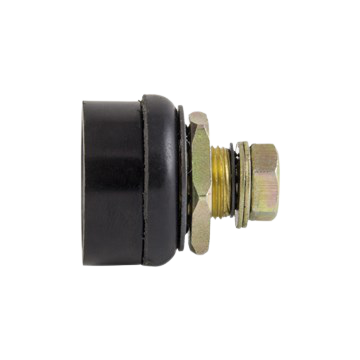

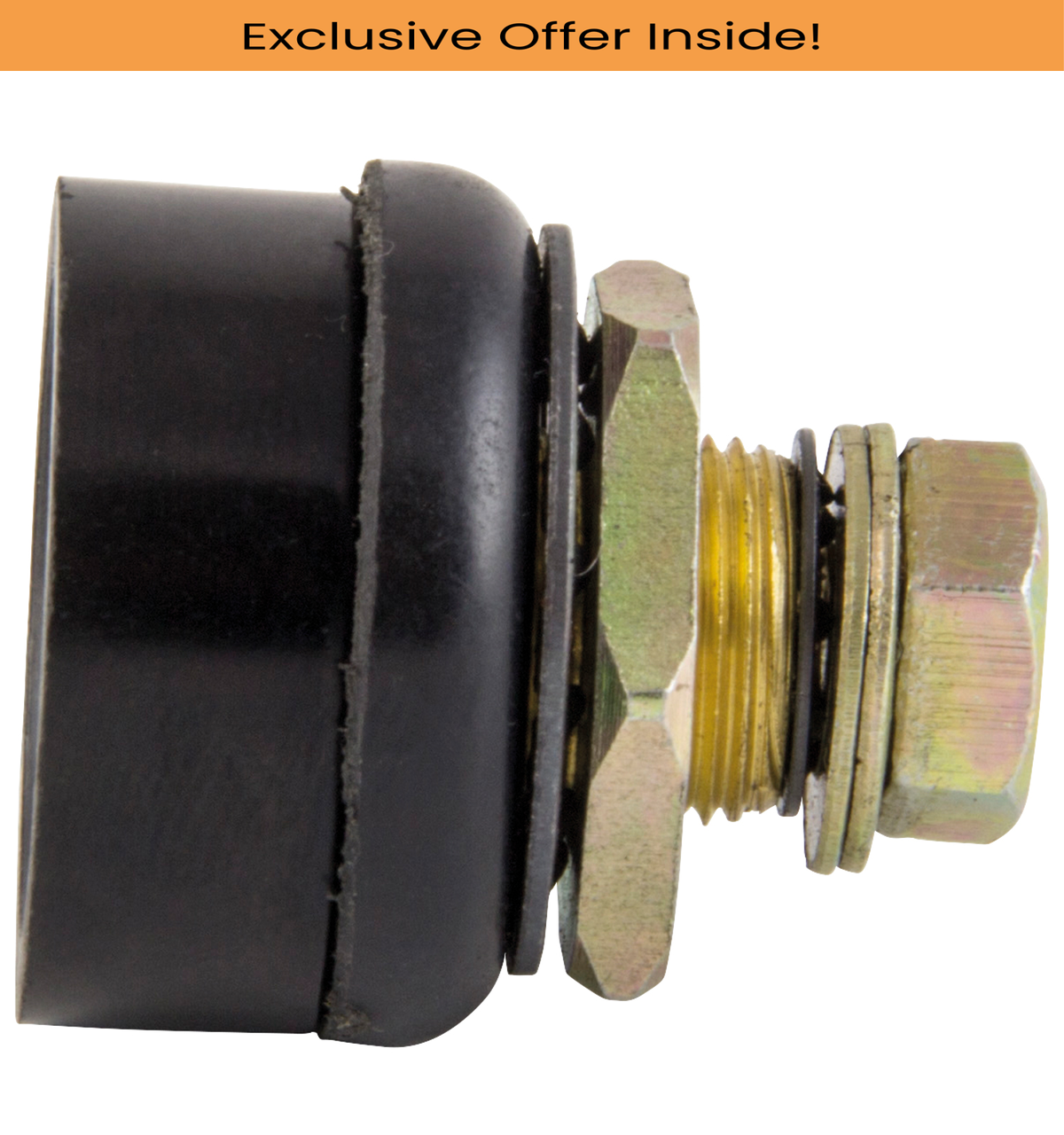

The SIP 10484 is a 315A Dinse-type panel-mounted socket for welding cable assemblies and machine connections. Dinse connectors provide a low-resistance, secure connection for welding current — correct fitment is essential for arc stability and cable longevity. Rated at 315A continuous welding current. Match the Dinse plug size to your cable cross-section and machine socket specification. Also found under welding cable connector, dinse socket in the PartsForMachines.com welding range.
Additional Information:
The SIP 315A Dinse Panel-Mounted Socket is designed for Welding torches, and offers complete compatibility with other SIP torch spares. Reference your SIP manual for further information.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 10484 |
|---|---|
| Amperage | 315A |
| Min. Cable Size | 35mm² |
| Max. Cable Size | 50mm² |
| Cut-Out Panel | 20mm |
| Outside Diameter | 42mm |
| Pack Height (mm) | TBC |
| Pack Width (mm) | TBC |
| Pack Depth (mm) | TBC |
| Pack Gross (g) | 500 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
05717 | SIP 05717 HG2001DV PFC ARC Inverter Welder, Input Supply - 110V, Single Phase, Output Current - 120A | 1 Unit |
£254.46
£249.47
|
Add |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02676 | 02711 | 01062 | 08169 | 09699 |
A. The SIP 10484 is rated at 315A continuous welding current. Ensure this matches or exceeds your machine's output rating before ordering.
A. Dinse connectors provide a standardised, low-resistance bayonet connection for welding electrode leads and earth cables. They are the most common connection type on inverter and transformer welding machines.
A. Dinse connectors come in 10-25, 35-50, and larger sizes, rated for different current levels. The 10-25 size suits leads up to 200A; 35-50 suits up to 400A. Match connector size to your cable rating and machine socket specification.
A. Insert the Dinse plug into the matching socket and rotate approximately 30–45° to lock in the bayonet groove. The connection is secure when you feel it click or seat firmly. A loose connection causes arcing at the socket and overheating.
A. No — Dinse connector sizes are not interchangeable. A 10-25 plug will not seat or lock in a 35-50 socket. Always match plug and socket size exactly.
A. Inspect regularly for pitting, arcing marks, or loose fit. Clean with fine emery cloth if contact surfaces show oxidation. Replace if the locking mechanism is worn — a loose Dinse connection causes arc problems that are often mistaken for machine faults.
A. Dinse connectors are used on most modern inverter and multi-process welding machines across all major brands — SIP, Sealey, Draper, Clarke, CROSARC, and TIGREN all use Dinse-type sockets. Confirm the socket size before ordering.
A. Check your machine's socket markings or manual. 10-25 sockets are typically labelled for cables up to 25mm²; 35-50 sockets for cables up to 50mm². The socket size should match the rated output current.
A. At minimum you need a welding helmet or headshield (auto-darkening recommended), leather welding gauntlets, a fire-resistant apron or jacket, and steel-toe boots. For enclosed spaces, a fume extractor or respirator is essential. A welding curtain or screen protects bystanders from UV flash. Keep a fire extinguisher accessible.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
