Product Number: S6988

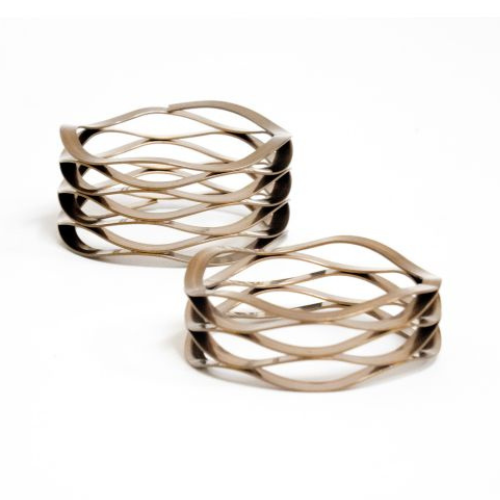

Multi-coil wave springs are manufactured from flat spring material and are ideal for applications requiring a low mounting dimension. Compared to conventional round wire springs, both the total length and working height of a multi-coil wave spring are reduced offering up to a 50% decrease in mounting space.
The standard product range has been developed to meet the majority of common application needs. However, if none of the standard options are suitable, we can offer a bespoke solution. This includes not only custom dimensions but also alternative material types.
| Material | 1.4568 (17-7PH) |
|---|---|
| Hole Diameter (A) | 12.7 mm |
| Rod Diameter (B) | 8 mm |
| Free Length (FL) | 15 mm |
| Compressed Length (CL) | 6 mm |
| Spring Rate (R) | 4.5 |
| Spring Force (FN) | 41 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Wave Spring - Spring Rate 4.5
, Spring Force 41, Metrol - S6988
|
