Product Number: 4244
Variations

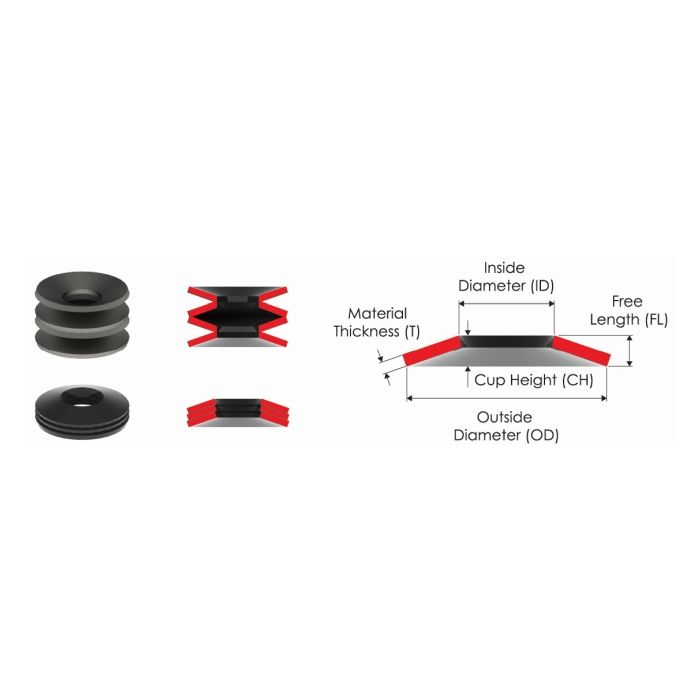

Disc Spring - DIN2093 - 10X5,2X0,25.
| F 100% | 62,6 N |
|---|---|
| F 25% | 30,4 N |
| F 50% | 48,2 N |
| F 75% | 57,5 N |
| FL | 0,55 mm |
| h0 | 0,3 mm |
| h0/t | 1,2 mm |
| ID | 5,2 mm |
| Material | CK67/51CrV4 |
| OD | 10 mm |
| s 100% | 0,3 mm |
| s 25% | 0,075 mm |
| s 50% | 0,15 mm |
| s 75% | 0,225 mm |
| Surface | Shot peened, phosphated, blackened and oiled |
| T | 0,25 mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 4239 | 4241 | 4242 | 4232 | 4234 |
| Type | Disc Spring | Disc Spring | Disc Spring | Disc Spring | Disc Spring |
| Size | 10mm | 10mm | 10mm | 8mm | 8mm |
| Inner Diameter | 3.2mm | 4.2mm | 4.2mm | 3.2mm | 3.2mm |
| Outer Diameter | 10mm | 10mm | 10mm | 8mm | 8mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
| Thickness | 0.4mm | 0.4mm | 0.5mm | 0.3mm | 0.4mm |
A. Metrol’s technical team offers expert support to help identify the right disc springs for your specific application needs.
A. Metrol offers high-quality unalloyed steel disc springs with stacking versatility, ideal for high-force, space-limited applications across various industries.
