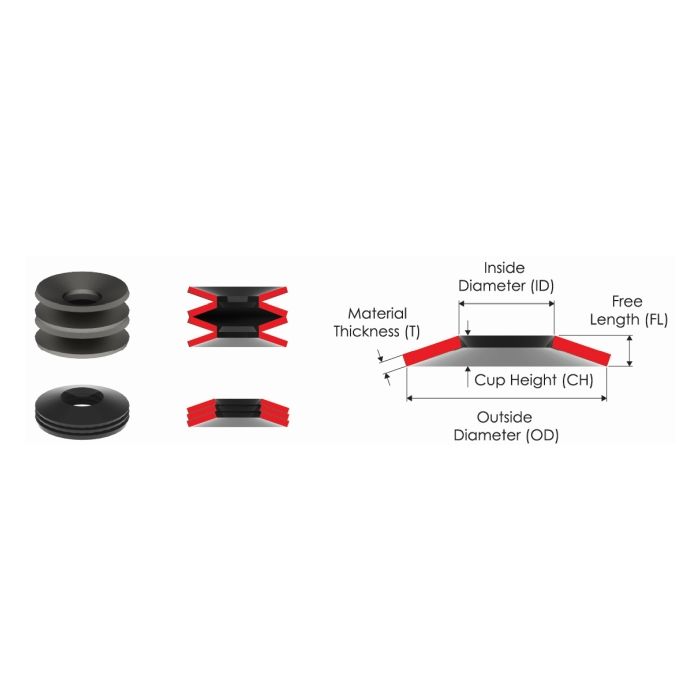

Disc Spring - DIN2093 - Outer Diameter 10mm, Inner Diameter 4,2mm, Material Thickness 0,4mm, Metrol - 4241

Product Number: 4241

£5.51 £5.40

BUY NOW

ADD TO CART

Disc Spring - DIN2093 - 10X4,2X0,4.

BUY NOW

ADD TO CART

F 100%	231,8 N
F 25%	79,3 N
F 50%	140,3 N
F 75%	189,1 N
FL	0,7 mm
h0	0,3 mm
h0/t	0,75 mm
ID	4,2 mm
Material	CK67/51CrV4
OD	10 mm
s 100%	0,3 mm
s 25%	0,075 mm
s 50%	0,15 mm
s 75%	0,225 mm
Surface	Shot peened, phosphated, blackened and oiled
T	0,4 mm
