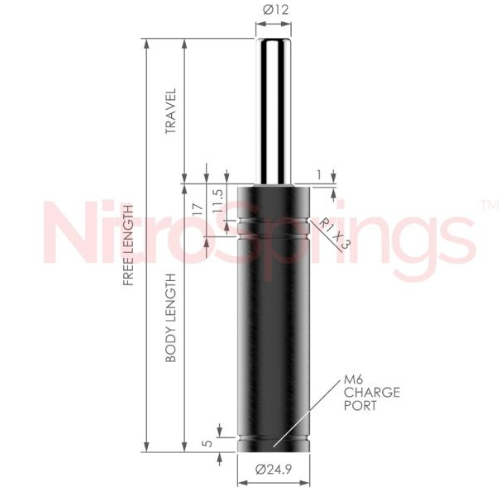

Product Number: NG1-XXX-016_A10
Variations
| Body Length | 55mm |
|---|---|
| Body Thread | M16x1.5 |
| Certification | ISO 9001;2015, PED 2014/68/EU |
| Charge Port | M6x1 |
| Free Length | 65mm |
| Mounting Options | Threaded Pocket |
| Outside Dia. | 12mm |
| Piston Dia. | 6mm |
| Tapped Hole Depth | 5mm |
| Travel | 10mm |
| Intial Force | 16mm |
| Max Force | 1000N |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Compression Spring with End Support - Travel 16mm, Initial Force 1000N, Max Force 1532N, Metrol - NG1-XXX-016
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Compression Spring - Travel 40mm, Intial Force 230N, Max Force 390N, Metrol - MNE24-XXX-040
£118.16
£115.84
2% OFF
|
||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MNE16-1.5-XXX-060_A2 | NG1-XXX-080_A10 | NG0-XXX-010_A6 | NG1-XXX-010_A7 | NG1-XXX-016_A6 | NG1-XXX-100_A4 | NG0-XXX-025_A4 | MNE16-2-XXX-080_A3 | MNE16-2-XXX-060_A2 | MNE24-XXX-040_A1 | NG0-XXX-007_A3 | NG1-XXX-125_A8 | NG1-XXX-100_A8 | NG1-XXX-038_A3 | MNE16-1.5-XXX-010_A3 |
| Type | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring | Compression Spring |
| Size | 60mm | 80mm | 10mm | 10mm | 16mm | 100mm | 25mm | 80mm | 60mm | 40mm | 7mm | 125mm | 100mm | 38mm | 10mm |
| Load | 110N | 1000N | 700N | 2000N | 1500N | 1000N | 500N | 210N | 110N | 230N | 500N | 2000N | 2000N | 1000N | 210N |
| Size Range | 51-100mm | 51-100mm | Up to 10mm | Up to 10mm | 11-25mm | 51-100mm | 11-25mm | 51-100mm | 51-100mm | 26-50mm | Up to 10mm | 101-200mm | 51-100mm | 26-50mm | Up to 10mm |
A. Compression springs are helical coils that compress under force to provide a push motion, ideal for shock absorption and high-stress applications.
A. Yes, Metrol offers five types of compression springs—standard, conical, custom coil, and stainless steel—with filters for length, pitch, diameter, and material.
A. Choose based on temperature tolerance and application—Metrol offers unalloyed and stainless spring steel, with shot-peening on 2mm wire for added fatigue resistance.
A. Compression springs are widely used across industries like automotive, rail, robotics, and electronics, as well as in everyday items like pens, locks, and battery holders.
