Product Number: 2118-145F-20

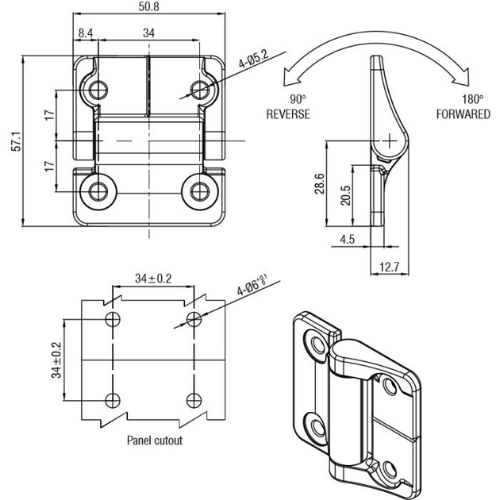

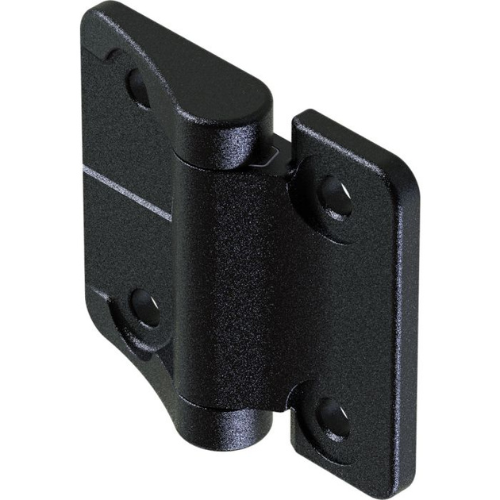

The 2118-145F-20 is a screw-on asymmetric friction torque hinge finished in black textured powder coat, measuring 50.8 x 57.1 mm. Constructed with a die cast zinc body with a stainless steel SS316 pin, it is designed for applications demanding reliable, controlled rotational resistance.
The unhanded orientation means the hinge can be fitted without concern for left or right side designation, simplifying installation across a range of enclosures, panels, and access covers. The 5.2 mm through holes accept standard fasteners for direct screw-in mounting, and the black textured powder coat finish provides both a clean aesthetic and surface protection.

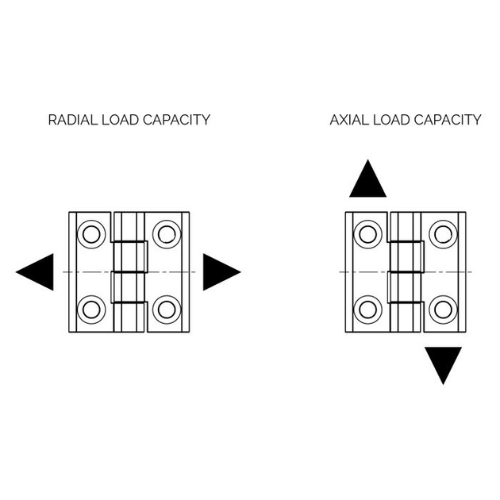

Load capacity is a defining characteristic of this hinge: it is rated to 575 kg axial load and 373 kg radial load per hinge, making it well suited to heavy-duty panel or door applications where structural integrity and friction positioning are required simultaneously.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Textured Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 50.8 × 57.1 mm |
| Axial Load Capacity | 575 kg per hinge |
| Radial Load Capacity | 373 kg per hinge |
| Model | 2120 |
| Torque | 4.5 Forward, 2.7N Reverse |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Asymmetric Friction Hinge with 5.2mm Holes, Black Texture Powder Coated Finish, Size 50.8x57.1mm, Torque 4.5 Forward, 2.7N Reverse, Metrol - 2118-145F-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2118-100-20 | 2118-114R-20 | 2118-118-20 | 2118-120R-20 | 2118-123F-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 5.2mm | 50.8x57.1mm | 5.2mm | 50.8x57.1mm | 50.8x57.1mm |
| Load | 3N | 4N | 4N | ||
| Size Range | Up to 10mm | Up to 10mm | |||
A. The hinge body is constructed from die cast zinc alloy, with a stainless steel SS316 pin for corrosion resistance and durability.
A. The 2118-145F-20 measures 50.8 x 57.1 mm.
A. The 2118-145F-20 is rated to an axial load capacity of 575 kg per hinge and a radial load capacity of 373 kg per hinge.
A. No. The 2118-145F-20 has an unhanded orientation, meaning it can be installed on either side without affecting performance.
A. The hinge features 5.2 mm through holes for screw-on mounting.
A. It is finished in black textured powder coat, providing both a clean appearance and surface protection.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
