Product Number: 2206-20
The 2206 series Lift Off Hinge (SKU: 2206-20) is a 90x12mm M5 hinge finished in black textured powder coat, constructed in die cast zinc with a mild steel zinc-plated body and stainless steel cover and pin. The lift-off design allows panels, doors or lids to be removed without tools by simply lifting the leaf free of the pin, making it well suited to enclosures, access covers and equipment cabinets that require regular removal.
The 2206 is unhanded, meaning it can be fitted on either the left or right side without modification. The die cast zinc alloy construction delivers a robust, corrosion-resistant body, while the stainless steel pin provides durability at the pivot point. Black textured powder coat provides a hard-wearing, consistent finish suited to industrial and commercial applications.

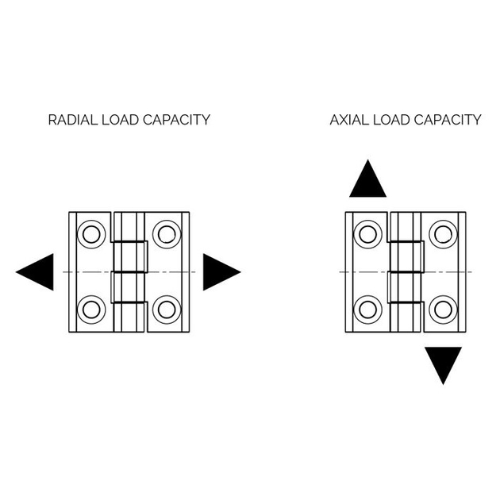

Load capacity is a notable characteristic of this hinge: it is rated to an axial load capacity of 577 kg per hinge and a radial load capacity of 229 kg per hinge, confirming its suitability for heavier-duty panel and door assemblies. The 90x12mm footprint keeps the profile compact relative to its load rating.
This hinge is also available in a bright chrome finish; refer to the relevant SKU on the product listing for the chrome variant.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Textured Powder Coated, Bright Chrome |
|---|---|
| Material | Die Cast Zinc Alloy |

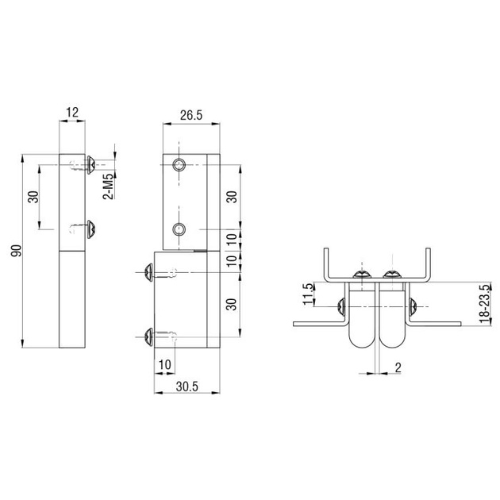

| Size | 90 × 12 mm |
| Axial Load Capacity | 577 kg per hinge |
| Radial Load Capacity | 229 kg per hinge |
| Model | 2206 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Lift Off Hinge with M5 Stud, Bright Chrome Finish, Size 90x12mm, Metrol - 2206-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2206-30 | 2217-760-316 | 2327-19-20 | 2201-500-10 | 2201-501-10 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 90x12mm | 76x12.4mm | 60x14mm | 63x15mm | 63x15mm |
| Material | Stainless steel | ||||
| Thread | M5 | ||||
A. The body is constructed from die cast zinc alloy. The body plate is mild steel zinc plated, the cover is stainless steel, and the pin is stainless steel.
A. The hinge is rated to an axial load capacity of 577 kg per hinge and a radial load capacity of 229 kg per hinge.
A. No. The 2206-20 is unhanded and can be fitted on either the left or right side without modification.
A. The 2206-20 is supplied in black textured powder coat. A bright chrome finish is also available in the 2206 range — refer to the relevant variant SKU on the product listing.
A. The hinge measures 90x12mm.
