Product Number: 1420-18047-316
Variations

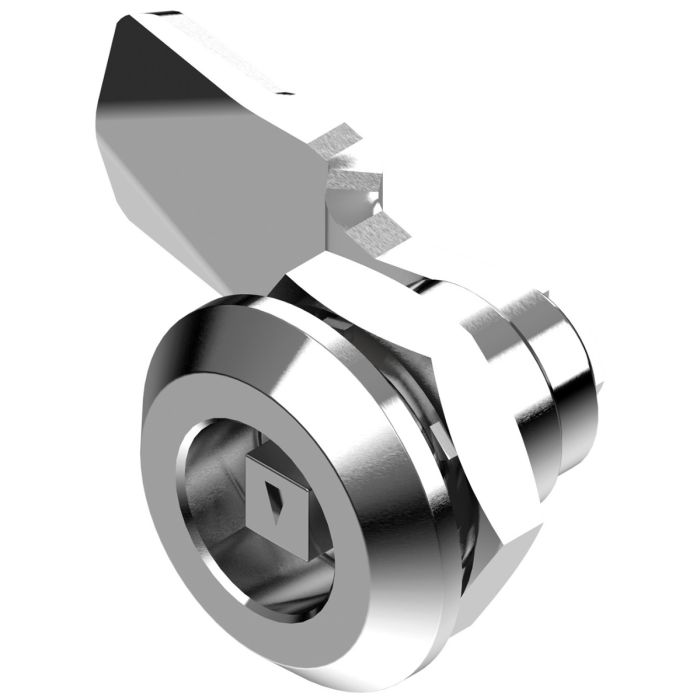

The Metrol 1420-18047-316 is a quarter turn lock from the 1420 series, specified in Grade 316 stainless steel with a polished finish. Designed for panel-mounted enclosure and cabinet applications, it accepts a 7mm square key drive and provides a secure, tool-operated quarter turn actuation mechanism.
Constructed from Stainless Steel 316, the lock offers a polished finish with inherent corrosion resistance suited to demanding environments. The barrel is 18mm, accommodating panel thicknesses from 1mm to 8mm via a 20.1 x 20.1mm panel cutout. The 1420 series carries a sealed IP65 rating, confirming resistance to dust ingress and low-pressure water jets.
A cam range is available for this model, allowing the operator to select the appropriate cam configuration for the specific panel assembly. The manufacturer is Metrol, and the model designation is 1420.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 7mm |
| Colour/Finish | Polished |
| Material | Stainless Steel 316 |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-037-20 | 1401-037-30 | 1401-037-316 | 1401-047-20 | 1401-047-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 7mm | 7mm | 7mm | 7mm | 7mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The lock uses a 7mm square key drive for quarter turn actuation.
A. The 1420-18047-316 accommodates panel thicknesses from 1mm to 8mm.
A. A panel cutout of 20.1 x 20.1mm is required for installation.
A. The barrel height is 18mm.
A. The 1420-18047-316 carries an IP65 ingress protection rating, indicating protection against dust and low-pressure water jets.
A. The lock is manufactured from Grade 316 stainless steel with a polished finish.
A. Yes — a range of cam options is available for the 1420 series. Contact us with your application details to confirm the correct cam for your assembly.
