Product Number: 1420-36047-20
Variations
The Metrol 1420-36047-20 is a quarter turn lock featuring a 7mm square drive and a 36mm barrel height, finished in black powder coat. Manufactured by Metrol under the Model 1420 series, it is constructed in die cast zinc and is suited to panel-mounting applications requiring a secure, tool-operated quarter turn fastening solution.

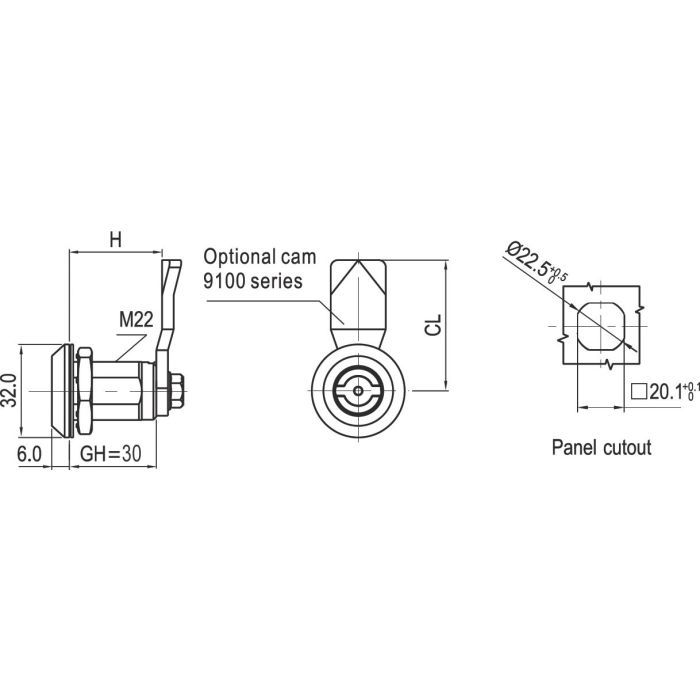

The lock accepts a 7mm square key and is rated IP65, making it appropriate for enclosures and cabinets where dust ingress or water splash resistance is required. The fixing aperture dimension is 20.1 x 20.1 mm, and the lock accommodates panel thicknesses from 1 mm to 22 mm, offering flexibility across a broad range of enclosure wall gauges. A range of cam configurations are supplied within the 1420 series.
The 1420-36 Quarter Turn Lock 7mm Square with 36mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 7mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 22mm |
| Barrel Height | 36mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-037-20 | 1401-037-30 | 1401-037-316 | 1401-047-20 | 1401-047-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 7mm | 7mm | 7mm | 7mm | 7mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The lock uses a 7mm square drive, operated with a matching square key.
A. The barrel height is 36mm.
A. The required panel cutout is 20.1 x 20.1 mm.
A. The lock accommodates panel thicknesses from 1 mm to 22 mm.
A. The 1420-36047-20 carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets.
A. The lock body is manufactured from die cast zinc alloy with a black powder coated finish.
A. Yes — a range of cam options is available within the Metrol 1420 series. Contact us to discuss suitability for your application.
