Product Number: 1402-300-20.107.5
The Metrol 1402 Non-Locking Mini Wing Quarter Turn Lock in black textured powder-coated finish (SKU: 1402-300-20.107.5) is a compact panel fastening solution with a 7.5mm barrel height, designed for industrial enclosures and equipment panels requiring a secure quarter-turn action without a locking mechanism.
Constructed from die-cast zinc alloy, the handle and housing are finished in black textured powder coat for durability and corrosion resistance. A mild steel zinc-plated cam is included as standard, providing a complete ready-to-fit assembly. The unit achieves IP65-grade weather sealing, making it suitable for environments where dust exclusion and water jet resistance are required.

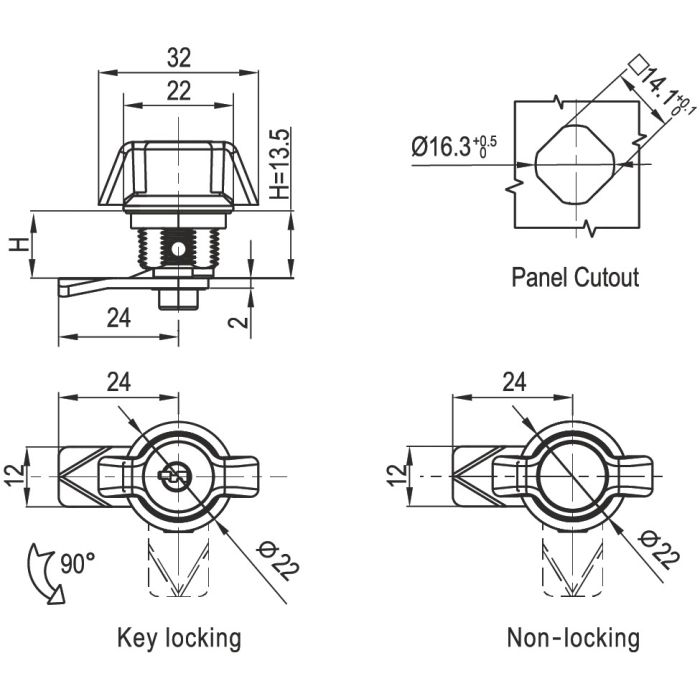

The 1402 accepts a panel cutout of 14.1 x 14.1 mm and accommodates panel thicknesses between 1 mm and 6 mm, offering compatibility with a wide range of light-gauge enclosure panels. The 7.5mm barrel height suits shallow-profile installations where space behind the panel face is limited.
The 1402 Non Locking Mini Wing Handle Quarter Turn Lock Black Textured Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Non Locking |
| Colour/Finish | Black Textured Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 14.1x14.1mm |
| Panel Thickness | 1 - 6mm |
| Barrel Height | 7.5mm |
| IP Rating | IP65 |
| Cam Option | Cam included |
| Model | 1402 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1402-310-20.107.5 | 1418-1-30.117.5 | 1401-037-20 | 1401-037-30 | 1401-037-316 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 7.5mm | 7.5mm | 7mm | 7mm | 7mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. Yes. The 1402 Non-Locking Mini Wing Quarter Turn Lock is supplied with a mild steel zinc-plated cam as standard, providing a complete ready-to-install unit.
A. The 1402 requires a square panel cutout of 14.1 x 14.1 mm and is compatible with panel thicknesses between 1 mm and 6 mm.
A. The Metrol 1402 carries an IP65 rating, indicating full dust-tight protection and resistance to water jets from any direction.
A. The handle and housing are manufactured from die-cast zinc alloy with a black textured powder-coated finish. The cam is mild steel with zinc plating.
A. This is a non-locking quarter turn lock. It uses a wing handle to secure the panel with a quarter-turn action but does not incorporate a key or cylinder locking mechanism.
A. The barrel height is 7.5 mm, making this variant suited to shallow panel installations where depth behind the panel face is restricted.
