Product Number: 1402-310-30.1019.5

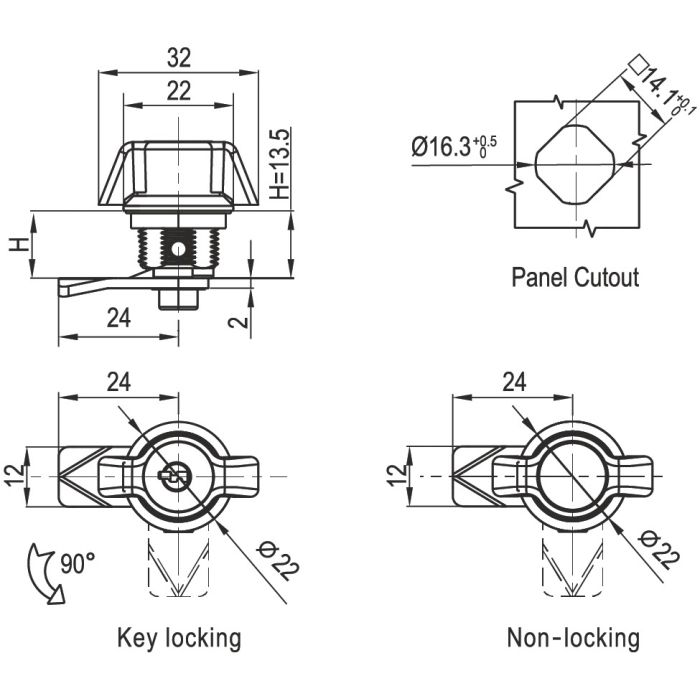

1402-310-30.1019.5 — the Metrol 1402 Key Locking Quarter Turn Lock in bright chrome finish is a compact, quarter-turn fastening solution designed for panel and enclosure applications requiring secure, key-controlled access. With a barrel height of 19.5 mm and a panel cutout of 14.1 x 14.1 mm, it is suited to panels between 1 mm and 6 mm in thickness.
The lock body and handle are constructed using zinc alloy die casting, finished in bright chrome. The cam profile is mild steel, zinc plated, and is included with the unit. The lock operates with the Key Locking 2233 system, with keys supplied as standard.
Rated to IP65, the 1402 offers a degree of protection against dust ingress and low-pressure water jets, making it appropriate for use in demanding workshop and industrial enclosure environments. The square panel cutout keeps installation straightforward.
The 1402 Key Locking 2233 Mini Wing Handle Quarter Turn Lock Bright Chrome is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 2233 (Keys supplied) |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 14.1x14.1mm |
| Panel Thickness | 1 - 6mm |
| Barrel Height | 19.5mm |
| IP Rating | IP65 |
| Cam Option | Cam included |
| Model | 1402 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1301 Non Locking T Handle Lock with 18mm Grip Height Black Textured Powder Coated
£11.74
£11.51
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1301-00-20 | 1301-00-30 | 1301-00-316 | 1301-10-20 | 1301-10-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 18mm | 18mm | 18mm | 18mm | 18mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The 1402 uses the Key Locking 2233 system. Keys are supplied as standard with the lock.
A. The panel cutout required is 14.1 x 14.1 mm. The lock is compatible with panel thicknesses from 1 mm to 6 mm.
A. The barrel height is 19.5 mm.
A. The handle and housing are die cast zinc alloy with a bright chrome finish. The cam is mild steel with a zinc plated finish.
A. Yes, the cam is included with the 1402 quarter turn lock.
A. The 1402 is rated IP65, providing protection against dust ingress and low-pressure water jets.
A. The source confirms this variant is supplied in bright chrome. The master description also references black powder coated and stainless steel 316 finishes within the 1402 range.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
