Product Number: 1402-30100-30
The Metrol 1402-30100-30 is a non-locking quarter turn lock featuring a wing handle design in a bright chrome finish, with a 30mm barrel height. It is intended for panel-mounted enclosure and cabinet fastening applications where a tool-free quarter-turn operation is required.
The lock mechanism is constructed using zinc alloy die casting for both the handle and housing, with a mild steel zinc-plated cam. The bright chrome finish provides a clean, durable surface treatment. An SS316L housing and SS304 insert option is also noted within the product range, offering material versatility. The hinge carries a sealed IP65 rating, confirming its suitability for environments where dust and water jet resistance is required.

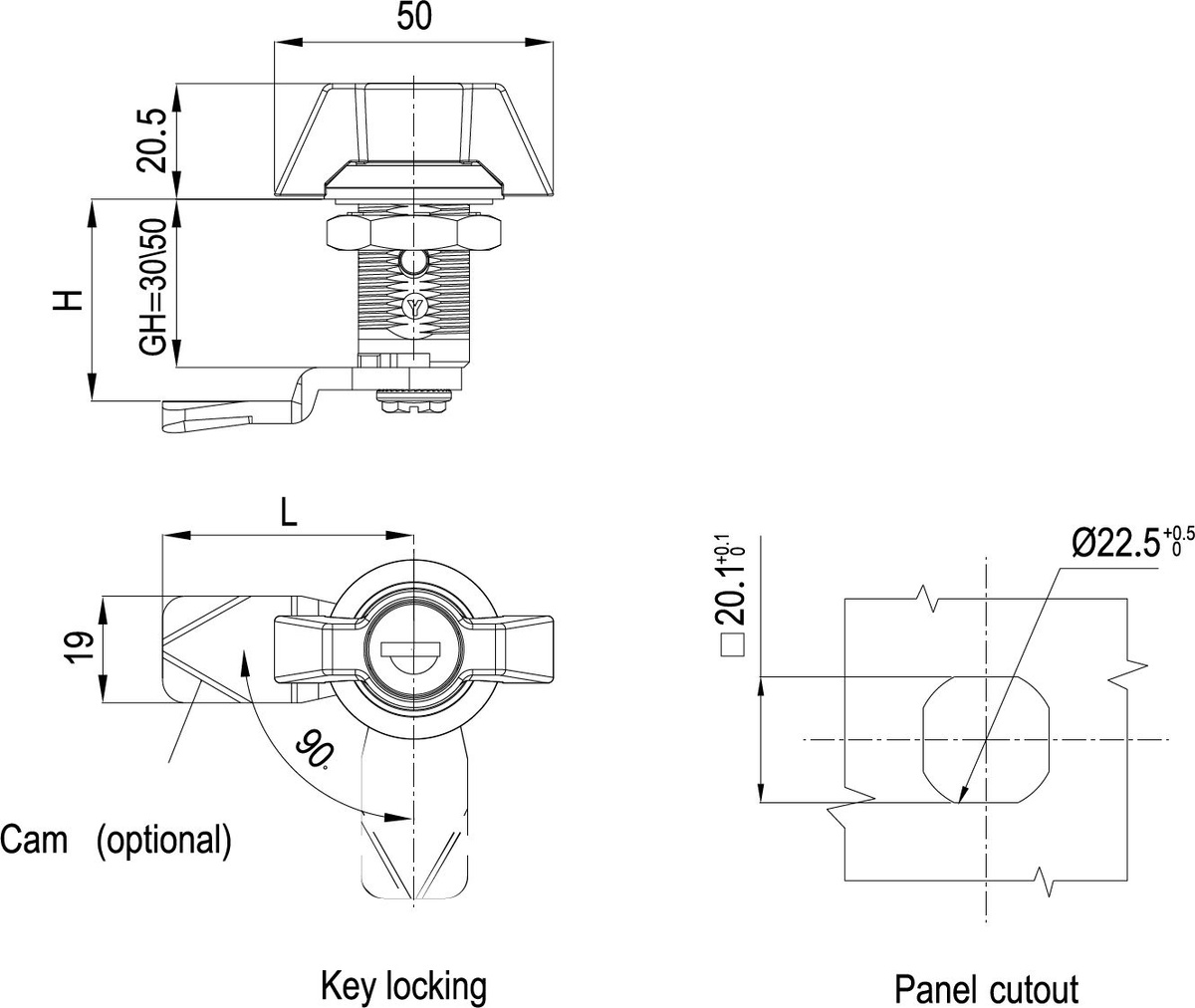

The 1402 series accommodates a panel cutout diameter of Ø22.5 mm and is compatible with panel thicknesses from 1 mm to 18 mm, making it suitable for a broad range of enclosure wall gauges. The cam option is described as a range available, indicating that alternative cam configurations can be selected within this product family. The lock type is non-locking, meaning it operates by quarter-turn actuation without a keyed locking function.
Trust line: Contents are not specified in available source data. No warranty information is stated in the product source. Manufactured by Metrol.
The 1402-30 Non Locking Wing Handle Quarter Turn Lock with 30mm Barrel is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Non Locking |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | Ø22.5 |
| Panel Thickness | 1 - 18mm |
| Barrel Height | 30mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1402 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1301-30 Non Locking T Handle Lock with 30mm Grip Height Black Textured Powder Coated
£16.07
£15.75
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1301-30100-20 | 1301-30100-30 | 1301-30110-20 | 1301-30110-30 | 1402-30100-20 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 30mm | 30mm | 30mm | 30mm | 30mm |
| Finish | Chrome | Chrome | |||
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The barrel height is 30mm and the required panel cutout diameter is Ø22.5mm. The lock is compatible with panel thicknesses from 1mm to 18mm.
A. The Metrol 1402-30100-30 carries an IP65 rating, confirming protection against dust ingress and low-pressure water jets from any direction.
A. The handle and housing are die cast zinc alloy with a bright chrome finish. The cam is mild steel with zinc plating. The product range also notes SS316L housing and SS304 insert options.
A. This is a non-locking quarter turn lock. It operates by a simple wing handle quarter-turn action without a keyed security function.
A. Yes — the source data confirms that a range of cam options is available within the 1402 series. Contact us to confirm the correct cam configuration for your application.
A. The 1402-30100-30 is designed for panel mounting via a Ø22.5mm cutout. It accommodates panel thicknesses from 1mm to 18mm. Secure the housing through the cutout and attach the cam to the rear of the panel to complete installation. Refer to the manufacturer's datasheet for full fitting instructions.
