Product Number: 1401-170-20

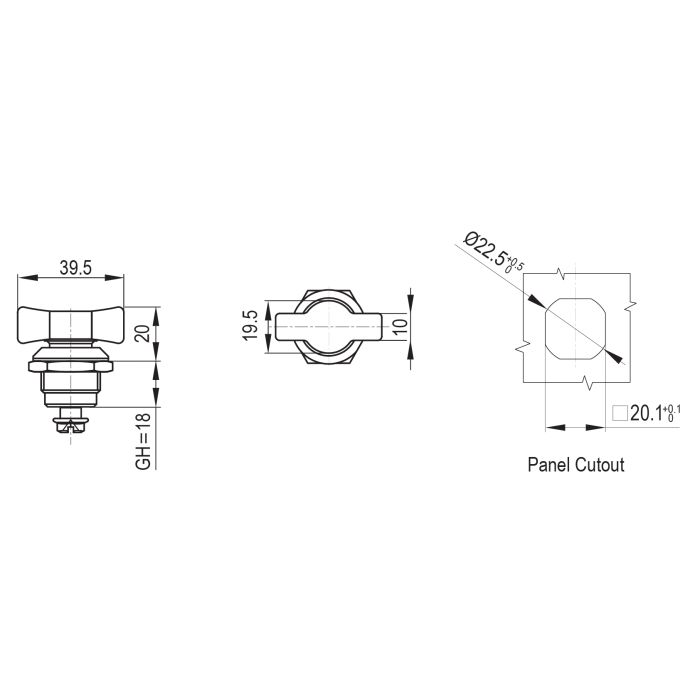

The Metrol 1401-170-20 is a quarter turn wing knob lock from the 1401 series, featuring an 18mm barrel height and a black powder coated finish. Designed for panel mounting, this lock accepts a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses from 1 mm to 8 mm, making it suitable for enclosure and cabinet applications requiring a secure quarter turn fastening solution.
The locking head is constructed with a die cast zinc body with a Nylon 6 GF30 reinforced handle, finished in black powder coating. The mild steel cam is zinc plated. It carries IP65-grade weather sealing, confirming resistance to dust and water jets. The 1401 series is available with a choice of cams to suit different retention requirements.
The 1401 series is offered in multiple handle configurations and finish options including bright chrome, polyamide, and stainless steel 316 variants, providing flexibility across a range of panel and enclosure applications. For alternative grip heights or insert configurations within the 1401 range, refer to companion SKUs such as the 1401-168 series.
The 1401 Wing Knob Quarter Turn Lock with 18mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, Nylon 6 GF30 Handle |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1401 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1301 Non Locking T Handle Lock with 18mm Grip Height Black Textured Powder Coated
£11.74
£11.51
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1301-00-20 | 1301-00-30 | 1301-00-316 | 1301-10-20 | 1301-10-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 18mm | 18mm | 18mm | 18mm | 18mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The 1401-170-20 requires a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses from 1 mm to 8 mm.
A. The 1401-170-20 carries an IP65 ingress protection rating, indicating it is sealed against dust ingress and protected against water jets.
A. The housing is die cast zinc alloy with a Nylon 6 GF30 handle, finished in black powder coating. The cam is mild steel with a zinc plated finish.
A. The barrel height is 18 mm.
A. Yes — the 1401 series is available in black powder coated, bright chrome, polyamide, and stainless steel 316 finishes, with a range of handle configurations. Contact us with your requirements.
A. Yes — a range of cam options is available within the 1401 series to suit different panel retention requirements.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
