Product Number: 1245-257-204
Variations
The Metrol 1245-257-204 is a key-locking lever latch finished in black powder coat, designed to securely close and hold panels, doors, and covers while allowing quick, controlled access when needed. With a grip range of 45–57mm and compatibility with panel thicknesses of 31–41mm, it is suited to industrial equipment, electrical enclosures, cabinets, and machinery housings where accidental opening from vibration or routine handling must be prevented.
The latch features a zinc die-cast handle, housing, and trigger, with mild steel zinc-plated fixing components. The key-locking mechanism incorporates a shutter and uses a CH751 key, providing a controlled-access solution for applications requiring repeatable day-to-day security. The black powder-coated finish is salt spray tested to over 300 hours, supporting durability in demanding workshop and industrial environments. An IP40 rating confirms protection against solid particle ingress in line with standard enclosure applications.

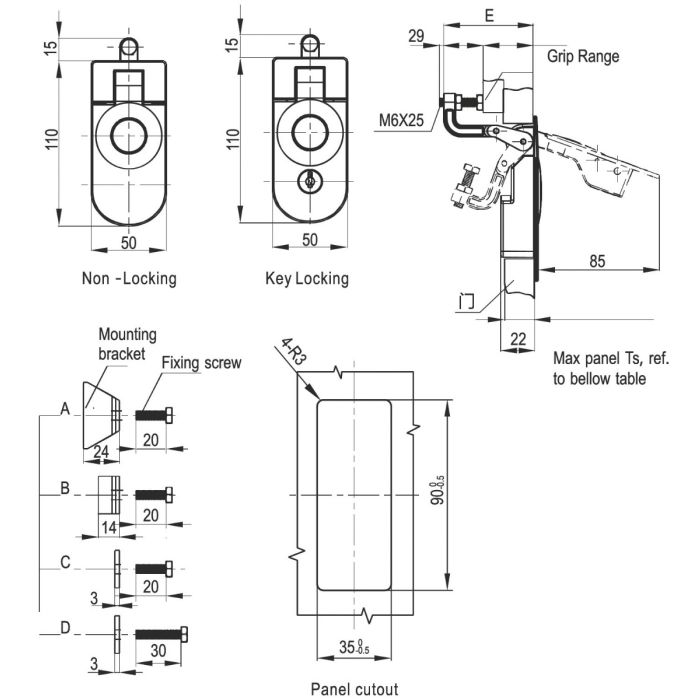

Installation is straightforward via a universal 35×90mm panel cutout. The latch is rated to IP40 and is manufactured by Metrol under the 1245 model series. It is backed by a one-year guarantee.
Latches are access hardware components designed to securely close and hold panels, doors, and covers while still allowing quick, controlled access when needed. Commonly used in industrial equipment, electrical enclosures, cabinets, and machinery housings, they help prevent accidental opening from vibration or handling and support repeatable day-to-day operation. Available in multiple styles and mounting options, latches can be selected to match different access frequency, security, and installation requirements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking with Shutter |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, Mild Steel Zinc Plated Fixing Components |
| Panel Cutout | 35x90mm |
| Panel Thickness | 31 - 41mm |
| Grip Range | 45-57mm |
| IP Rating | IP40 |
| Model | 1245 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1245-257-201 | 1245-257-202 | 1245-257-203 | 1245-357-201 | 1245-357-202 |
| Type | Lever Latch | Lever Latch | Lever Latch | Lever Latch | Lever Latch |
| Size | 57mm | 57mm | 57mm | 57mm | 57mm |
| Grip Range | 45-57mm | 45-57mm | 45-57mm | 45-57mm | 45-57mm |
| Panel Thickness | 1 - 11mm | 11 - 21mm | 21 - 31mm | 1 - 11mm | 11 - 21mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. This latch uses a CH751 key for its locking mechanism, which also incorporates a shutter for added security.
A. The latch is designed for panel thicknesses of 31–41mm and a grip range of 45–57mm.
A. A universal 35×90mm panel cutout is required for installation.
A. The latch carries an IP40 rating, confirming protection against solid particle ingress suitable for standard enclosure and cabinet applications.
A. The handle, housing, and trigger are zinc die-cast, with mild steel zinc-plated fixing components. The external finish is black powder coat, salt spray tested to over 300 hours.
A. This latch is covered by a one-year guarantee.
A. It is designed for use in industrial equipment, electrical enclosures, cabinets, and machinery housings where panels, doors, or covers must be held securely against vibration and handling.
