Product Number: E14

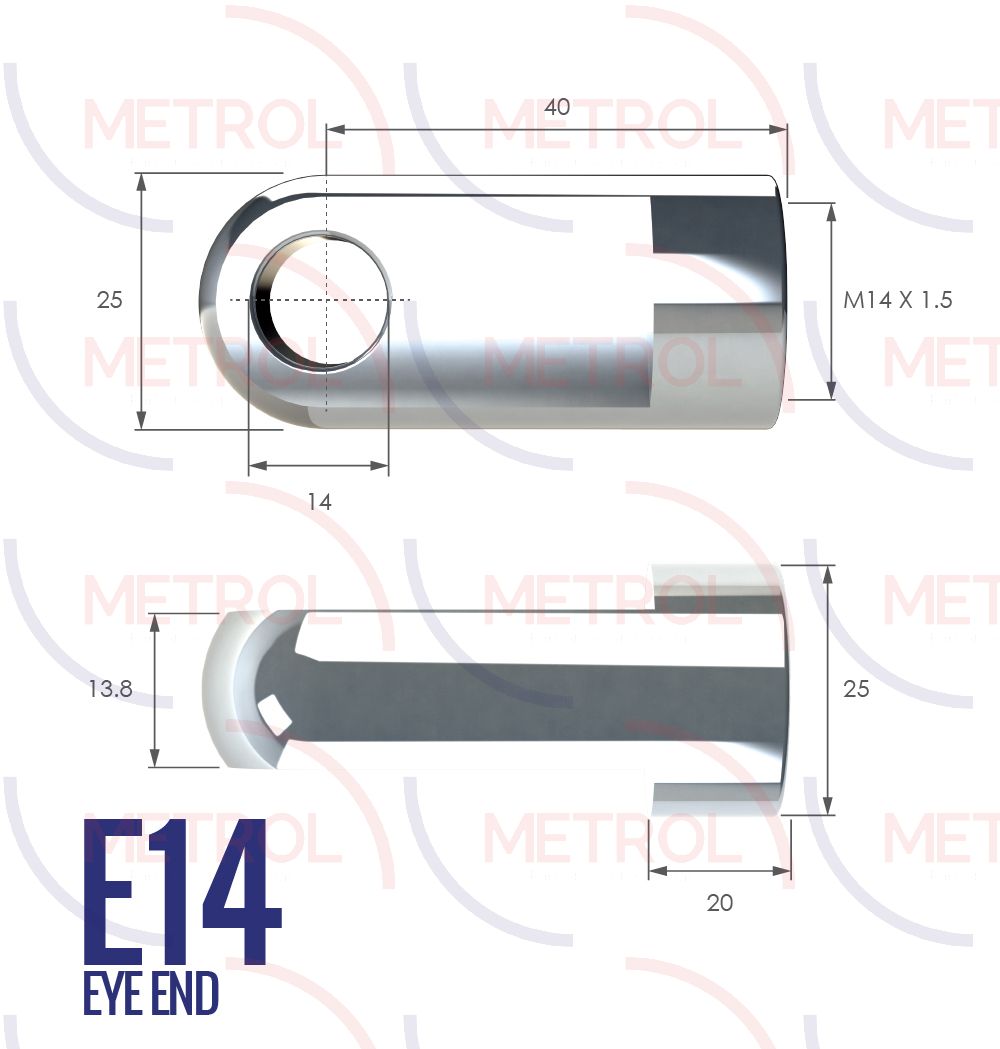

Where a strut end simply needs to hinge on a pin, an eye fitting is the most direct connection. The Metrol E14 is a steel eye end fitting with an M14 thread, a 40mm body and a 14mm eye hole. It screws onto the strut rod and pins through its eye to a mounting point, forming a hinged joint that opens and closes with the panel. Its M14 thread suits a gas strut with a 20mm rod. It measures 25mm across the eye boss, on a 25mm shoulder, with a 13.8mm section. Like every end fitting in the range it transfers the strut's force to the structure: a ball joint gives a connection that swivels in any direction, an eye a single-axis hinge, a clevis fork an in-line pinned joint, and a rose eye absorbs slight misalignment. It threads onto a gas strut with a 20mm rod, and is chosen by matching the thread to the strut and the size to the space behind the mounting. Typical applications include under-bed boxes, display lids, counter hatches, canopy panels.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread (A) | M14 |
| Fitting Length (B) | 40mm |
| Outer Radius (C) | 25mm |
| Eye Hole Diameter (D) | 14mm |
| Shoulder Width (E) | 25mm |
| Thickness (F) | 13.8mm |
| Shoulder Height (G) | 20mm |
| Gas Strut Rod Diameter | 20mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
E full range End Fittings.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | E9 | E8 | E7 | E6 | E5 | B16 | C4 | C4CLIP | RE16 | BRK-4A |
| Type | Strut Mount | Strut Mount | Strut Mount | Strut Mount | Strut Mount | End Fittings | End Fittings | End Fittings | End Fittings | End Fittings |
| Length | 14mm | 14mm | 14mm | 14mm | 13mm | |||||
| Size | 8mm | 8mm | 8mm | 8mm | 6mm | |||||
| Length Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm | |||||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |||||
A. Match the M14 thread to your strut rod and pick the body length you need; this one is 40mm.
A. A gas strut with a 20mm rod.
A. Yes — the E14 is a genuine Metrol product, available from PartsForMachines.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product’s tech specs or datasheet where available.
