Product Number: 1409-100-3520

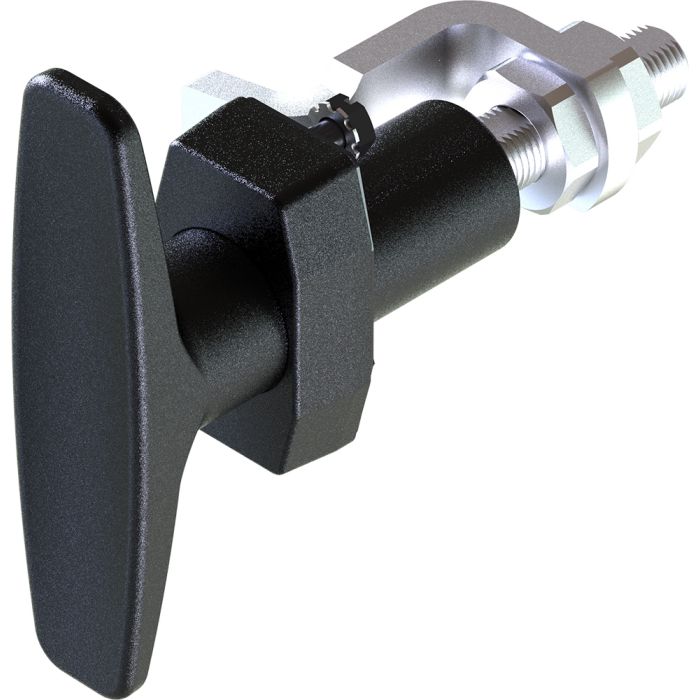

1409-100-3520 — the Metrol 1409 is a non-locking T handle compression latch designed for panel mounting applications requiring a secure, adjustable grip without a locking mechanism. Finished in black powder coat over a die cast zinc alloy handle and housing, the latch is built to withstand demanding industrial environments and carries a sealed IP65 rating.

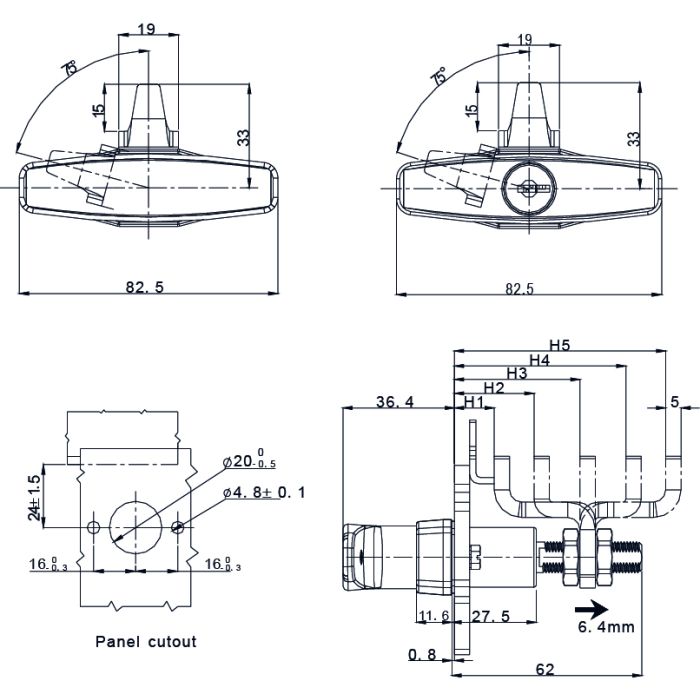

The 1409 features a mild steel zinc plated cam, supplied as standard, and an adjustable grip range of 35.3–51 mm, making it suitable for varying panel build-ups. The mounting cutout requirement is Ø20 mm and the latch accommodates panel thickness from 1 mm to 27 mm, providing genuine installation flexibility across fabricated enclosures, cabinets and equipment panels.
The 1409 non locking t handle compression latch with adjustable grip black powder coated is a strong and ergonomic T-handle lock suitable for toolboxes, machinery housings, meter boxes, loft hatches. Designed with a comfortable grip and smooth turning action, it provides secure access control for industrial and commercial applications.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Non Locking |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | Ø20 |
| Panel Thickness | 1 - 27mm |
| Grip Range | 35.3-51mm |
| IP Rating | IP65 |
| Cam Option | Cam included |
| Model | 1409 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1409-100-2520 | 1409-110-2520 | 1409-100-1520 | 1409-110-1520 | 1192-01 |
| Type | Quarter Turn Latch | Quarter Turn Latch | Quarter Turn Latch | Quarter Turn Latch | Quarter Turn Latch |
| Size | 37.3mm | 37.3mm | 23.6mm | 23.6mm | 125mm |
| Material | Zinc plated steel | ||||
| Finish | Zinc | ||||
| Size Range | 26-50mm | 26-50mm | 11-25mm | 11-25mm | 101-200mm |
A. The 1409 accommodates a grip range of 35.3–51 mm and is suitable for panel thicknesses from 1 mm to 27 mm.
A. The 1409 requires a circular panel cutout of Ø20 mm.
A. The 1409 carries an IP65 ingress protection rating.
A. The handle and housing are die cast zinc alloy with a black powder coat finish. The cam is mild steel with a zinc plate finish and is included as standard.
A. Yes — a cam is included with the 1409 as standard.
A. No — the 1409 is a non-locking compression latch. It provides secure panel closure via the compression mechanism without a keyed or otherwise locked function.
