Product Number: 2118-134F-20

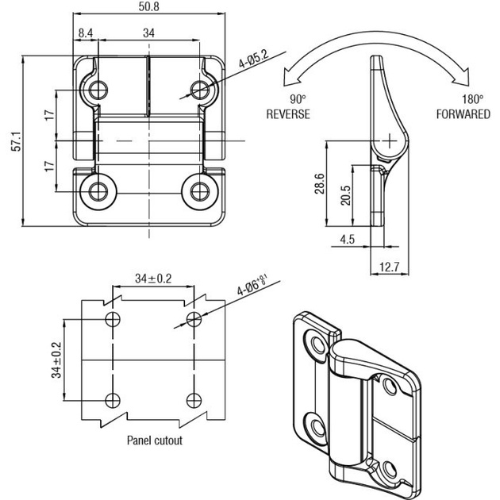

The 2118-134F-20 is a screw-on asymmetric friction torque hinge finished in black textured powder coat, measuring 50.8 x 57.1 mm. Constructed using zinc alloy die casting with a stainless steel SS316 pin, it is suited to applications requiring a reliable, unhanded torque hinge that can be mounted by screwing directly into the panel or enclosure.

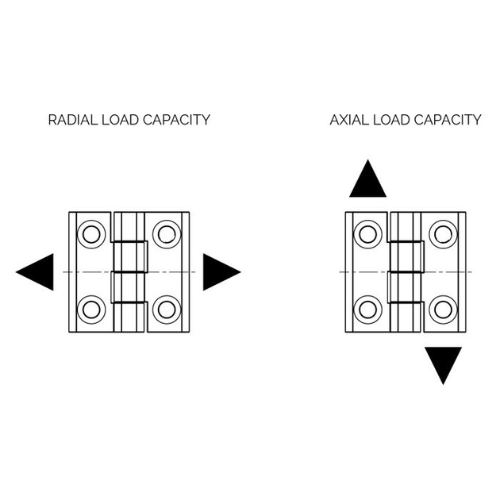

The hinge accepts 5.2 mm through holes and carries a rated axial load capacity of 575 Kg per hinge and a radial load capacity of 373 Kg per hinge. The unhanded orientation means the same unit is suitable for left- or right-hand installations without requiring a mirrored variant.
The black textured powder coat finish provides a durable, tactile surface that is consistent with industrial enclosure and equipment panel aesthetics. The SS316 pin material offers corrosion resistance appropriate to demanding workshop and industrial environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Textured Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 50.8 × 57.1 mm |
| Axial Load Capacity | 575 kg per hinge |
| Radial Load Capacity | 373 kg per hinge |
| Model | 2119 |
| Torque | 3.4 Forward, 2.0N Reverse |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Asymmetric Friction Hinge with 5.2mm Holes, Black Texture Powder Coated Finish, Size 50.8x57.1mm, Torque 3.4 Forward, 2.0N Reverse, Metrol - 2118-134F-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2118-123F-20 | 2118-114R-20 | 2118-105-20 | 2118-100-20 | 2118-118-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 50.8x57.1mm | 50.8x57.1mm | 50.8x57.1mm | 5.2mm | 5.2mm |
| Load | 4N | 3N | |||
| Size Range | Up to 10mm | Up to 10mm | |||
A. The hinge is rated at an axial load capacity of 575 Kg per hinge and a radial load capacity of 373 Kg per hinge.
A. The body is die cast zinc alloy and the pin is stainless steel SS316, providing corrosion resistance for industrial use.
A. The hinge measures 50.8 x 57.1 mm.
A. The hinge is designed for 5.2 mm through holes.
A. No. The hinge is unhanded, meaning the same unit is suitable for both left- and right-hand installations without requiring a separate mirrored variant.
A. It is finished in black textured powder coat, giving a durable, tactile surface consistent with industrial enclosure panels.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
