Product Number: 2118-123F-20

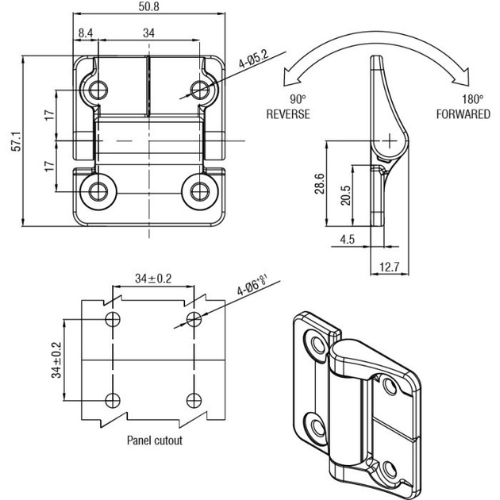

The 2118-123F-20 is a screw-on asymmetric friction torque hinge finished in black textured powder coat, constructed in die cast zinc with a stainless steel SS316 pin. With a footprint of 50.8 x 57.1 mm and 5.2 mm through holes for direct screw fixing, it is suited to panel, enclosure, and equipment door applications where controlled positional resistance is required.

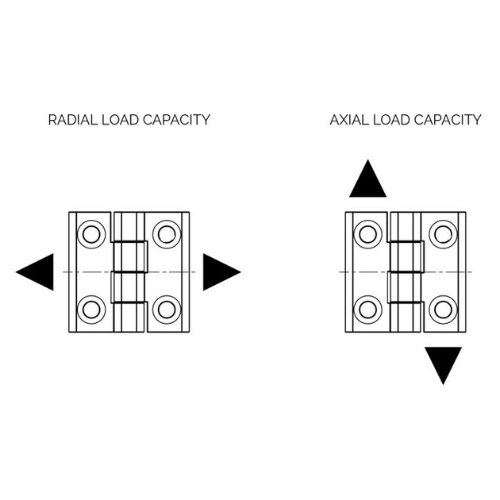

The hinge delivers an axial load capacity of 575 kg per hinge and a radial load capacity of 373 kg per hinge, making it well suited to demanding industrial mounting situations. The unhanded orientation means a single part number covers both left- and right-hand installations without modification.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Textured Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 50.8 × 57.1 mm |
| Axial Load Capacity | 575 kg per hinge |
| Radial Load Capacity | 373 kg per hinge |
| Model | 2118 |
| Torque | 2.3 Forward, 1.4N Reverse |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Asymmetric Friction Hinge with 5.2mm Holes, Black Texture Powder Coated Finish, Size 50.8x57.1mm, Torque 2.3 Forward, 1.4N Reverse, Metrol - 2118-123F-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2118-100-20 | 2118-118-20 | 2118-120R-20 | 2118-127R-20 | 2118-105-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 5.2mm | 5.2mm | 50.8x57.1mm | 50.8x57.1mm | 50.8x57.1mm |
| Load | 4N | 5N | |||
| Size Range | Up to 10mm | Up to 10mm | |||
A. The body is die cast zinc alloy and the pin is stainless steel SS316, giving good corrosion resistance at the pivot point.
A. The 2118-123F-20 is rated at 575 kg axial load capacity and 373 kg radial load capacity per hinge.
A. It is finished in black textured powder coat.
A. The hinge measures 50.8 x 57.1 mm overall and has 5.2 mm diameter through holes for screw fixing.
A. No — the 2118-123F-20 has an unhanded orientation, so a single part fits either left-hand or right-hand positions without modification.
