Product Number: 2118-114R-20

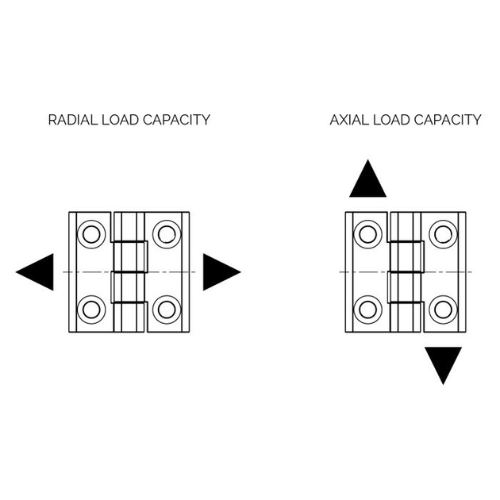

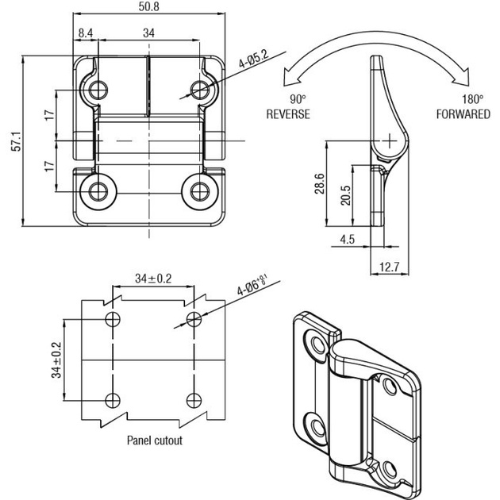

The 2118-114R-20 is a screw-on asymmetric friction torque hinge finished in black textured powder coat, measuring 50.8 x 57.1 mm. Constructed using zinc alloy die casting with a stainless steel SS316 pin, it is designed for applications requiring controlled positional hold under both axial and radial loading. The unhanded orientation means the same hinge can be fitted in either hand without modification, simplifying installation and reducing stock requirements. Each hinge carries an axial load capacity of 575 kg and a radial load capacity of 373 kg, making it a capable choice where robust friction positioning is required. The 5.2 mm through-holes accept standard fasteners for direct screw-in mounting, and the black textured powder coated finish provides a durable, uniform surface suitable for professional enclosure and panel applications.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Textured Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 50.8 × 57.1 mm |
| Axial Load Capacity | 575 kg per hinge |
| Radial Load Capacity | 373 kg per hinge |
| Model | 2121 |
| Torque | 1.4 Forward, 2.3N Reverse |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Asymmetric Friction Hinge with 5.2mm Holes, Black Texture Powder Coated Finish, Size 50.8x57.1mm, Torque 1.4 Forward, 2.3N Reverse, Metrol - 2118-114R-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2118-100-20 | 2118-118-20 | 2118-120R-20 | 2118-127R-20 | 2118-105-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 5.2mm | 5.2mm | 50.8x57.1mm | 50.8x57.1mm | 50.8x57.1mm |
| Load | 4N | 5N | |||
| Size Range | Up to 10mm | Up to 10mm | |||
A. Each hinge has an axial load capacity of 575 kg and a radial load capacity of 373 kg.
A. The body is die cast zinc alloy and the pin is stainless steel SS316.
A. The hinge measures 50.8 x 57.1 mm.
A. It is finished in black textured powder coat.
A. No. The 2118-114R-20 is unhanded, meaning the same hinge can be used in either orientation without needing a separate handed version.
A. The hinge features 5.2 mm through-holes for screw-in mounting.
