Product Number: 2316-45-30
The 2316-45-30 is a 2316 series external hinge finished in bright chrome, manufactured with a die cast zinc body with a stainless steel SS316 pin. It is purpose-built for external cabinet and enclosure applications where robust load-bearing performance is required.
The hinge is unhanded, making it suitable for either left- or right-hand mounting without the need to specify orientation at the point of order. The SS316 stainless steel pin provides corrosion resistance, whilst the die cast zinc alloy body delivers structural rigidity. The bright chrome finish gives the hinge a clean, polished appearance suited to professional installations.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
|

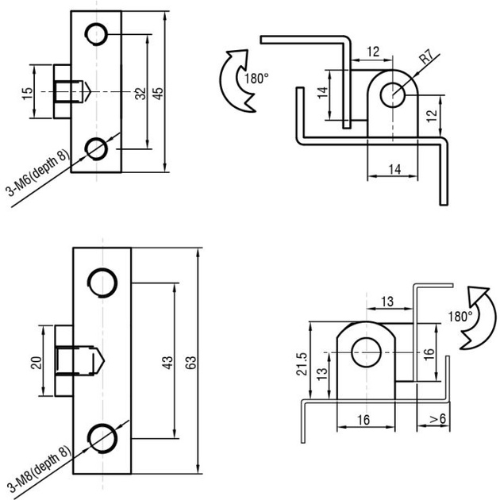

External Hinge, Bright Chrome Finish, Mounting Centre 32mm, Axial Load Capacity 411Kg per hinge, Metrol - 2316-45-30
|
|
| Product Number | 2316-45-30_01 |
|---|---|
| 2316-45-10_02.png | 2316-45-30_02.png |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
External Hinge, Bright Chrome Finish, Mounting Centre 32mm, Axial Load Capacity 411Kg per hinge, Metrol - 2316-45-30
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2316-45-10 | 2401-111-10 | 2401-111-77 | 2404-12-L | 2201-510-10 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 32mm | 75x32mm | 75x32mm | 31.8mm | 63x32.5mm |
| Material | Zinc plated steel | ||||
| Finish | Zinc | ||||
| Size Range | 26-50mm | 26-50mm | |||
| Thread | M6 | M6 | M5 | ||
A. The hinge body is constructed from die cast zinc alloy, and the pin is SS316 stainless steel. The finish is bright chrome.

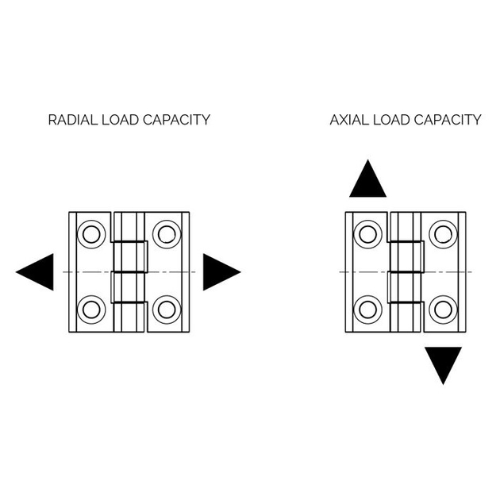

A. The 2316-45-30 has an axial load capacity of 411 kg per hinge and a radial load capacity of 522 kg per hinge.
A. No. The hinge is unhanded and can be mounted in either orientation without any adjustment.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
