Product Number: 21685

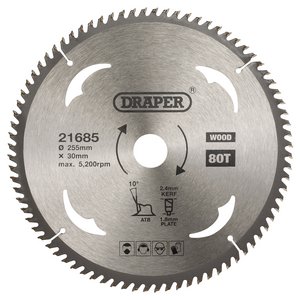

Achieving clean, consistent cuts in sheet materials and timber demands a blade engineered for precision under sustained load. The Draper 21685 TCT Circular Saw Blade is hardened and tempered for long service life, with high-quality precision-ground Tungsten Carbide-Tipped teeth that deliver robust performance during rapid cutting operations. The blade is designed for use on hardwood, softwood, MDF, chipboard and plywood, making it a versatile consumable for joinery, cabinetmaking and general site work. At 255mm diameter with a 30mm bore, it is compatible with most 255mm circular saws, including Draper Stock Nos. 90170 and 79899. The 80-tooth configuration and Alternate Top Bevel grind angle promote a fine, smooth finish in cross-grain and sheet-cutting applications. Key specifications: steel body with TCT teeth, 2.4mm kerf, 10° rake angle, and a maximum operating speed of 5,200rpm. The blade weighs 0.670kg and is manufactured to EN847-1 standard, confirming compliance with established safety requirements for circular saw blades and milling tools for woodworking. Supplied as a single blade, the Draper 21685 is an appropriately specified consumable for workshops requiring consistent dimensional accuracy on a range of wood-based materials.
This Tungsten Carbide-Tipped (TCT) circular saw blade is hardened and tempered to ensure a long life. High-quality precision-ground carbide teeth make the blade robust for rapid cutting. Designed for use on hardwood, softwood, MDF, chipboard and plywood. Compatible with most 255mm circular saws with a 30mm bore, including Stock No. 90170 and 79899. EN847-1 Standard.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel with TCT teeth |
|---|---|
| Diameter | 255mm |
| Bore | 30mm |
| Tooth count | 80T |
| Kerf | 2.4mm |
| Grind angle | Alternate Top Bevel |
| Rake angle | 10° |
| Max. speed | 5,200rpm |
| Weight | 0.670kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
79899 | Draper 79899 Double Bevel Sliding Compound Mitre Saw, 255mm, 2000W | 1 Unit |
£182.43
£178.85
|
Add |
|
90170 | Draper 90170 Sliding Compound Mitre Saw, 255mm, 1800W | 1 Unit |
£149.84
£146.90
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 00580 | 00649 | 04451 | 07886 | 07901 | 07902 | 07908 | 07910 | 07937 | 05910 | 10639 | 09607 | 09624 | 09633 | 09636 |
| Type | Backing Pads | Platform Battery | Chucks & Collets | Gears & Bearings | Carbon Brushes | Carbon Brushes | Switches & Triggers | Plate | Stop | Carbon Brushes | Staples | Switches & Triggers | Chucks & Collets | Carbon Brushes | Chucks & Collets |
| Voltage | 20V | ||||||||||||||
| Capacity | 3.0Ah | ||||||||||||||
| Length | 10mm | ||||||||||||||
| Length Range | Up to 10mm | ||||||||||||||
| Pack Qty | 1000 | ||||||||||||||
A. This blade is designed for use on hardwood, softwood, MDF, chipboard and plywood.
A. The blade is compatible with most 255mm circular saws fitted with a 30mm bore, including Draper Stock Nos. 90170 and 79899.
A. The blade measures 255mm in diameter with a 30mm bore, carries 80 teeth, has a 2.4mm kerf, a 10° rake angle, an Alternate Top Bevel grind, and a maximum operating speed of 5,200rpm. It weighs 0.670kg.
A. The Draper 21685 is manufactured to EN847-1, the standard covering safety requirements for circular saw blades and milling tools used in woodworking.
A. The blade uses an Alternate Top Bevel (ATB) grind angle. This geometry is well suited to cross-grain cutting and sheet materials such as MDF and plywood, producing a cleaner finish with reduced grain tear-out.
A. Tungsten Carbide-Tipped blades can be resharpened, but this requires specialist diamond grinding equipment and should be carried out by a professional blade-sharpening service. Attempting to sharpen carbide teeth with standard tools is not recommended and may damage the tooth geometry.
