Product Number: 33005

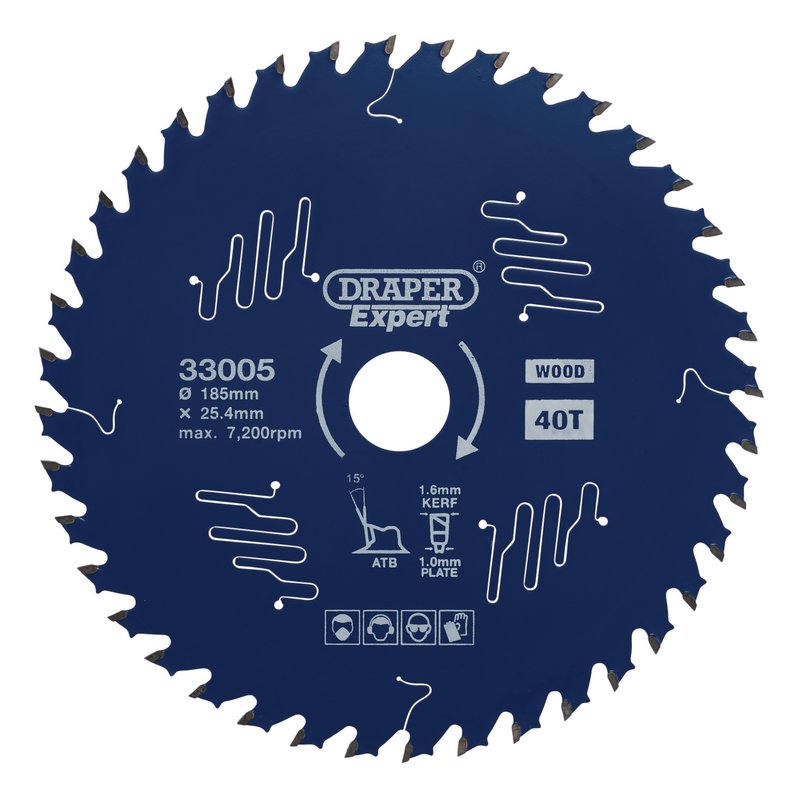

Cutting through hardwood, softwood, MDF, chipboard and plywood demands a blade that manages heat, vibration and resin build-up without sacrificing precision. The Draper Expert 33005 TCT circular saw blade addresses all three with a combination of engineered features working in concert. The blade is laser cut from steel and fitted with micrograin titanium carbide-tipped (TCT) teeth ground to an Alternate Top Bevel (ATB) profile at a 15° rake angle. This geometry produces thin, clean cuts with minimal material waste and a 1.6mm kerf. A PTFE coating applied to the blade body improves the ease of cut, reduces heat build-up, and actively resists rust and resin accumulation — extending service life between cleans. Laser-cut heat expansion slots allow the blade to accommodate thermal expansion safely at speeds up to 7,200rpm. Anti-friction vents damp vibration so the blade runs true, and they also reduce operational noise — a practical benefit in workshop environments where noise levels matter. The anti-kickback design limits the rate at which the blade feeds, reducing the risk of the saw binding or snatching during use. The 185mm diameter blade carries a 25.4mm primary bore and is supplied with 20mm and 16mm reduction bushes, making it compatible with most 185mm circular saws including Draper Stock Numbers 55588, 56791 and 56786. The blade conforms to EN847-1 standard. Weight is 0.205kg.
This laser cut Titanium Carbide-Tipped (TCT) circular saw blade has a PTFE coating, which improves the ease of the cut, reduces heat in the blade and prevents rusting and resin build-up. The micrograin titanium carbide teeth provide thin cuts and little waste. The heat expansion slots are laser cut and this provides the blade with enough room to expand when it heats up. Anti-friction vents tap vibrations ensuring the blade runs more true without any unbalance. These vents also limit the amount of noise from the blade, which is great for use in a quieter working environment. The anti-kickback design prevents the blade feeding too quickly. Designed for use on hardwood, softwood, MDF, chipboard and plywood. Compatible with most 185mm circular saws with a 25.4mm, 20mm and 16mm bore including Stock No. 55588, 56791 and 56786. EN847-1 Standard.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel with TCT teeth |
|---|---|
| Diameter | 185mm |
| Bore | 25.4mm |
| Tooth count | 40T |
| Kerf | 1.6mm |
| Grind | Alternate Top Bevel |
| Rake angle | 15° |
| Reduction bush | 20mm and 16mm |
| Max. speed | 7,200rpm |
| Weight | 0.205kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
55588 | Draper 55588 D20 20V Brushless Sliding Compound Mitre Saw, 185mm (Sold Bare) | 1 Unit |
£156.36
£153.29
|
Add |
|
56786 | Draper 56786 Storm Force® Circular Saw, 185mm, 1200W | 1 Unit |
£38.02
£37.27
|
Add |
|
56791 | Draper 56791 Circular Saw, 185mm, 1300W | 1 Unit |
£61.85
£60.64
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 00580 | 00649 | 04451 | 07886 | 07901 | 07902 | 07908 | 07910 | 07937 | 05910 | 10639 | 09607 | 09624 | 09633 | 09636 |
| Type | Backing Pads | Platform Battery | Chucks & Collets | Gears & Bearings | Carbon Brushes | Carbon Brushes | Switches & Triggers | Plate | Stop | Carbon Brushes | Staples | Switches & Triggers | Chucks & Collets | Carbon Brushes | Chucks & Collets |
| Voltage | 20V | ||||||||||||||
| Capacity | 3.0Ah | ||||||||||||||
| Length | 10mm | ||||||||||||||
| Length Range | Up to 10mm | ||||||||||||||
| Pack Qty | 1000 | ||||||||||||||
A. The blade is designed for use on hardwood, softwood, MDF, chipboard and plywood.
A. The 33005 is compatible with most 185mm circular saws with a 25.4mm, 20mm or 16mm bore, including Draper Stock Numbers 55588, 56791 and 56786. Reduction bushes for 20mm and 16mm bores are supplied with the blade.
A. The PTFE coating improves the ease of cut, reduces heat build-up in the blade, and prevents rusting and resin accumulation on the blade body.
A. The blade is rated to a maximum speed of 7,200rpm.
A. The blade has a 185mm diameter, a 25.4mm primary bore, a 40-tooth count, a 1.6mm kerf, an Alternate Top Bevel grind and a 15° rake angle.
A. The Draper Expert 33005 TCT circular saw blade conforms to EN847-1 standard.
