Product Number: 54488

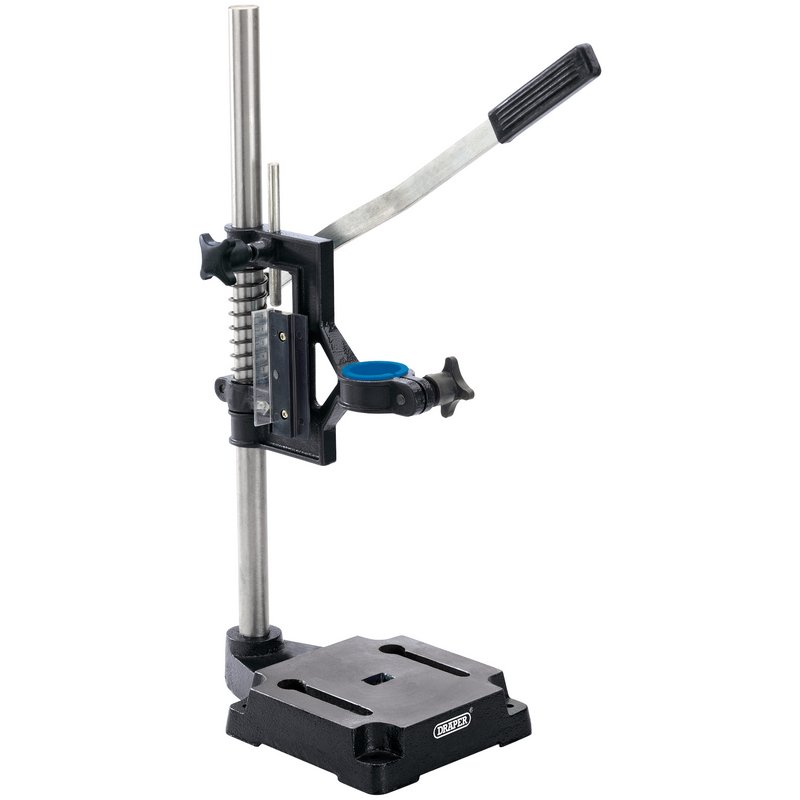

Drilling accurate, perpendicular holes freehand is a persistent challenge in workshop and trade environments. The Draper 54488 Vertical Drill Stand addresses this by converting a hand-held electric drill into a controlled, column-guided drilling station, delivering repeatable accuracy without the footprint of a dedicated pillar drill. The stand accepts drills with collar diameters of 43mm and, with the supplied reducing bush, 38mm, making it compatible with Draper power drills 83583, 83584, and 83585 as well as other drills conforming to those collar sizes. The solid column bar provides rigidity throughout the drilling stroke, while the sturdy base plate incorporates slots for securing a machine vice, holding workpieces firmly during operation. A depth adjustment scale and stop allow the operator to set and replicate drilling depths consistently across multiple workpieces, eliminating manual measurement between operations. The column stands 540mm tall with a 24mm diameter, and the feed stroke delivers up to 65mm of depth of cut. The base plate measures 170 x 250mm, offering a stable footprint on the bench surface. With a working weight of 6.9kg, the stand is substantial enough to remain stable under load whilst still being portable between workstations. It is supplied in a display carton and includes the 38mm reducing bush as standard.
For use with hand held electric drills with collar diameters of 43mm or 38mm with supplied reducing bush. Solid column bar and sturdy base with slots for fitting machine vice. Features depth adjustment scale and stop.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Plate | 170 x 250mm |
|---|---|
| Collar Diameter | 43mm or 38mm |
| Column Diameter | 24mm |
| Column Height | 540mm |
| Depth of Feed | 65mm |
| Weight | 6.9kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
54488ins.pdf
|
Open Now |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 19402 | 20567 | 20838 | 21828 | 22371 |
| Type | Spare Part | Spare Part | Spare Part | Spare Part | Spare Part |
| Pack Qty | 2 | ||||
A. The stand accepts hand-held electric drills with a collar diameter of 43mm as standard. A reducing bush is supplied in the box to accommodate drills with a 38mm collar diameter.
A. The stand is confirmed compatible with Draper power drills with model numbers 83583, 83584, and 83585, in addition to any hand-held electric drill with a 43mm or 38mm collar diameter.
A. The depth of feed is 65mm, meaning the stand will allow a maximum drilling stroke of 65mm per operation.
A. Yes. The stand features both a depth adjustment scale and a depth stop, allowing the operator to set a precise drilling depth and replicate it consistently across multiple workpieces.
A. Yes. The base plate, which measures 170 x 250mm, incorporates slots specifically designed for fitting a machine vice to secure workpieces during drilling.
A. The column height is 540mm, the column diameter is 24mm, and the base plate measures 170 x 250mm. The unit weighs 6.9kg.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
