Product Number: 43711
Variations

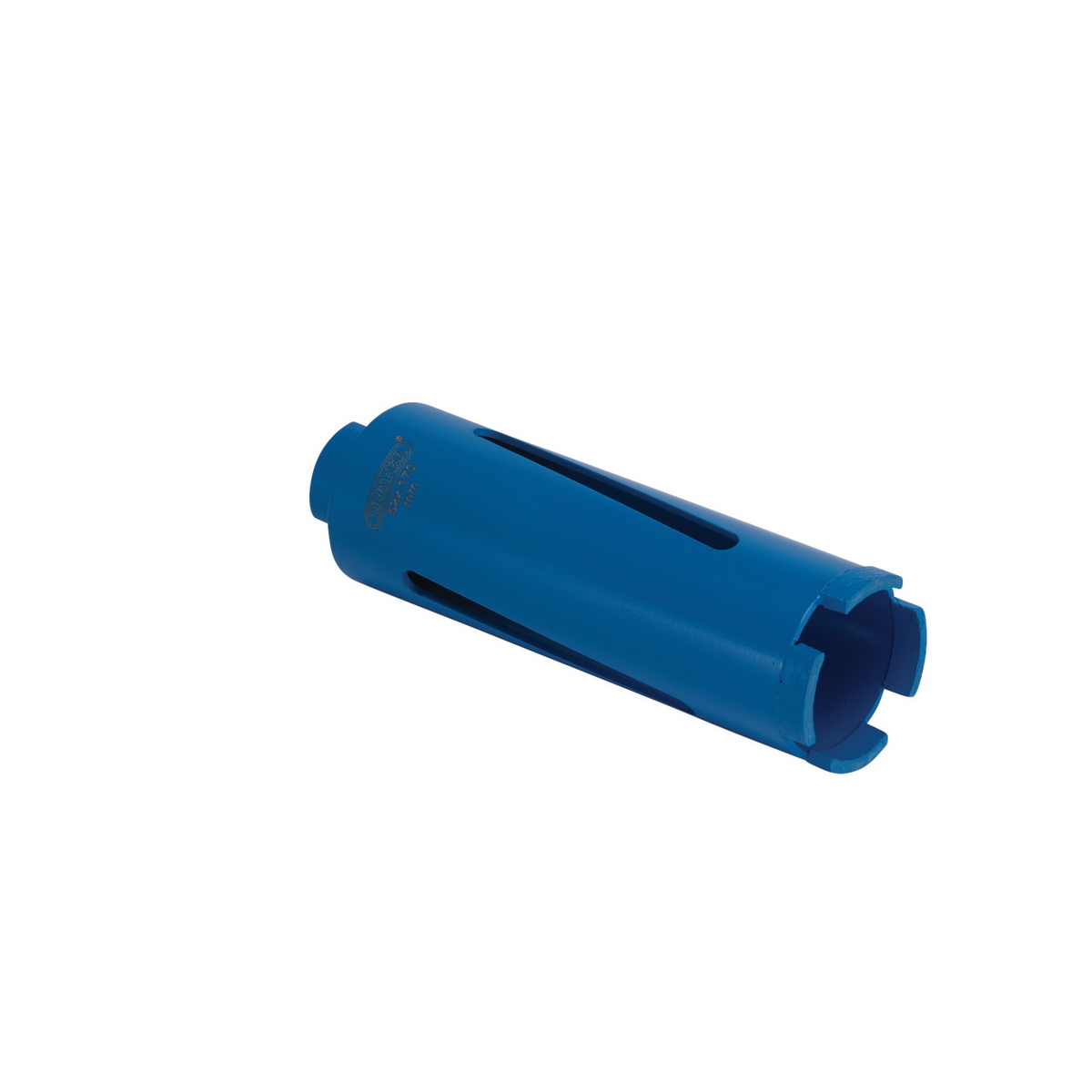

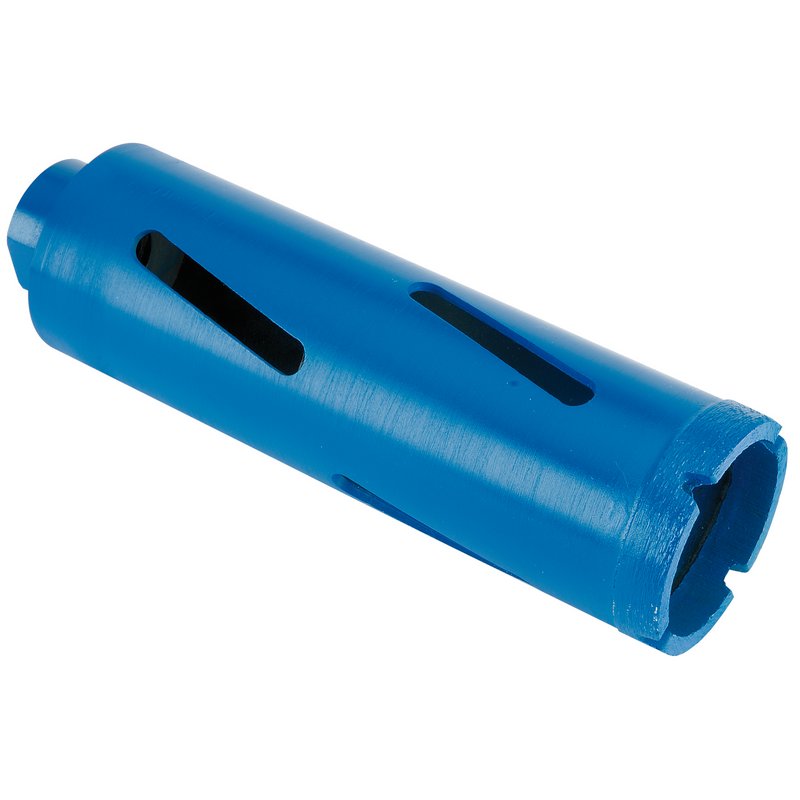

Achieving clean, accurate holes in masonry without the risk of vibration damage to the surrounding material is a persistent challenge on building sites and in trade fit-out work. This 52 x 170mm diamond core bit from Draper is designed specifically for dry cutting and is suitable for use on most masonry applications, including brick and concrete blocks, making it a practical choice for the plumbing, electrical and general building trades. The bit features a laser-welded diamond segment connection, with four segments each standing 8mm in height, providing a reliable bond between the cutting segments and the steel body. It is compatible with all 1/2" BSP threaded arbors, ensuring straightforward fitment to a wide range of compatible core drill machines without the need for adaptor tools. Key dimensions are a 52mm cutting diameter, an overall length of 170mm, and a usable cutting depth of 150mm — sufficient for the majority of standard masonry wall and block thicknesses encountered in trade work. An important operational note: this bit must not be used in hammer mode. Use in hammer mode risks damage to the laser-welded diamond segments and may compromise both the bit and the workpiece. Each pack contains one diamond core drill bit measuring 52 x 170mm, supplied ready for immediate use once an appropriate 1/2" BSP arbor is fitted.
Designed for dry cutting and suitable for use on most masonry applications, including brick and concrete blocks, this 52 x 170mm diamond core bit is popular for use in the plumbing, electrical and general building trades. The bit is compatible with all 1/2" BSP threaded arbors and has a laser-welded diamond segment connection. It should not be used in hammer mode.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Diameter | 52mm |
|---|---|
| Length | 170mm |
| Cutting depth | 150mm |
| Segment quantity | 4 pieces |
| Segment height | 8mm |
| Connection | 1/2 BSP |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 08068 | 08074 | 43710 | 43713 | 43714 |
| Type | Diamond Core Drill Bit | Diamond Core Drill Bit | Diamond Core Drill Bit | Diamond Core Drill Bit | Diamond Core Drill Bit |
| Length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Size | 170mm | 170mm | 170mm | 170mm | 170mm |
| Diameter | 48mm | 65mm | 38mm | 107mm | 117mm |
| Diameter Range | 26-50mm | 51-100mm | 26-50mm | 101-200mm | 101-200mm |
| Length Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Show More | |||||
A. The bit is designed for dry cutting and is suitable for use on most masonry applications, including brick and concrete blocks. It is not intended for use on other materials beyond these masonry applications.
A. The bit has a cutting diameter of 52mm and a cutting depth of 150mm, with an overall length of 170mm.
A. The bit is compatible with all 1/2" BSP threaded arbors. The connection type is 1/2 BSP, so you will need a compatible arbor fitted to your core drill machine.
A. No. This bit must not be used in hammer mode. Doing so risks damage to the laser-welded diamond segment connection and may compromise the bit's performance and integrity.
A. The diamond segments are attached via a laser-welded connection. The bit has four segments, each with a height of 8mm.
A. It is popular for use in the plumbing, electrical and general building trades, where clean masonry core holes are routinely required.
