Product Number: PNZH6BG
Vibration is the quiet killer of pipework and wiring - a rigid clip without a liner just moves the wear point.

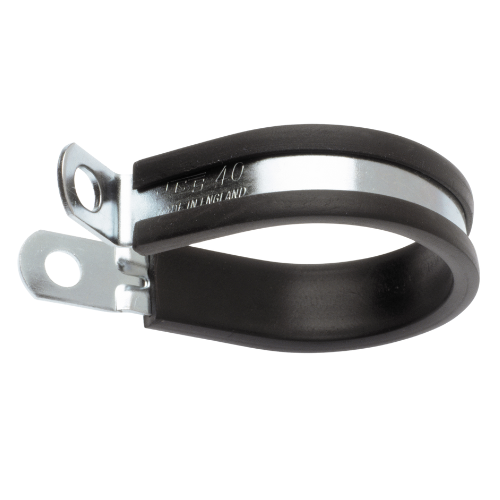

The PNZH6BG is a JCS lined P-clip with a 6mm closed diameter, sized to wrap a pipe, hose or cable of that outside diameter and bolt it to a surface through its M8 fixing hole (8.8mm). The TPE160 high-temperature liner absorbs vibration and prevents chafing, is UV and ozone resistant, and is rated for service from -50C to +160C. A strengthening rib in the band keeps the clip flush against the mounting face. Fixing nuts and bolts are not supplied.
Zinc plated over mild steel and fitted with the TPE160 liner as standard, the M8 range carries lines on heavier structures - plant, frames and chassis - in non-corrosive conditions; the dimensionally identical stainless version covers wet duty. The closed diameter of 6mm should match the outside diameter of the pipe, hose or cable being fixed, not its bore.
Also available - the 304 stainless version (PNSH6BG); the 8mm size (PNZH8BG).
One specification covers pipes, hoses and cables alike - fewer part numbers, tidier stores.
| Closed Diameter | 6mm (approx 1/4 in) |
|---|---|
| Bolt Type | M8 (hole 8.8mm) |
| Material | Mild steel, heavily electro zinc plated and passivated |
| Liner | TPE160 high-temperature liner (-50C to +160C), UV and ozone resistant |
| Overall Height (A) | 7mm |
| Leg/Base Length (B) | 21mm |
| Material Thickness (C) | 0.9mm |
| Tab Width (E) | 20mm |
| Clip Width (F) | 23mm |
| Clip Slot Width (G) | 12mm |
| Applications | Fixing pipes, hoses & cables to a surface; vibration-absorbing routing on vehicles, machinery & structures (per JCS) |
| Pack Quantity | 25 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
JCS P-Clip Data Sheet (1).pdf
|
Open Now |
Standard Delivery: £2.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | PNSH6BG | PNZH8BG |
| Material | Stainless steel | Mild steel zinc plated |
| Clip Type | P-clip | P-clip |
| Closed Diameter | 6mm | 8mm |
| Fixing Thread | M8 | M8 |
| Format | Single size | Single size |
| Grade | 304 | |
A. P-clips are sized by closed diameter, and this one closes at 6mm - so it suits a pipe, hose or cable with a 6mm outside diameter. Measure the OD, not the bore; non-standard sizes are available from JCS on request. That is approximately 1/4 in, if you work in imperial.
A. It does two jobs: cushioning the line against vibration and stopping the band chafing what it holds. The TPE160 high-temperature liner is UV and ozone resistant, rated -50C to +160C.
A. The liner is UV and ozone resistant, so sunlight does not degrade it, and the band comes in zinc plated or 304 stainless for outdoor duty - stainless where it stays wet. Size the clip to the outside diameter of the tube or pipe being fixed.
A. Yes - the design brief covers pipes, hoses and cables alike. The liner cushions the sheath against chafe and vibration, which matters as much on an armoured cable or air line as on a coolant hose. Size by outside diameter.
A. A hose clip makes a joint seal; a P-clip makes a run stay put. If the problem is a leak at a fitting, you want a hose clip - if the problem is a line that moves, chafes or rattles, you want this.
A. Yes - the band has a strengthening rib designed to keep the clip flush with the surface it is bolted to.
A. This is a pack of 25 clips, all 6mm closed diameter.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
