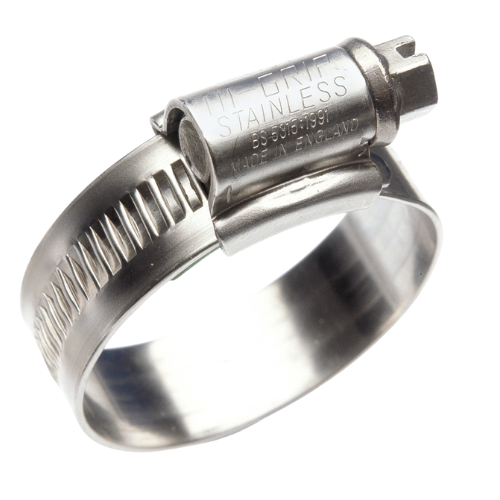

Product Number: HGS80BP
Large-diameter wet-side hoses - pump deliveries, drainage runs, washdown mains - need clips that stay serviceable for years, not seasons.
Sized to adjust between 60-80mm, the HGS80BP carries the construction details Hi-Grip is specified for - rolled screw threads on a cold-headed, work-hardened hex head, fully rounded band edges, and a published tightening torque of 6.0 Nm (54 lb-in) for this size band. The range is made to exceed BS5315 and holds the BSI Kitemark and NATO approval.
Packed 5 to a box for stores and fleet use, the clip is 18/8 marine-quality 304 stainless in every part - band, housing and screw - so there is no plated component to corrode first. Lloyd's Register Type Approval covers marine, offshore and industrial duty; the same clips serve agricultural irrigation, washdown plant and drainage systems.
Also available - the same clip as a trade bag (HGS80BG); the 50-70mm size (HGS70BP); the 70-90mm size (HGS90BP); a zinc plated version in the same size and pack (HGZ80BP).
An industry-standard marine clip, sized by honest adjustment ranges and backed by over 180 years of British manufacturing.
| Adjustment Range | 60-80mm (approx 2 3/8 - 3 1/8 in) |
|---|---|
| Material | 304 stainless steel 18/8 (EN 1.4301), all components stainless |
| Type | Worm drive |
| Recommended Torque | 6.0 Nm (54 lb-in) |
| Standard | Manufactured to exceed BS5315; BSI Kitemark; NATO approved |
| Approval | Lloyd's Register Type Approval (marine, offshore, industrial) |
| Applications | Marine, offshore & industrial (Lloyd's Register Type Approved); pumping, stormwater & wastewater systems; agricultural irrigation networks (per JCS) |
| Pack Quantity | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
JCS HI-GRIP®.pdf
|
Open Now |
Standard Delivery: £2.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | HGS80BG | HGS70BP | HGS90BP | HGZ80BP |
| Material | Stainless steel | Stainless steel | Stainless steel | Mild steel zinc plated |
| Clamping Range | 60-80mm | 50-70mm | 70-90mm | 60-80mm |
| Clip Type | Worm drive | Worm drive | Worm drive | Worm drive |
| Format | Single size | Single size | Single size | Single size |
| Grade | 304 | 304 | 304 | |
| Pack Qty | 10 | 5 | 5 | 15 |
A. It adjusts between 60-80mm. Measure the outside diameter of your hose when fitted over its pipe or fitting - if that measurement falls within 60-80mm, this clip fits. JCS clips offer a larger adjustment range per size than typical nut-and-bolt clamps. In imperial terms that is roughly 2 3/8 to 3 1/8 in, covering common 2 1/2 and 3 in hose sizes.
A. For this size band JCS publishes a recommended torque of 6.0 Nm (54 lb-in). Work up to it gradually with the clip seated centrally on the barb; going past it risks damaging the hose rather than improving the seal.
A. Yes - this is the specification JCS makes for exactly that duty: 18/8 marine-quality 304 stainless with Lloyd's Register Type Approval covering marine, offshore and industrial service, suited to salt water and other highly corrosive environments.
A. Yes - every component is the same grade of stainless steel, verified through JCS's salt mist testing, so there is no mixed-metal weak point to corrode first.
A. Yes - JCS stainless hose clips are used across water and drainage infrastructure, including pumping solutions, stormwater and overflow management, wastewater treatment and agricultural irrigation networks.
A. JCS designs against it: the hex screw is cold-headed and work-hardened with rolled threads, so it holds its setting and will not round off. On high-vibration equipment, JCS's guidance is to recheck the clip after service to keep the seal intact.
A. This is a pack of 5 clips, all 60-80mm adjustment range. Other pack formats of the same clip are listed separately.
A. We accept all major credit and debit cards, along with PayPal.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
