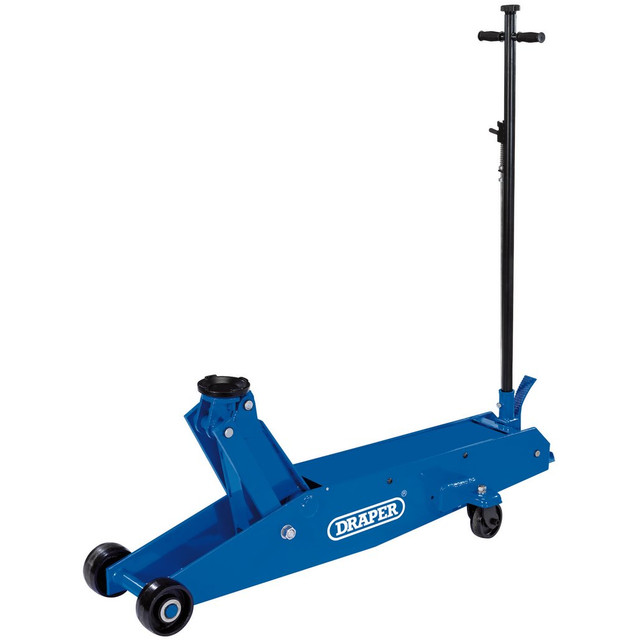

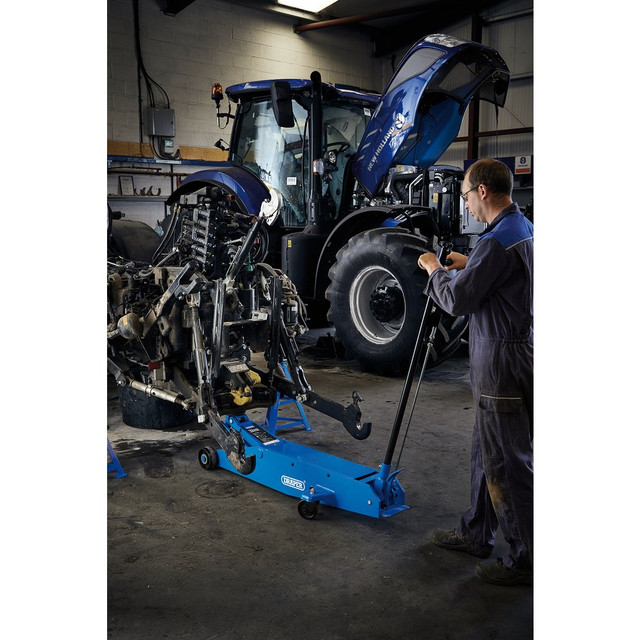

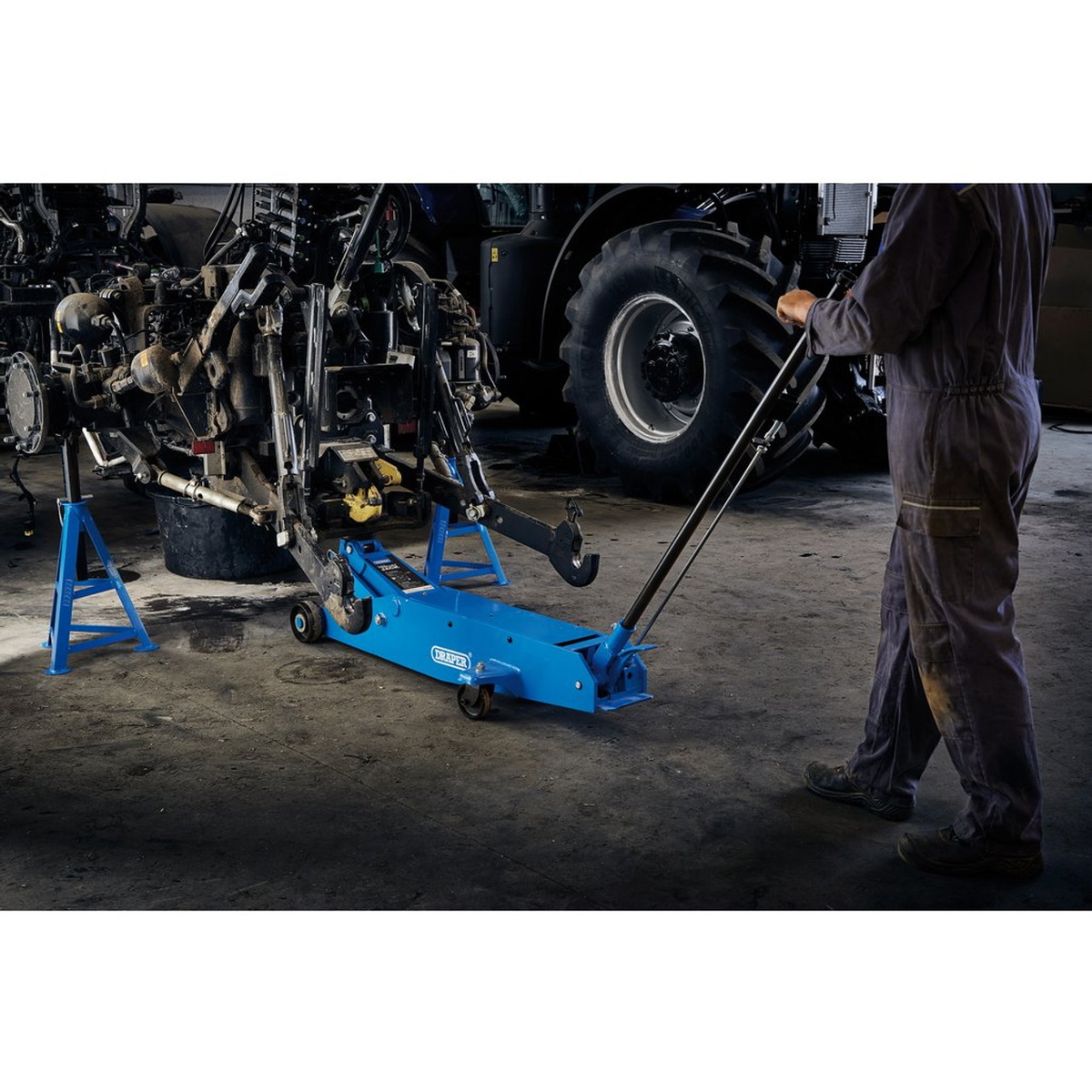

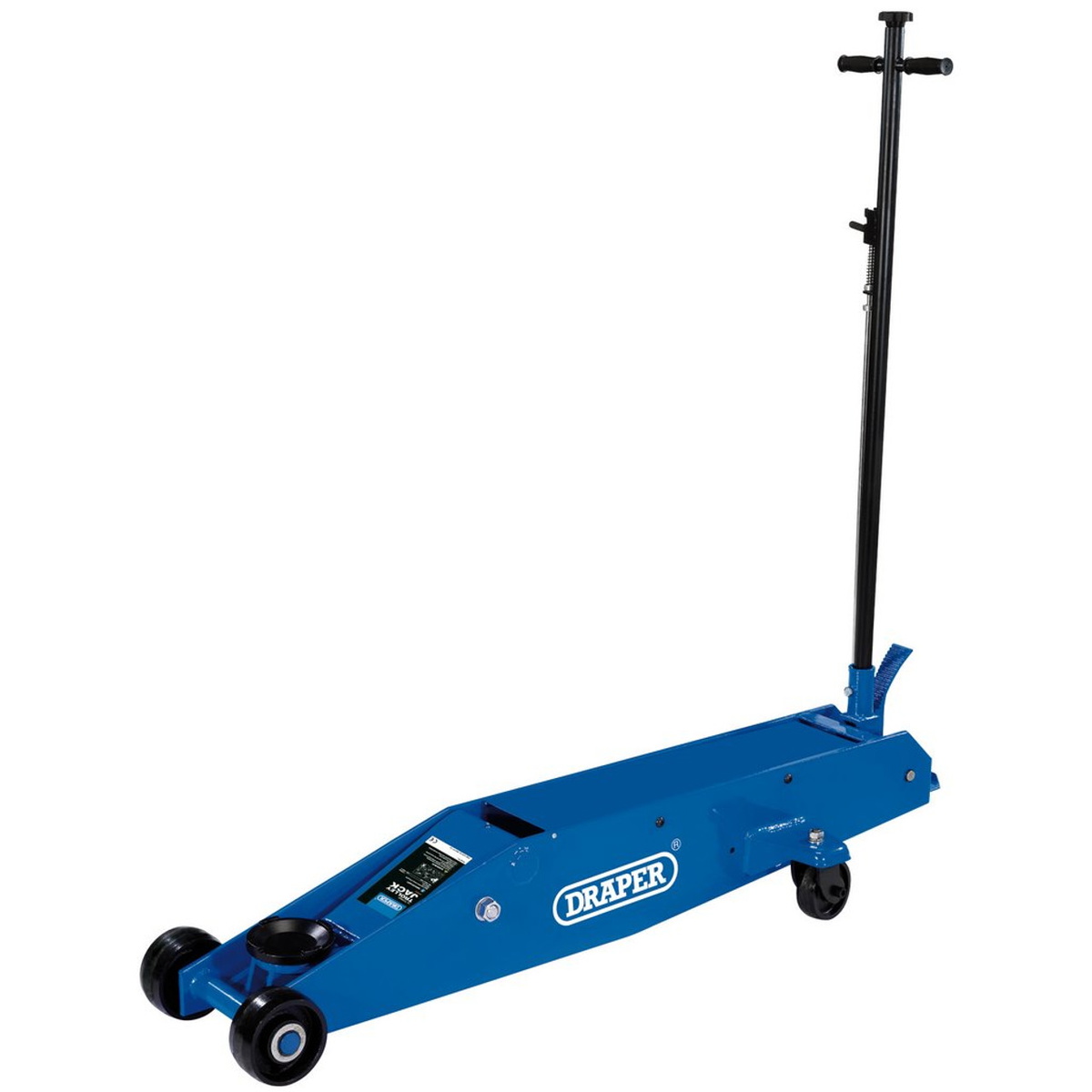

Lifting a heavy commercial vehicle or plant equipment demands a jack built for sustained, high-capacity work. The Draper 3494 Long Chassis Trolley Jack is rated to 10 tonne (10,000 kg) and manufactured to the EN1494 specification, giving workshops and professional operators the assurance of a certified, heavy-duty tool. A 'quick-lift' foot pedal rapidly raises the saddle to the vehicle jacking point, reducing manual pumping effort at the start of each lift. The large 130 mm diameter saddle aids accurate positioning beneath the jacking point, and the T-shaped handle incorporates a release valve that prevents accidental lowering once the load is raised. A dedicated safety valve prevents the jack from overloading. The locking facility allows the handle to be secured in three positions for safe, controlled operation. The long chassis measures 1,535 mm and the handle extends to 1,220 mm, giving the operator working reach under low-clearance vehicles. The lifting range spans 170 mm to 570 mm, accommodating a wide variety of vehicle heights. Rear swivelling castors fitted with a toe plate maximise manoeuvrability around the workshop floor. The jack weighs 125 kg and is supplied with a one-piece handle. It is certified to the current EN1494 standard, confirming it has been manufactured, tested, and certified to meet recognised safety requirements for mobile jacks.
Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 10 Tonne (10,000kg) |
|---|---|
| Chassis Dimensions | 1,535mm |
| Handle Length | 1,220mm |
| Max Height | 570mm |
| Min Height | 170mm |
| Nett Weight | 125kg |
| Saddle Diameter | 130mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
53128 | Draper 53128 SPRING | 1 Unit |
£14.43
£14.15
|
Add |
|
|
53132 | Draper 53132 CHECK RING | 1 Unit |
£8.54
£8.37
|
Add |
|
|
53133 | Draper 53133 SPACER SLEEVE | 1 Unit |
£10.23
£10.03
|
Add |
|
|
53134 | Draper 53134 O-RING | 1 Unit |
£10.66
£10.45
|
Add |
|
|
53136 | Draper 53136 PISTON TOP | 1 Unit |
£14.43
£14.15
|
Add |
|
|
53137 | Draper 53137 NYLON INSERT RING | 1 Unit |
£9.82
£9.63
|
Add |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 23817 Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 23817 | MCL-20_LongHydraulicTrolleyJack | 54635 | MCL-20_BatteryTrolleyJack | MCD-25 | MCR-20 |
| Type | Trolley Jack | Trolley Jack | ||||
A. The Draper 3494 has a rated lifting capacity of 10 tonne (10,000 kg).
A. The lifting range is 170 mm at its minimum height to 570 mm at its maximum height.
A. Yes. The Draper 3494 is manufactured, tested, and certified to the current EN1494 specification for mobile jacks.
A. The jack features a safety valve that prevents overloading, a T-shaped handle with an incorporated release valve to prevent accidental lowering, and a locking facility that allows the handle to be secured in three positions.
A. The correct capacity depends on the axle or gross weight of the vehicle being lifted. The Draper 3494 is rated to 10 tonne (10,000 kg), making it suitable for heavy commercial and plant applications. Always verify the vehicle's jacking requirements before use.
A. The chassis length is 1,535 mm, the handle length is 1,220 mm, and the saddle diameter is 130 mm. The jack weighs 125 kg and is supplied with a one-piece handle.
