Product Number: 27634

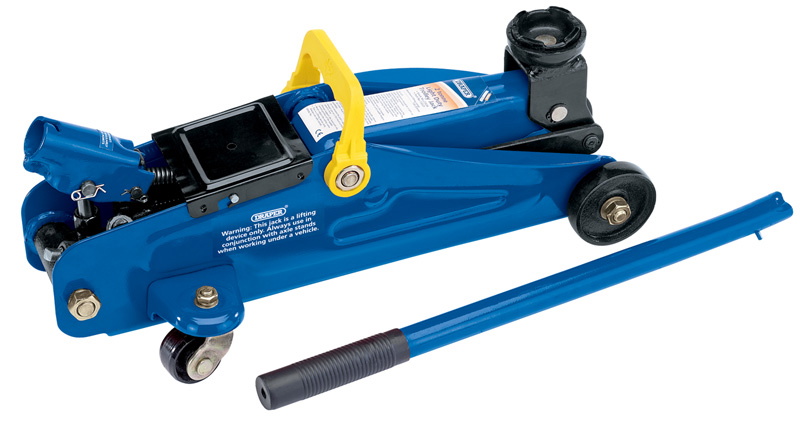

Lifting a vehicle in a confined workshop bay or from a compact storage space demands a jack that combines genuine portability with reliable capacity. The Draper 27634 is a short-chassis trolley jack rated to 2 tonne (2000 kg), designed specifically for environments where space is at a premium. Its compact, short-chassis construction keeps the overall chassis length to 440 mm, making it straightforward to manoeuvre into position and simple to store when not in use. The jack operates between a minimum height of 130 mm and a maximum height of 330 mm, giving a lift range suitable for raising most passenger cars and light vehicles. A large 47 mm diameter saddle aids accurate positioning beneath jacking points, whilst rear swivelling steel castors increase manoeuvrability on workshop floors. A built-in safety valve prevents the jack from being overloaded beyond its 2-tonne rated capacity, adding an important layer of protection during use. The unit is supplied with a one-piece handle measuring 425 mm in length, its net weight of 8.3 kg keeps it manageable for a single operator. The Draper 27634 is manufactured to EN1494 specification, the recognised European standard for mobile jacks and lifts. With its combination of compact dimensions, a meaningful lift range, an integrated safety valve, this jack is a practical choice for professional workshops and serious DIY users alike.
Compact, short chassis jack. Portable and compact design for easy storage. Large saddle aids positioning. Rear swivelling steel castors increase manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 2 Tonne (2,000kg) |
|---|---|
| Chassis Dimensions | 440mm |
| Handle Length | 425mm |
| Max Height | 330mm |
| Min Height | 130mm |
| Saddle Diameter | 47mm |
| Net Weight | 8.3kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
27641 | Draper 27641 FRONT WHEEL | 1 Unit |
£11.76
£11.53
|
Add |
|
|
27642 | Draper 27642 BUSH | 1 Unit |
£8.67
£8.50
|
Add |
|
|
27664 | Draper 27664 HANDLE | 1 Unit |
£18.15
£17.79
|
Add |
|
|
45889 | Draper 45889 HAND PRESSURE PIN | 1 Unit |
£8.62
£8.45
|
Add |
27634ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 23817 Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 23817 | 54635 | MCL-20_BatteryTrolleyJack | MCD-25 | MCL-20_LongHydraulicTrolleyJack | MCR-20 |
A. The Draper 27634 has a rated capacity of 2 tonne (2,000 kg).
A. The jack has a minimum height of 130 mm and a maximum height of 330 mm.
A. You should select a jack whose rated capacity exceeds the axle load of the heaviest end of your vehicle. For most passenger cars and light vehicles, a 2-tonne jack such as the Draper 27634 is typically sufficient, but always consult your vehicle handbook for axle weights before lifting.
A. The jack is fitted with a built-in safety valve that prevents it from being overloaded beyond its 2-tonne rated capacity.
A. It is manufactured to EN1494 specification, the recognised European standard for mobile jacks and lifts.
A. The jack is supplied with a one-piece handle measuring 425 mm in length.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
