Product Number: 03643

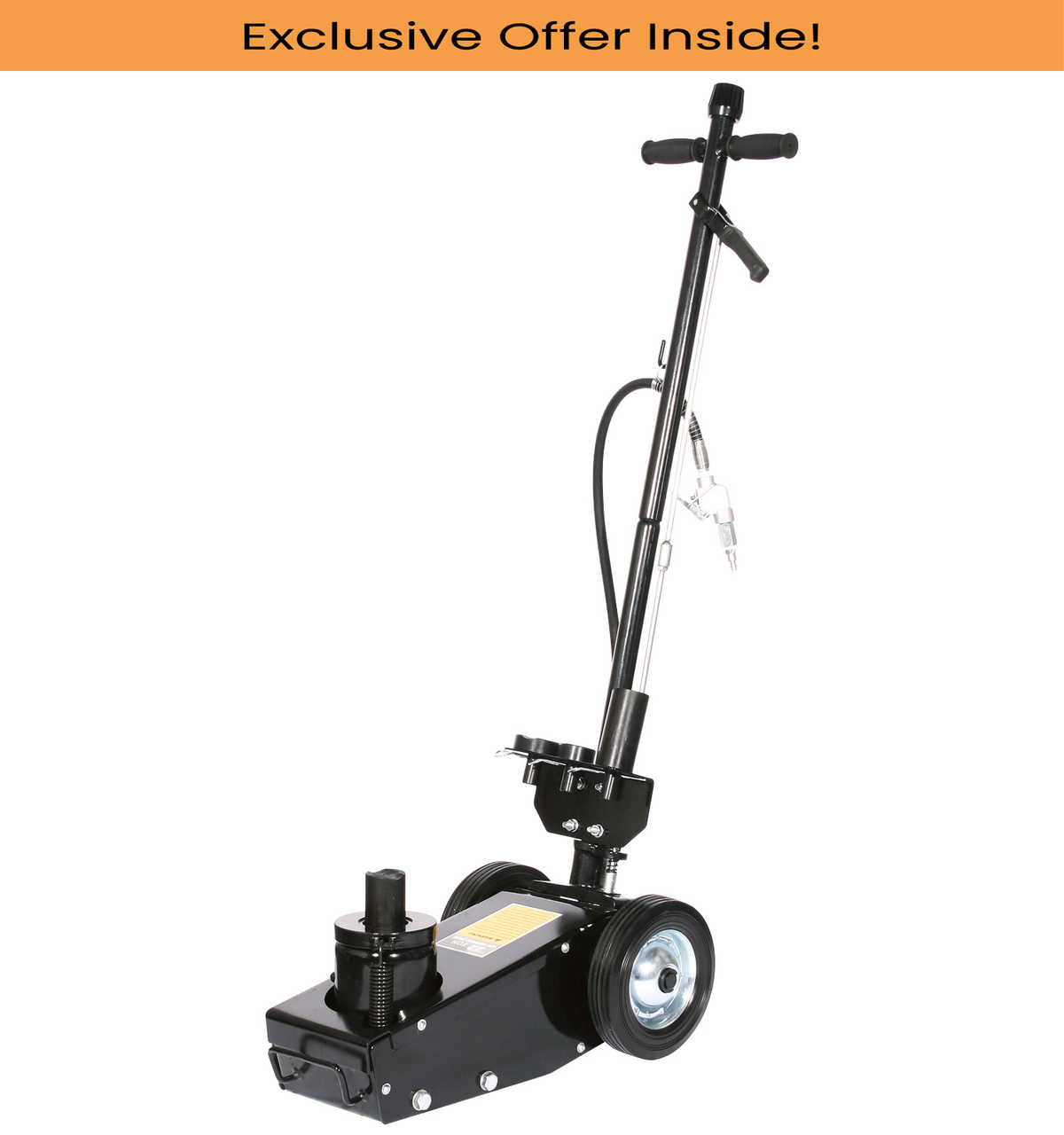

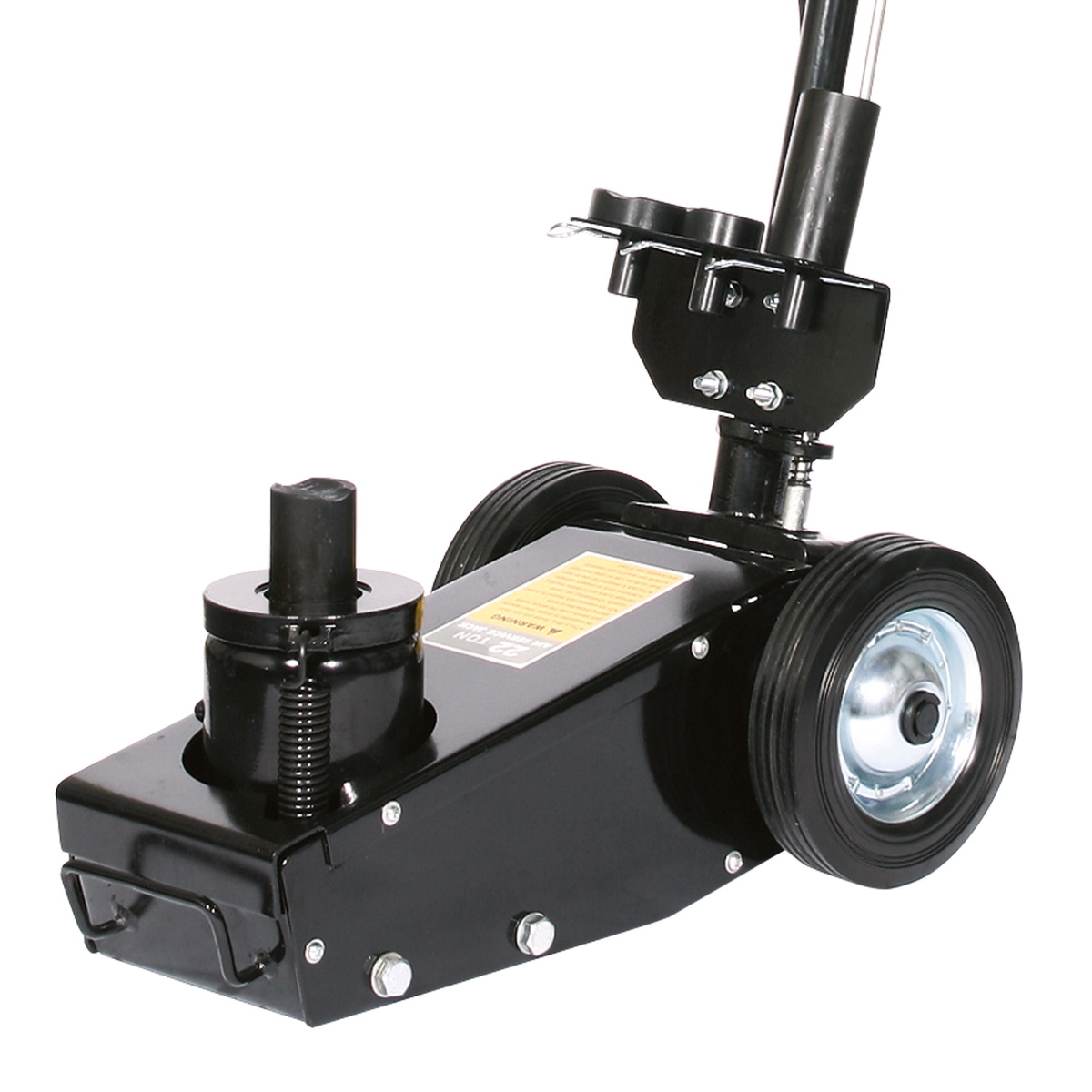

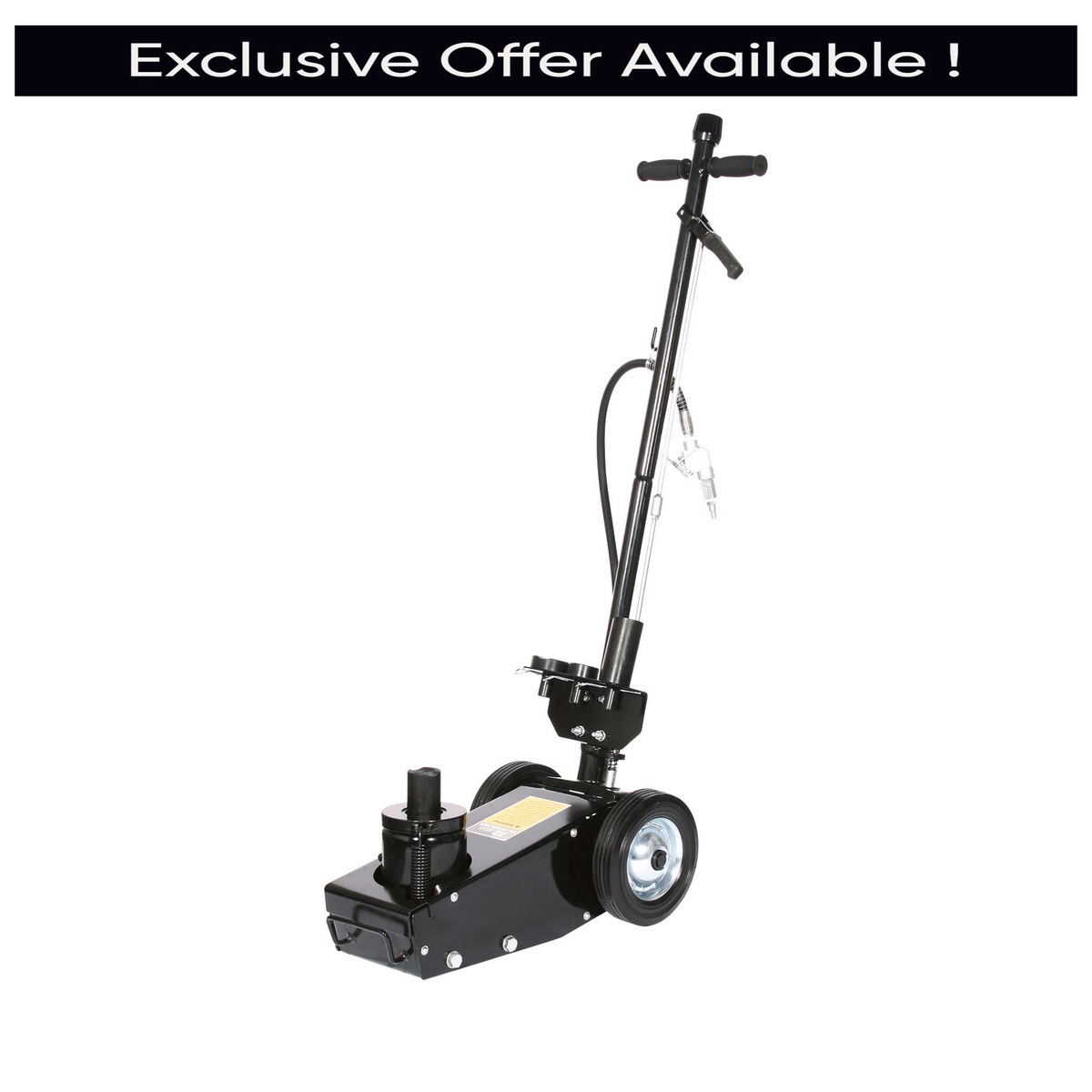

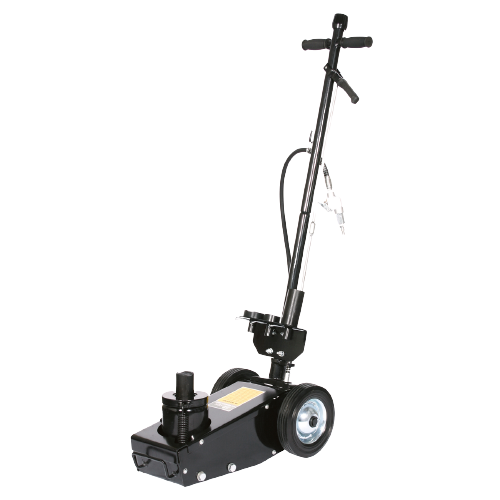

The SIP 03643 is a 22-tonne air floor jack designed for heavy-duty lifting across a range of demanding vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery. Controlled entirely by compressed air, it is built for professional garages and workshops where dependable, reliable support is essential.

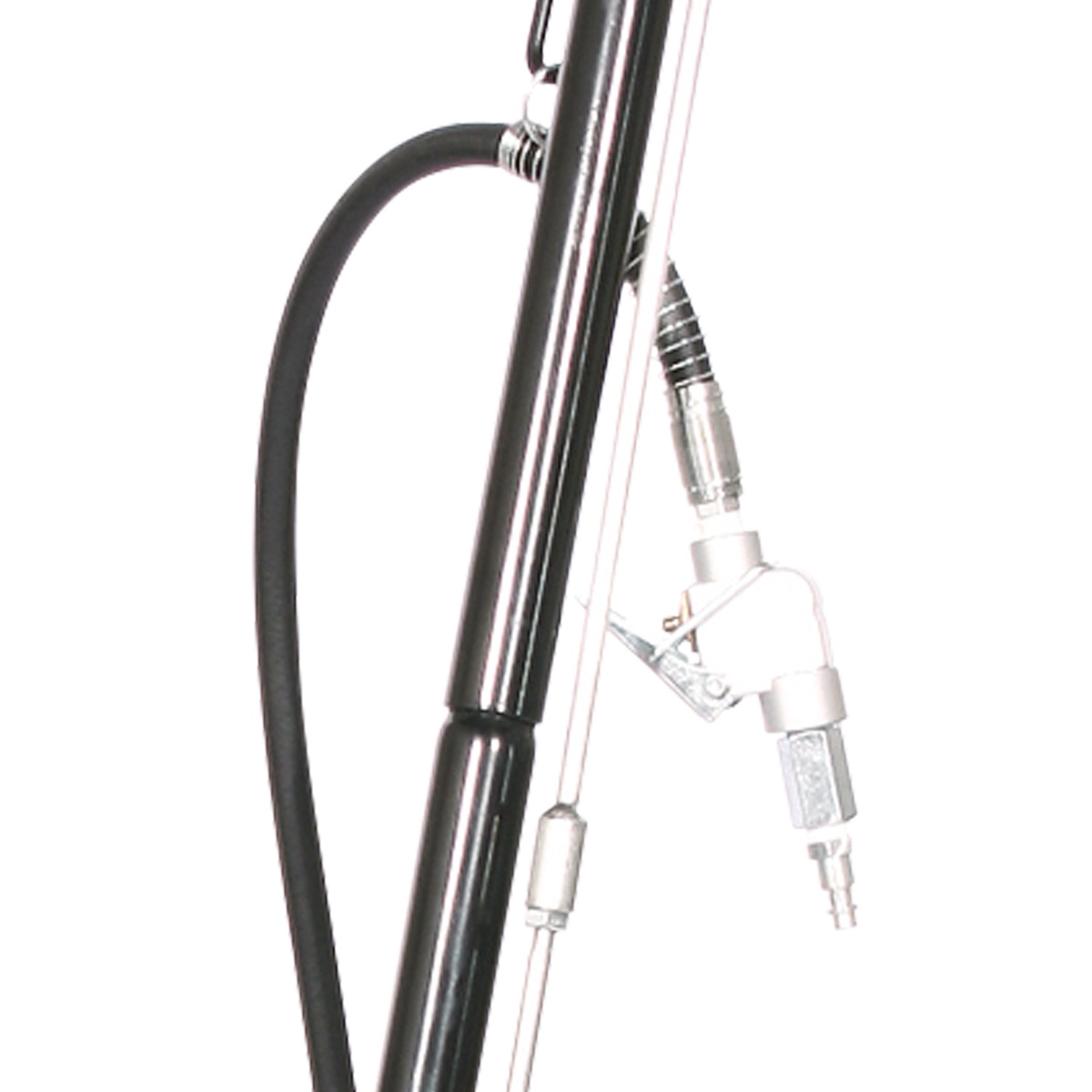

A low-profile design enables easier access beneath vehicles with lower clearances, while large non-marking rubber wheels allow the jack to be manoeuvred and positioned with ease regardless of vehicle type. The unit is manufactured from heavy-duty steel and incorporates an integrated air line hook and air control valve for streamlined operation. A 115mm screw extension adds further versatility when working with varying vehicle heights.
For operator safety, a built-in release knob enables vehicles to be lowered slowly and in a controlled manner, while an integrated handle lock prevents the jack from accidentally disengaging during use. The working pressure range of 102psi (7bar) to 145psi (10bar) and an average air consumption of 9.5CFM (269ltr/min) define the compressed air requirements. Lifting height is adjustable between 230mm and 555mm, with a ram stroke of 120mm. Four adaptor sizes are supplied: Ø110mm×50mm, Ø50mm×50mm, Ø20mm×50mm and Ø20mm×70mm, providing compatibility with a broad range of lifting points.
This product is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 22 Ton Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery, offering dependable and reliable support across all demanding applications. This compressed air-controlled jack is ideal for professional garages and workshops. A low-profile design offer easier access under vehicles, particularly those with lower clearances. In conjunction with the large non-marking rubber wheels, this jack is easy to manoeuvre and positioning regardless of the vehicle type. For optimal user safety, the 22 TON Air Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manor, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03643 |
|---|---|
| Weight Capacity | 22 TON |
| Min. Lifting Height | 230mm |
| Max. Lifting Height | 555mm |
| Ram Stroke | 120mm |
| Screw Extension | 115mm |
| Working Pressure | 102psi (7bar) - 145psi (10bar) |
| Av. Air Consumption | 9.50CFM (269ltr/min) |
| Adaptor Size | Ø 110mm x 50mm / Ø 50mm x 50mm / Ø 20mm x 50mm / Ø 20mm x 70mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
09844 | SIP 09844 WINNTEC Trolley Bottle Jack, Weight Capacity - 20 Tonne | 1 Unit |
£371.64
£364.35
|
Add |
|
02347 | SIP 02347 1ltr Advanced Hydraulic Oil | 1 Unit |
£11.18
£10.96
|
Add |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 03656 | 03658 | 03660 | 03667 |
| Warranty | 24 | 24 | 24 | 24 |
| Type | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack |
| Lifting Capacity (Tonne) | 8 | 12 | 20 | 4 |
| Min. Lifting Height (mm) | 205 | 210 | 242 | 183 |
| Max. Lifting Height (mm) | 400 | 415 | 470 | 354 |
A. The SIP 03643 has a maximum weight capacity of 22 tonnes, making it suitable for heavy-duty lifting of vans, trucks, buses, construction equipment and agricultural machinery.
A. The SIP 03643 lifts from a minimum height of 230mm up to a maximum of 555mm, with a ram stroke of 120mm and a 115mm screw extension for additional height adjustment.
A. The SIP 03643 operates at a working pressure of 102psi (7bar) to 145psi (10bar) and has an average air consumption of 9.5CFM (269ltr/min).
A. Four adaptor sizes are provided: Ø110mm×50mm, Ø50mm×50mm, Ø20mm×50mm and Ø20mm×70mm, to accommodate a range of vehicle lifting points.

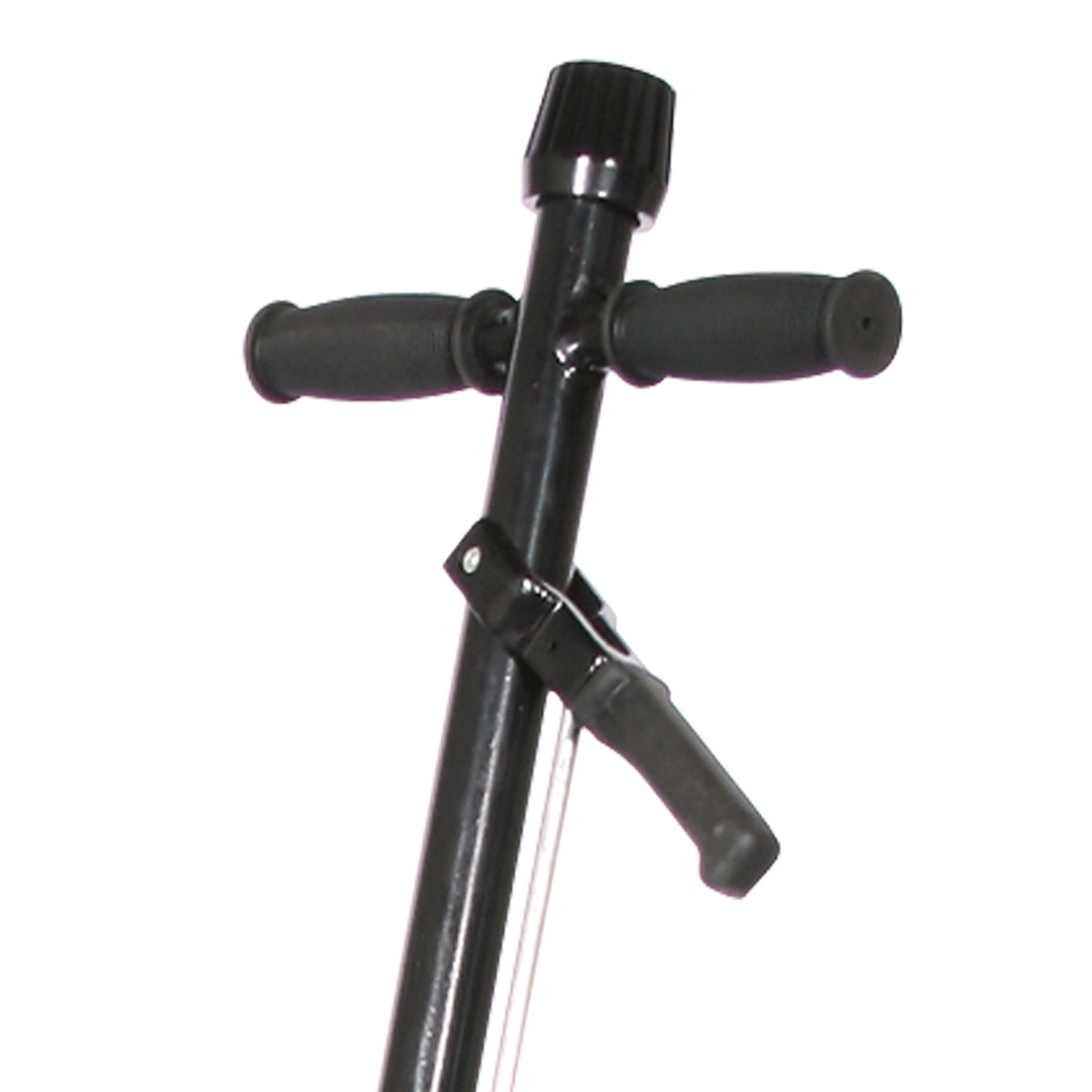

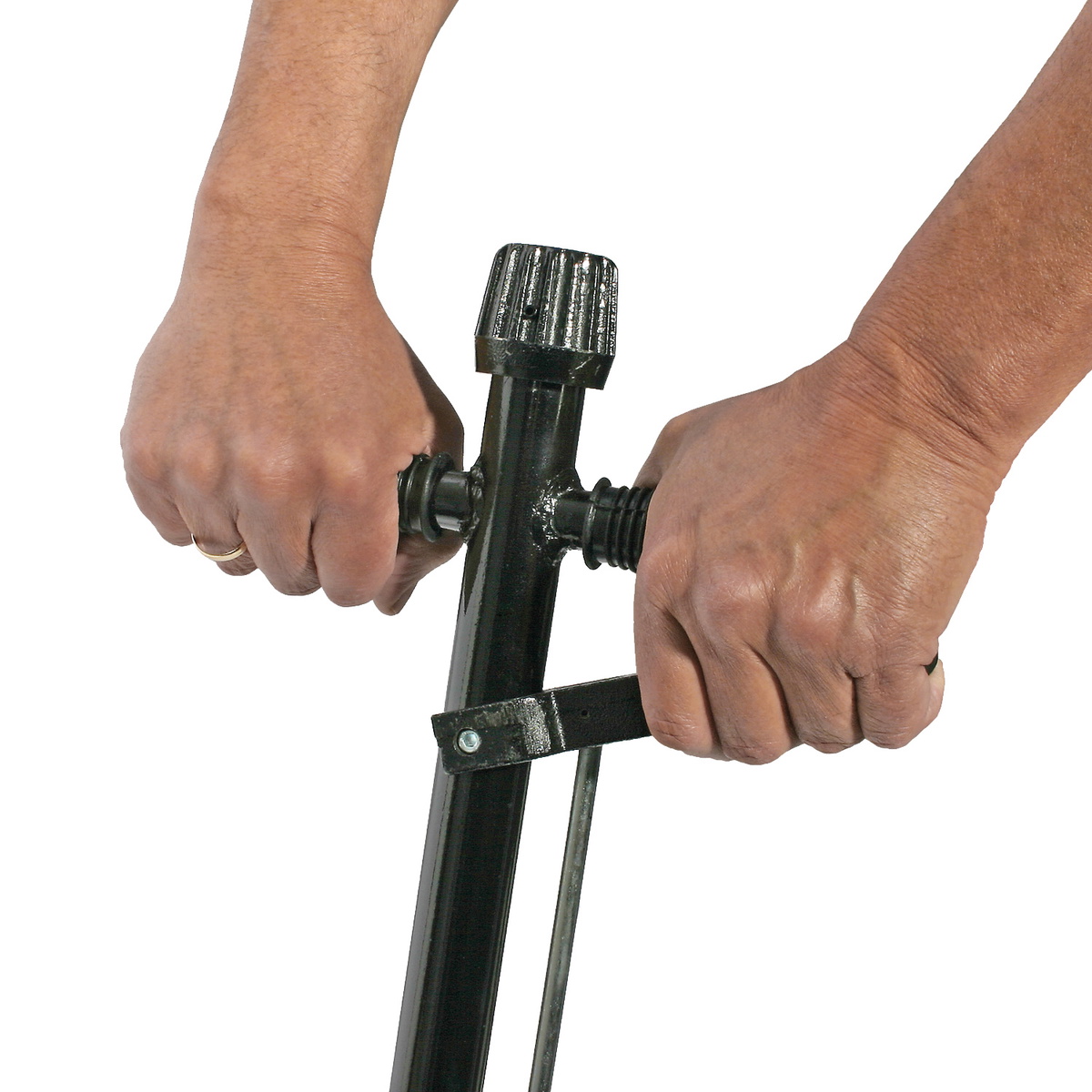

A. The SIP 03643 is fitted with a built-in release knob that allows vehicles to be lowered slowly in a controlled manner, and an integrated handle lock that prevents the jack from accidentally disengaging during use.
A. Yes. The SIP 03643 is specifically described as ideal for professional garages and workshops, and its 22-tonne capacity covers demanding applications including commercial vehicles, construction equipment and agricultural machinery.
A. The SIP 03643 is covered by the SIP 2-Year Standard Silver Warranty.
