Product Number: 16783

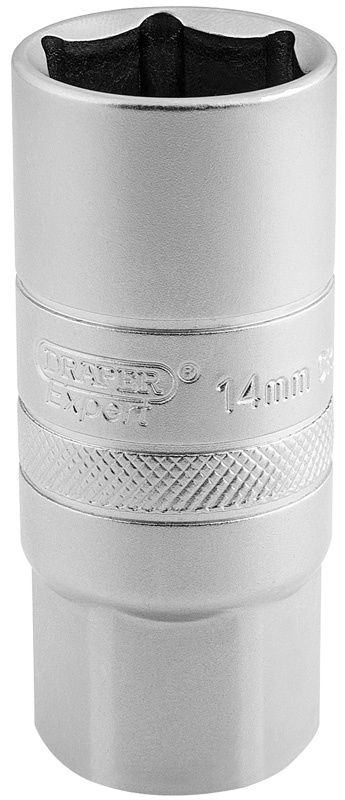

Removing and refitting spark plugs without damaging the porcelain insulator or electrode demands a socket engineered specifically for the task. The Draper Expert 16783 is a 6-point deep socket designed for 14mm thread spark plugs, driven by a 1/2" square drive. A rubber insert sits inside the socket to grip and protect the plug during extraction and installation, preventing both ceramic fractures and accidental drops into the engine bay. The socket is machined from chrome vanadium steel that has been hardened, tempered, and finished with a micro satin chrome plating — a combination that resists corrosion, maintains dimensional accuracy under torque, and reduces glare in the workshop. At 65mm in length, the socket provides the reach required to access recessed plug wells found on many modern cylinder heads, while the 21mm hex ensures a positive fit over the plug body. A knurled ring around the socket body gives additional manual grip when running the plug in by hand before applying the drive tool. Supplied as a single socket, it is equally suited to professional workshop use and committed DIY maintenance.
Expert Quality, 6 point deep socket with a rubber insert for plug protection and retention. Manufactured from chrome vanadium steel hardened and tempered with a micro satin finish. Socket length 65mm. Each socket has a knurled ring for extra grip.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 16781 10mm Thread 6 Point Satin Chrome Spark Plug Socket, 1/2" Sq. Dr., 16mm
£12.08
£11.84
2% OFF
|
Draper 16775 10mm Thread 6 Point Satin Chrome Spark Plug Socket, 3/8" Sq. Dr., 16mm
£11.59
£11.36
2% OFF
|
Draper 16782 12mm Thread 6 Point Satin Chrome Spark Plug Socket, 1/2" Sq. Dr., 18mm
£12.18
£11.94
2% OFF
|
Draper 16776 12mm Thread 6 Point Satin Chrome Spark Plug Socket, 3/8" Sq. Dr., 18mm
£11.61
£11.38
2% OFF
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01063 | 01064 | 01065 | 51766 | 51767 | 16780 | 16781 | 16775 | 16778 | 16772 | 16784 | 16782 | 16776 | 16779 | 16773 |
A. The Draper Expert 16783 is designed for 14mm thread spark plugs. The socket has a 21mm hex and is driven by a 1/2" square drive.
A. A rubber insert fitted inside the socket grips the spark plug body during removal and installation, protecting the porcelain insulator from cracking and retaining the plug within the socket to prevent it from being dropped into the engine.
A. The socket measures 65mm in length. This extended depth allows the socket to reach spark plugs seated in deep recessed wells, which are common on many modern engines.
A. The socket is manufactured from chrome vanadium steel that has been hardened and tempered, then finished with a micro satin chrome plating to resist corrosion and reduce surface glare.
