Product Number: 70561
Workshop pressing tasks demand equipment that combines rigidity, reach, and repeatable accuracy — the Draper Expert Hydraulic Floor Press 30 Tonne (SKU 70561) addresses all three. The robot-welded one-piece frame provides a stable working platform, while dustproof covers fitted to the top of the frame protect the pump and ram from contamination, helping to extend their service life. The press operates via a hand pump for manual hydraulic operation, with a sliding ram delivering controlled pressing force up to 30 tonnes. The ram carries a 220mm stroke and a 50mm diameter, with a scale reading of 145mm – 0mm – 145mm to help the operator monitor displacement. A 100mm gauge diameter provides clear pressure reading during operation. The rack-and-pinion table is adjustable across 12 height positions spanning a working range of 25–850mm, with lifting and lowering managed by a winch for safe, controlled repositioning. The overall height is 1,800mm and the frame dimensions are 1,685mm (H) x 600mm (W) x 148mm (D), with a net weight of 157kg. The press is supplied with eight press pins with individual capacities ranging from 2 to 15 tonnes, plus two flat V-shaped pressing blocks to suit a variety of workpiece geometries. A removable parts tray is located in the base of the frame, keeping pins and accessories organised at the point of use.
Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat V-shaped pressing blocks.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 30 Tonne |
|---|---|
| Gauge diameter | 100mm |
| Ram stroke | 220mm |
| Ram scale | 145mm - 0mm - 145mm |
| Ram diameter | 50mm |
| Table height | 25-850mm |
| Press pin capacity | 2-15 Tonnes |
| Overall height | 1800mm |
| Frame dimensions | (H) 1685 x (W) 600 x (D) 148mm |
| Weight (net) | 157kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YK20FAH Air/Hydraulic Floor Press 20 Tonne
£626.51
£614.23
2% OFF
Free delivery in UK Mainland
|
Draper 35582 Pneumatic/Hydraulic Floor Press, 50 Tonne
£2,069.36
£2,028.78
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|

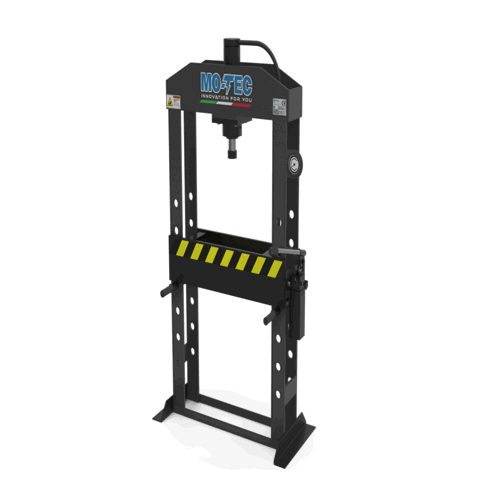

| PRODUCT NUMBER | MPM - 150 | MPE-100 | MPM-60 | YK20FAH | YK20F | 35582 |
| Stroke Length(mm) | 180 | 150 | 185 | 185 | 215 | |
| Working Range(mm) | 1100 | 330 | 1018 | 1018 | 780 | |
| Working Table Width(mm) | 150 | 550 | 70 | 542 | 750 | |
A. The Draper Expert Hydraulic Floor Press (SKU 70561) has a maximum pressing capacity of 30 tonnes.
A. The table is adjustable across 12 positions, covering a working height range of 25mm to 850mm. The table is raised and lowered using a winch.
A. The press is supplied with eight press pins with individual capacities ranging from 2 to 15 tonnes, along with two flat V-shaped pressing blocks.
A. The ram has a stroke of 220mm and a diameter of 50mm. The ram scale reads 145mm – 0mm – 145mm to assist in monitoring displacement during operation.
A. The frame is robot-welded as a one-piece construction to maximise rigidity and stability. Dustproof covers are fitted to the top of the frame to prevent dust from entering the pump and ram, helping to increase their service life.
A. The press stands 1,800mm tall overall. Frame dimensions are 1,685mm (H) x 600mm (W) x 148mm (D), and the net weight is 157kg.
