Product Number: 02254

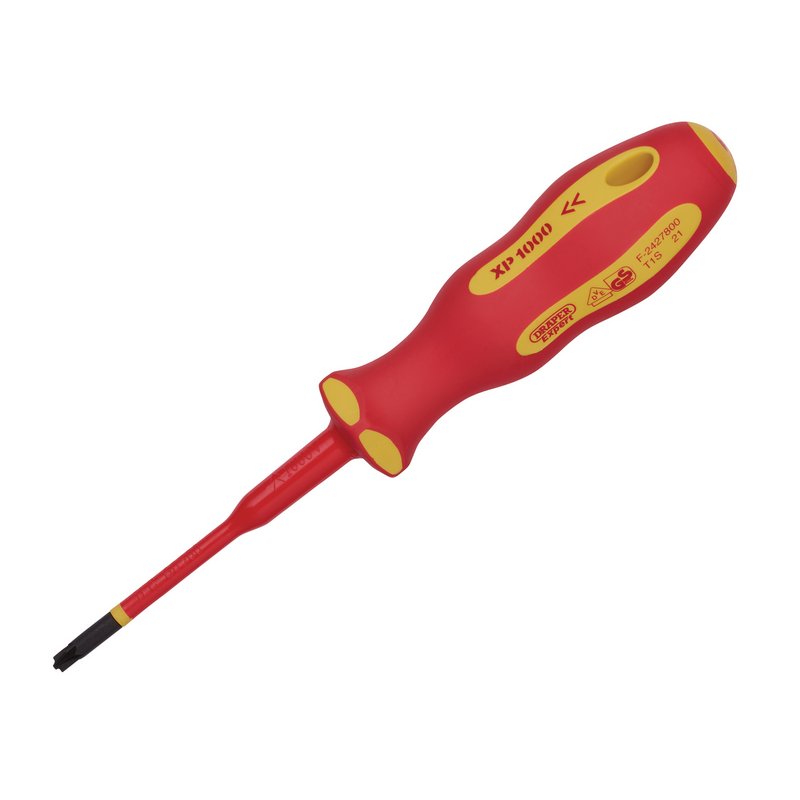

Electrical work on live terminals, distribution units and consumer boards demands tools that protect the user without compromising access. The Draper Expert XP1000® Slimline PZ/SL Type VDE Screwdriver addresses this directly: its insulated sheath shares the same diameter as the blade, allowing the tip to reach deep-seated screws in terminals and switchboards where a conventionally shouldered screwdriver simply cannot fit. It is specifically designed for use with electrical screws on RCBs and MCBs within distribution and consumer units. Safety is built into the construction at every level. The patented dual-layer insulation means any damage to the outer layer becomes immediately and highly visible, providing an at-a-glance integrity check before use. Each screwdriver is individually tested to 10,000V and certified as suitable for working on live circuits of 1,000V AC and 1,500V DC. Manufacture and individual certification comply with EN 60900. The SCVM steel blade is hardened, tempered and chemically blackened, with a precision-machined PZ/SL No.1 tip engineered for an exact fit to prevent screw damage. At 80mm, the blade length is well suited to the confined spaces typical of consumer unit work. The ergonomic bi-material soft grip handle enables free spinning in the palm for rapid screw tightening, whilst still allowing full torque transfer when required. Flat sides on the handle prevent the tool from rolling on a work surface. Supplied as a single XP1000® Slimline PZ/SL Type VDE Interchangeable Screwdriver Blade, No.1 x 80mm.
Expert quality XP1000® screwdriver with an insulated sheath the same diameter as the blade, enabling access to deep-seated screws found in terminals and switchboards. The patented dual-layer insulation ensures damage is highly visible. Specifically designed for use with electrical screws on RCB and MCBs within distribution and consumer units. Individually tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC. Ergonomic soft grip bi-material handle allows free spinning in the palm of your hand to quickly tighten screws, but also allows transfer of torque when needed. Designed with flat sides to prevent them from rolling. SCVM steel blade hardened, tempered and chemically blackened with a precision-machined tip for exact fit to prevent screw damage.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Blade Length | 80mm |
|---|---|
| Blade Tip | No.1 |
| Tip Type | PZ/SL Type |
| Insulation | VDE |
| Insulation Testing | Tested to 10,000V, suitable for working on live circuits of 1,000V AC and 1,500V DC |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02165 | 02163 | 16419 | 24745 | 83721 | 34994 |
A. The screwdriver is individually tested to 10,000V and is certified as suitable for working on live circuits of 1,000V AC and 1,500V DC in accordance with EN 60900.
A. The insulated sheath is designed to match the blade diameter specifically to enable access to deep-seated screws found in terminals and switchboards, where a wider shoulder would obstruct entry.
A. The dual-layer construction ensures that any damage to the outer insulation layer is highly visible, allowing the user to identify compromised protection before working on live circuits.
A. It is specifically designed for use with electrical screws on RCBs and MCBs within distribution and consumer units.
A. The blade is manufactured from SCVM steel, hardened, tempered and chemically blackened, with a precision-machined PZ/SL No.1 tip for an exact fit to prevent screw damage.
A. The screwdriver is manufactured and individually certified to EN 60900, the standard for hand tools for live working up to 1,000V AC and 1,500V DC.
