Product Number: 3015CXHV

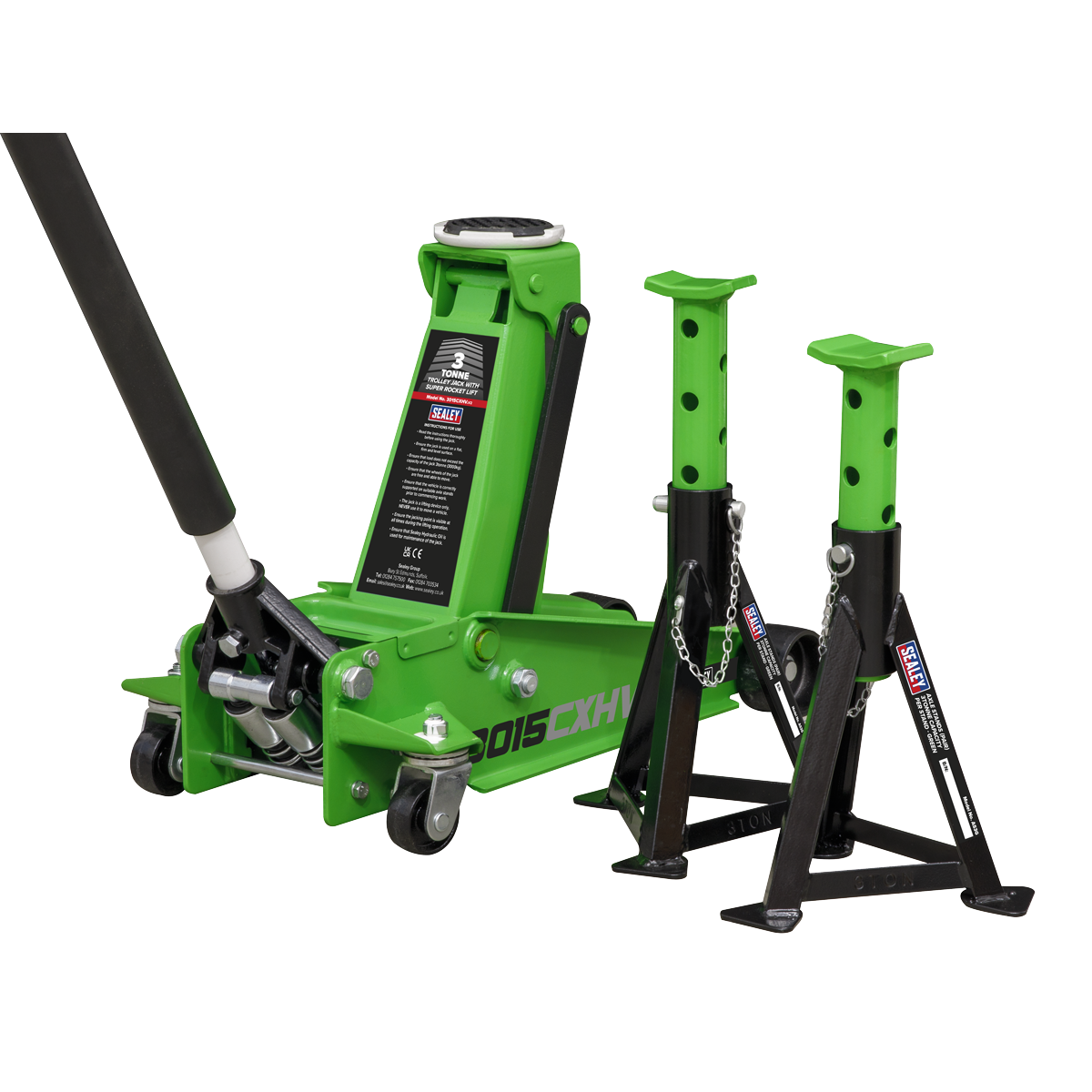

Getting a trolley jack under a low-profile vehicle quickly and safely is a real challenge on a busy workshop floor. The Sealey 3015CXHV addresses this with a twin piston Super Rocket Lift that brings the lifting arm straight into contact with the jacking point without wasted pump strokes, and a minimum saddle height of just 120mm. The maximum saddle height is 456mm, giving a working range of 290mm to 435mm making it suitable for loaded vans up to 3.5 tonne GVW. The single-piece hydraulic unit features a heavy chassis design (maximum chassis height 162mm) and is 680mm long, weighing 31kg. A universal joint release mechanism allows safer, more controlled lowering. Safety is further supported by a built-in overload valve and a pump-through valve that prevents the handle locking at maximum ram extension. Polyurethane wheels aid manoeuvrability and help protect the workshop floor. This kit is supplied in Hi-Vis livery complete with a pair of pin type axle stands rated at 3 tonne (3000kg) per stand 6 tonne (6000kg) per pair. An optional jacking pad is available separately under model JP17. Backed by a 1-year guarantee in addition to your statutory rights (excludes general wear, tear and misuse).
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

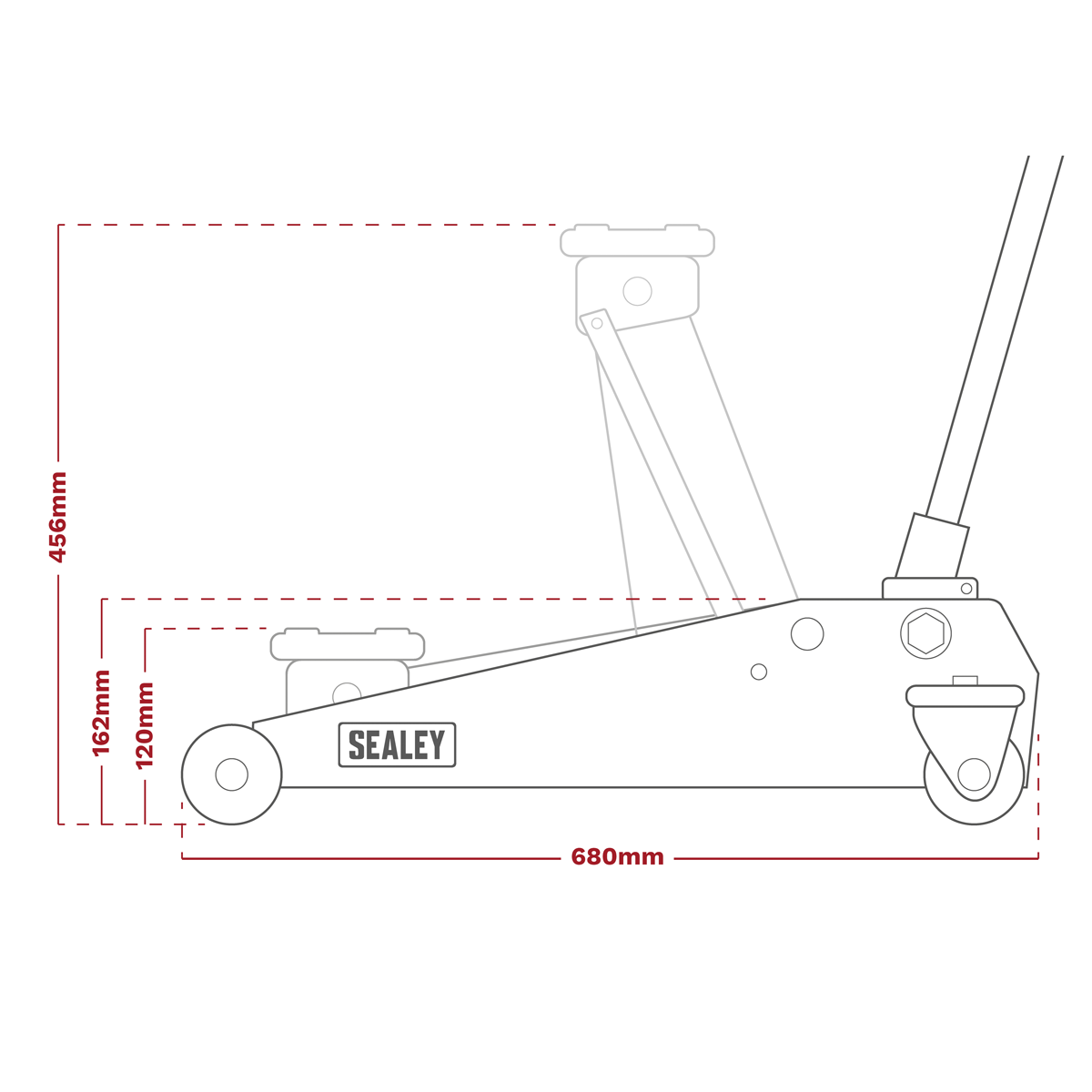

| Model No | 3015CXHV |
|---|---|
| Brand | Sealey |
| Jack Specification | |
| Minimum Saddle Height | 120mm |
| Capacity | Jack - 3 Tonne, Axle Stands 3 Tonne per Stand |
| Maximum Saddle Height | 456mm |
| Maximum Chassis Height | 162mm |
| Length | 680mm |
| Weight | 31kg |
| Consumable Parts | JP17 |
| Axle Stand Specification | |
| Minimum Working Height | 290mm |
| Maximum Working Height | 435mm |
| Nett Weight | 36.5kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
JP30 | Sealey JP30 Safety Rubber Jack Pad - Type B for Sealey 2001LE Series, 3015CXD, 3015CXHV & 3001CXP Jacks | 1 Unit |
£11.67
£11.44
|
Add |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey Trolley Jack & Axle Stands Deal - Low Profile Rocket Lift + Jack Stand
£813.84
£797.88
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 23817 Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
SIP 09702 WINNTEC Turbo-Lift Trolley Jack, Weight Capacity - 3 Tonne
£207.34
£203.27
2% OFF
Free delivery in UK Mainland
|
Draper 28464 Expert Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | JS1COMBO1 | 3010CX | 23817 | 09702 | 28464 | MCL-20_BatteryTrolleyJack |
| Warranty | 12 | 36 | ||||
| Type | Jack/Press/Lifting | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | |
| Capacity | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | |||||
| Brand | Sealey | |||||
| Length (mm) | 130 | 120 | ||||
| Model No | 1 | 3010CX | ||||
| Weight (kg) | 34.5 | |||||
| Show More | ||||||
A. The trolley jack has a 3 tonne capacity. The supplied pin type axle stands are rated at 3 tonne (3000kg) per stand, or 6 tonne (6000kg) per pair.
A. The minimum saddle height is 120mm and the maximum is 456mm. The working height range is 290mm minimum to 435mm maximum.
A. The twin piston Super Rocket Lift brings the lifting arm straight into contact with the jacking point, reducing the number of pump strokes needed before lifting begins.
A. Yes, it is described as ideal for loaded vans up to 3.5 tonne GVW.
A. It features a universal joint release mechanism for controlled lowering, a safety overload valve, and a pump-through valve to prevent the handle locking at maximum ram extension.
A. Yes, a jacking pad is available as an optional extra under model number JP17.
A. It is backed by a 1-year guarantee in addition to your statutory rights. The guarantee excludes general wear, tear, and misuse.
A. Yes, alternative products that perform a similar function include the 1153CX, 1153CXHV, 1153SUV, and 3000CXD. Please refer to those listings to compare specifications.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
