Product Number: 24276

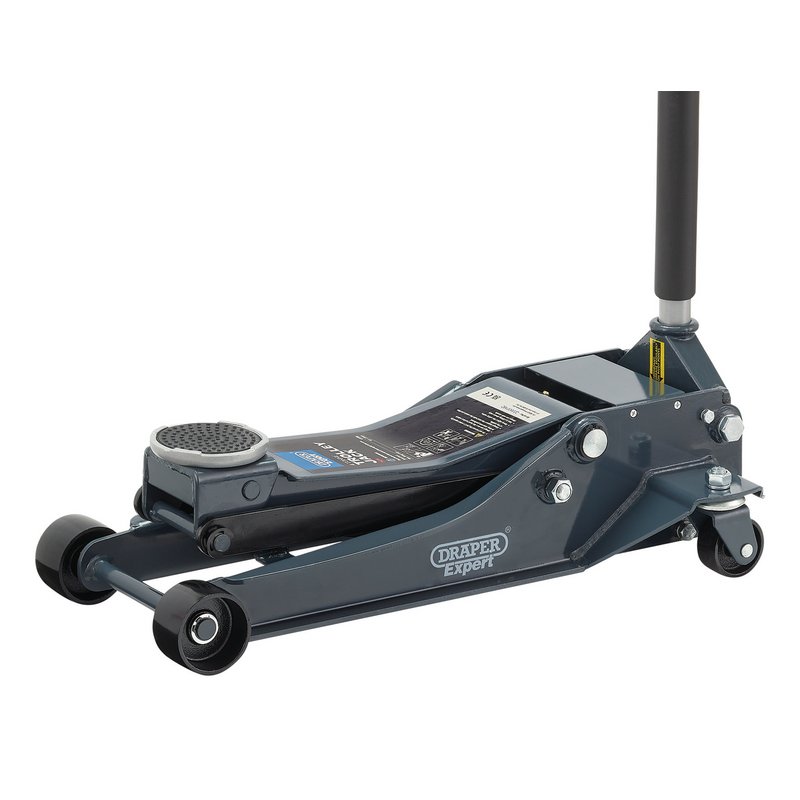

Working on lowered vehicles or sports cars presents a clear challenge: standard trolley jacks frequently cannot achieve the clearance required to slide beneath the sill. The Draper Expert Professional Low Profile Garage Trolley Jack addresses this directly with a minimum lifting height of 107mm, making it suited to vehicles with reduced ground clearance. The jack is built around a heavy-duty chassis and uses a powerful twin piston pump to deliver a fast lift across a 107–515mm range, requiring just 6.5 full pumps to reach maximum height. Rear swivelling castors provide manoeuvrability around the workshop floor. A safety valve prevents the jack from operating beyond its rated 4-tonne capacity, and the unit is manufactured to EN1494 specification. Attention to vehicle protection is evident throughout the design. The integrated rubber saddle pad, measuring 116mm in diameter, prevents damage to the underside of the vehicle during lifting. The EVA foam handle cover guards against accidental panel contact, while the knurled handle surface enhances grip and reduces the risk of slippage during operation. The two-piece handle extends to 1,270mm in length, and the overall chassis length is 700mm. Complete weight of the unit is 45kg. Supplied as one Draper Expert Professional Low Profile Garage Trolley Jack, 4 Tonne.
This low entry trolley jack is ideal for vehicles with a reduced clearance height. Heavy-duty chassis with a powerful twin piston pump for a fast lift, capable of reaching a maximum height of 515mm. The knurled handle enhances grip to prevent slippage. The EVA foam handle cover and the integrated rubbler saddle pad help prevent damage to the vehicle. There is a safety valve to prevent the jack from overloading. Supplied with a two-piece handle.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 4 Tonne |
|---|---|
| Minimum height | 107mm |
| Maximum height | 515mm |
| Saddle diameter | 116mm |
| Handle length | 1,270mm |
| Chassis length | 700mm |
| Weight (net) | 45kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
24276ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper Expert 24276 has a lifting range of 107mm minimum to 515mm maximum, making it well suited to vehicles with reduced ground clearance.
A. The jack has a rated capacity of 4 tonnes. A safety valve is incorporated to prevent the jack from operating beyond this limit.
A. The twin piston pump delivers a fast lift, reaching the maximum height of 515mm in 6.5 full pumps.
A. Yes. An integrated rubber saddle pad (116mm diameter) protects the underside of the vehicle, and an EVA foam cover on the handle helps prevent accidental damage to bodywork and panels.
A. The Draper Expert 24276 is manufactured to EN1494 specification.
A. The product is supplied with one Draper Expert Professional Low Profile Garage Trolley Jack, 4 Tonne, fitted with a two-piece handle.
