Product Number: 31318

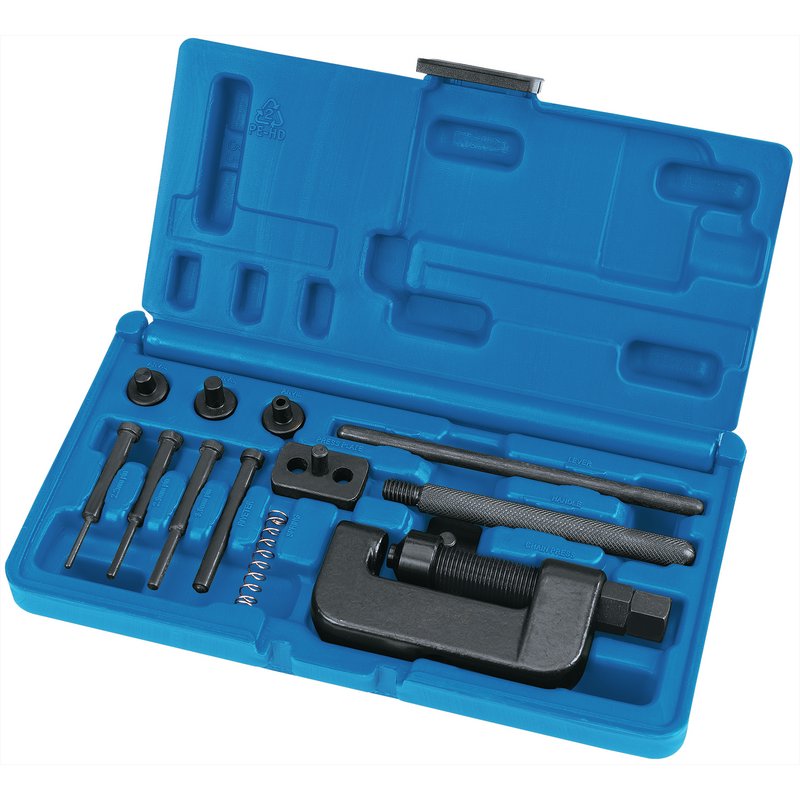

Maintaining or replacing a motorcycle drive chain requires precision tools capable of handling the full range of chain sizes in service — from narrow cam chains to heavy-duty final drive chains. The Draper Expert 31318 Motorcycle Chain Splitter and Riveter Kit is designed for splitting chains from No.25 cam chains through to No.520 motorcycle final drive chains, making it suitable for a broad spectrum of chain maintenance tasks on motorcycles and small-engine equipment. The kit functions through a main press body accepting interchangeable press pins, press plates, and press anvils, allowing the user to drive out and re-press chain rivets with controlled force. Three press pins are included — 2.2mm, 2.9mm, and 3.8mm — to suit different chain pitches and pin diameters. Upper and lower guides are provided for use with the 2.2mm press pin, and a rivet tip spreader enables the cold-staking of replacement rivets. Please note: to successfully press the rivet from heavy-duty 520 final drive chains, the rivet head must be ground off prior to pressing. The complete kit comprises a main press body, clamp and pressure screw handle, sliding T-bar, two press plates, two press anvils, three press pins (2.2mm, 2.9mm, 3.8mm), a rivet tip spreader, upper and lower guides for the 2.2mm press pin, and a spring for the press pins. All components are display packed in a blow-mould storage case for organised storage and transport.
Expert Quality, for splitting chains from No.25 cam chains through to No.520 motorcycle final drive chains. Please note, to successfully press the rivet from heavy duty 520 drive chains, the rivet head must be ground off first. in blow mould storage case.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
51182 | Draper 51182 2.2MM PIN FOR CBRK3 | 1 Unit |
£12.82
£12.57
|
Add |
|
|
51184 | Draper 51184 2.9MM PIN FOR CBRK3 | 1 Unit |
£19.97
£19.58
|
Add |
|
|
51275 | Draper 51275 3.8MM PIN FOR CBRK3 | 1 Unit |
£12.83
£12.58
|
Add |
31318ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey CLA109DL Motorcycle Chain & Disc Lock 10.5mm x 1500mm 4 Star ART Approved
£50.79
£49.79
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 30834 | VS779 | VS1804 | MS005 | CLA109DL | 01826 |
| Type | Motorcycle Service Tool | Motorcycle Service Tool | Motorcycle Service Tool | Motorcycle Service Tool | Motorcycle Service Tool | Motorcycle Service Tool |
| Brand | Sealey | Sealey | Sealey | Sealey | ||
| Length (mm) | 265 | 28 | 1500 | |||
| Model No | VS779 | VS1804 | MS005 | CLA109DL | ||
| Nett Weight | 0.83kg | 0.092kg | 0.11kg | 0.00kg | ||
| Weight (kg) | 83 | 092 | 11 | 00 | ||
A. The kit is designed for splitting chains from No.25 cam chains through to No.520 motorcycle final drive chains.
A. Yes, however the rivet head must be ground off first before the rivet can be successfully pressed from heavy-duty 520 drive chains.
A. Three press pins are supplied: 2.2mm, 2.9mm, and 3.8mm, to accommodate different chain pitches and pin diameters.
A. The kit contains a main press body, clamp and pressure screw handle, sliding T-bar, two press plates, two press anvils, three press pins (2.2mm, 2.9mm, 3.8mm), a rivet tip spreader, upper and lower guides for the 2.2mm press pin, a spring for the press pins, and a blow-mould storage case.
A. Yes, all components are display packed in a blow-mould storage case for organised storage and transport.
