Product Number: 06803

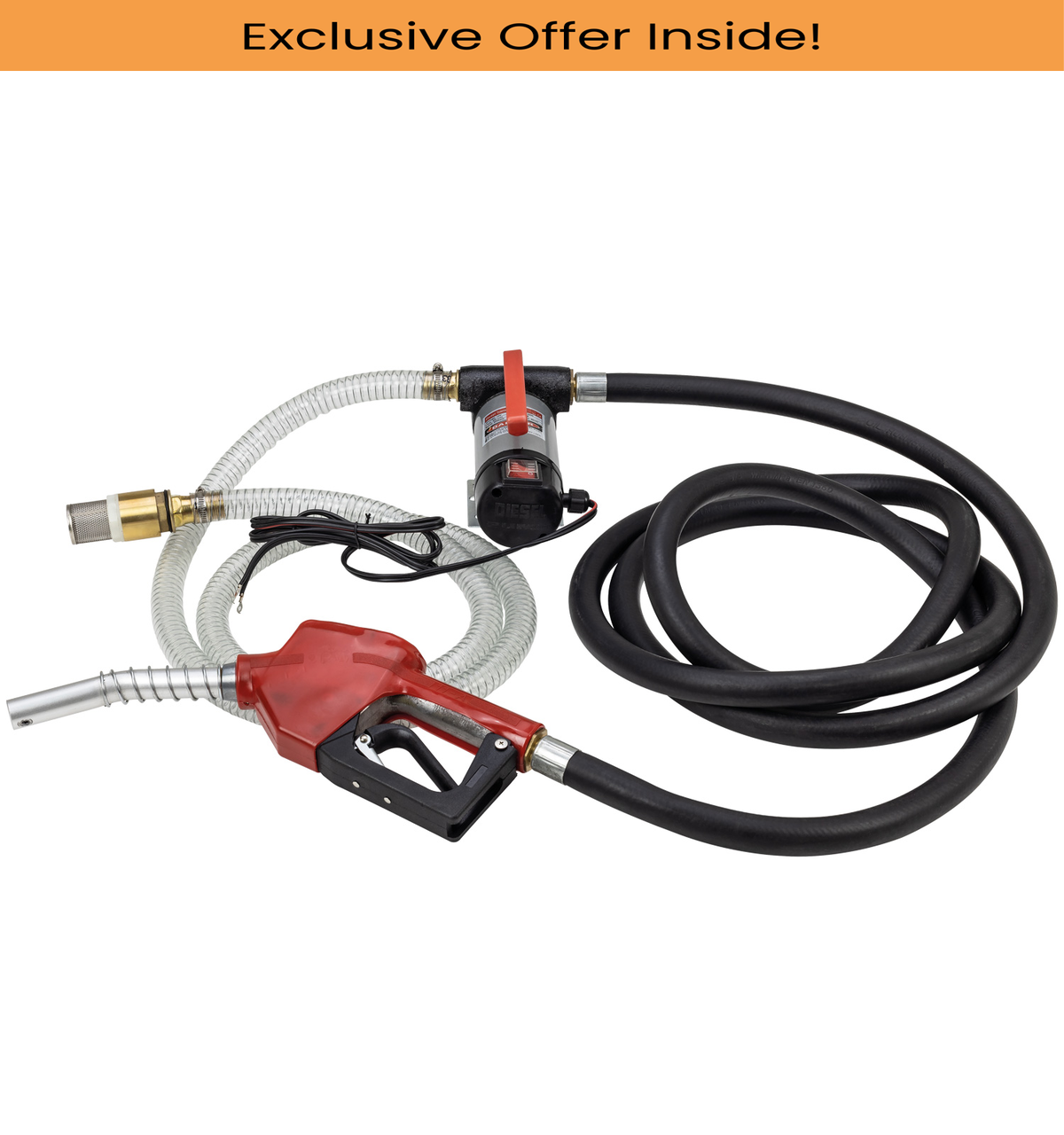

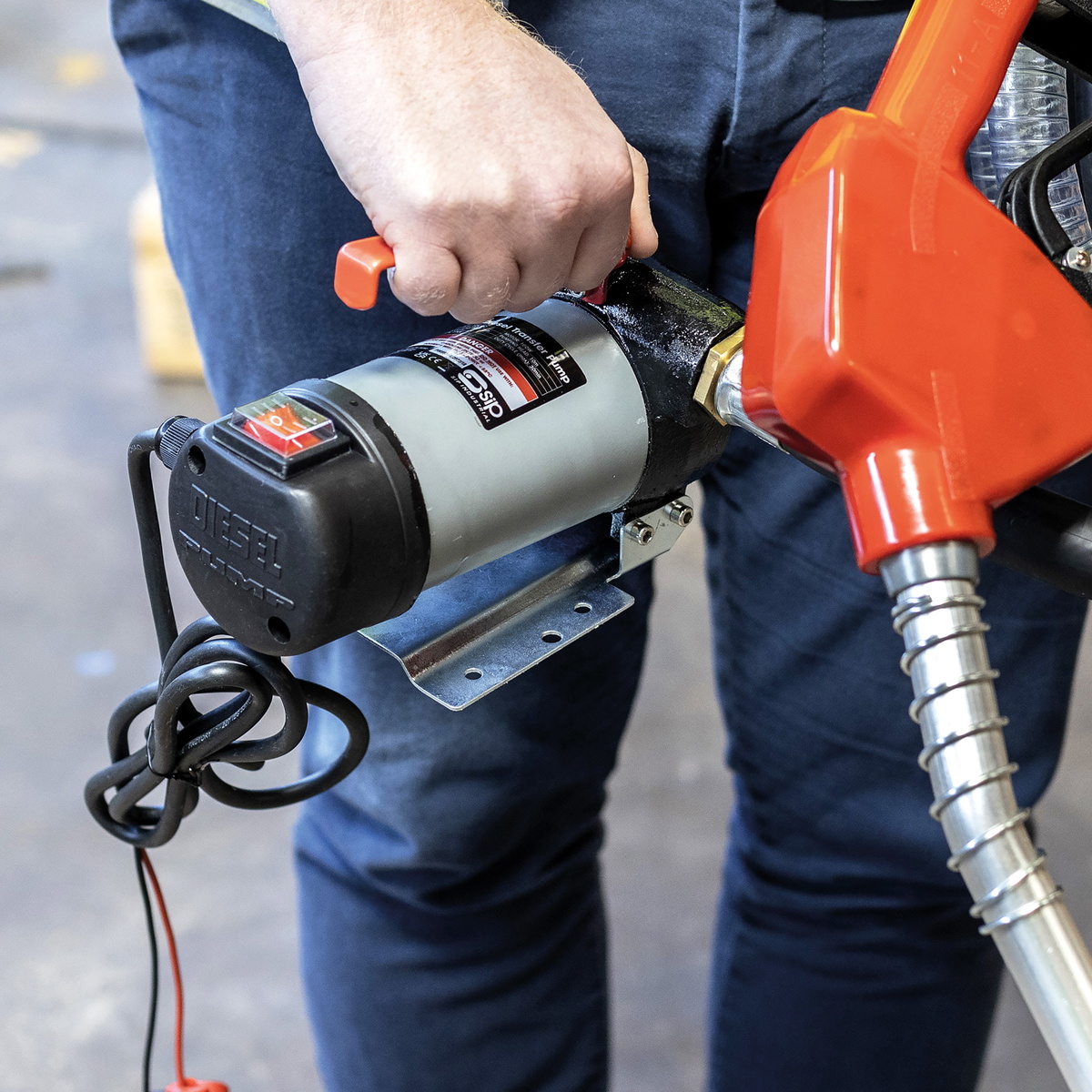

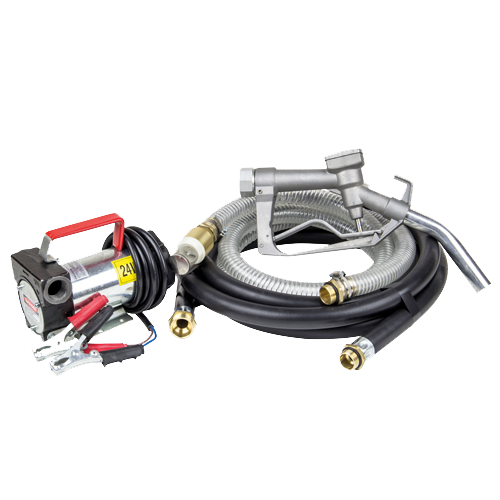

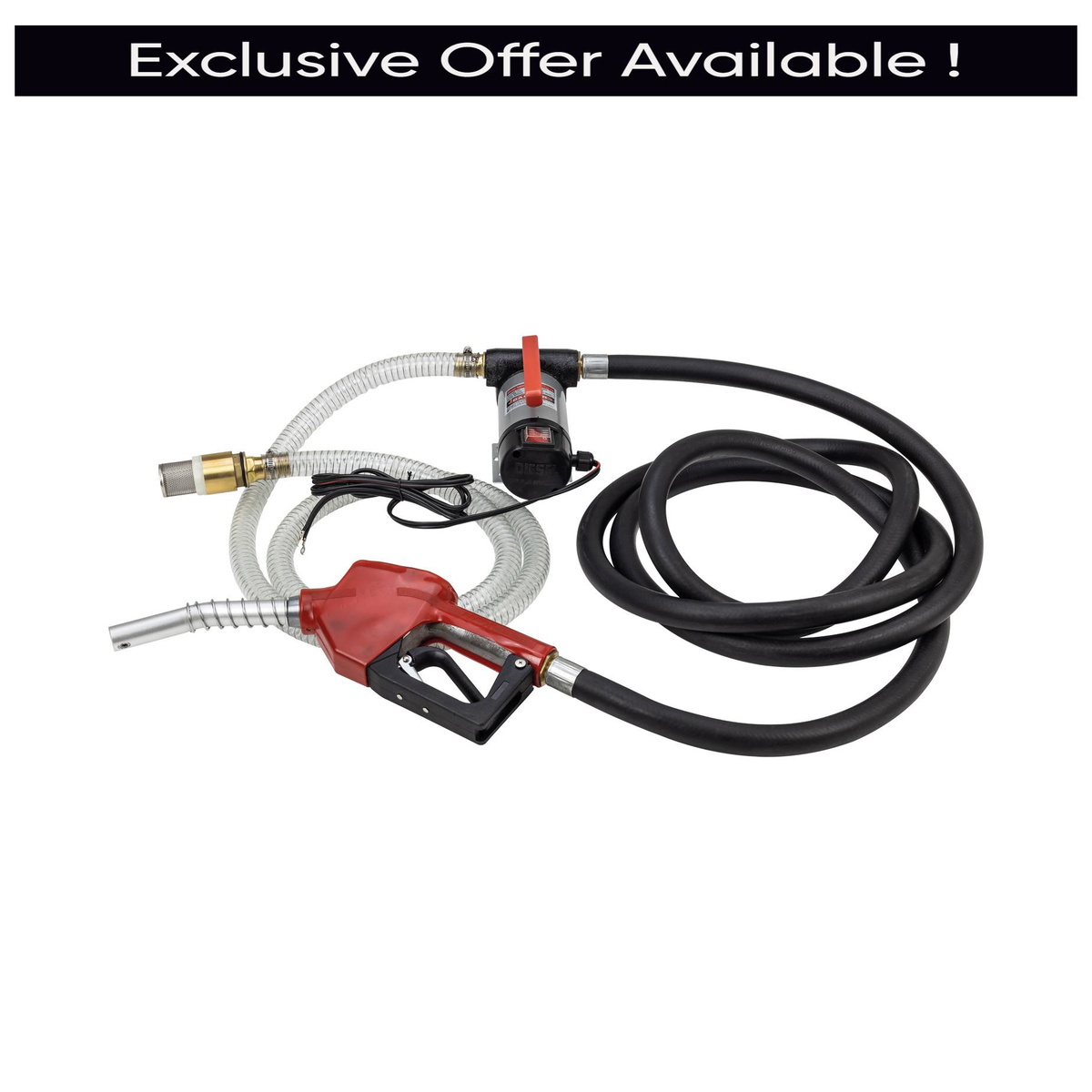

The SIP 06803 is a 24V DC electric diesel transfer pump developed for the safe dispensing of diesel and fuel oils in demanding workshop and fleet environments. Rated at 40 litres per minute and driven by a 160W motor, it is designed to deliver fast, reliable fuel transfer for vehicle refuelling, fleet servicing and industrial machinery applications.

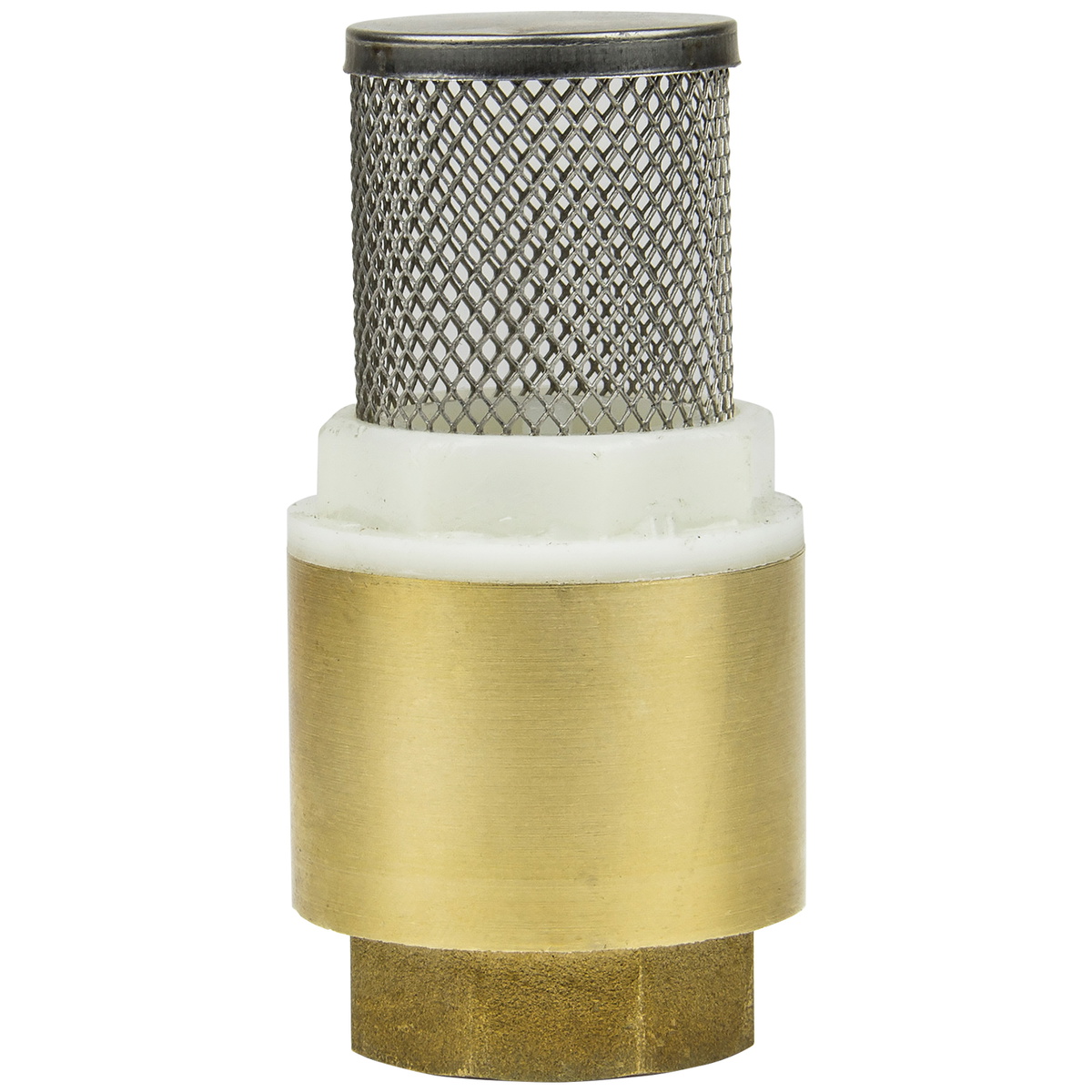

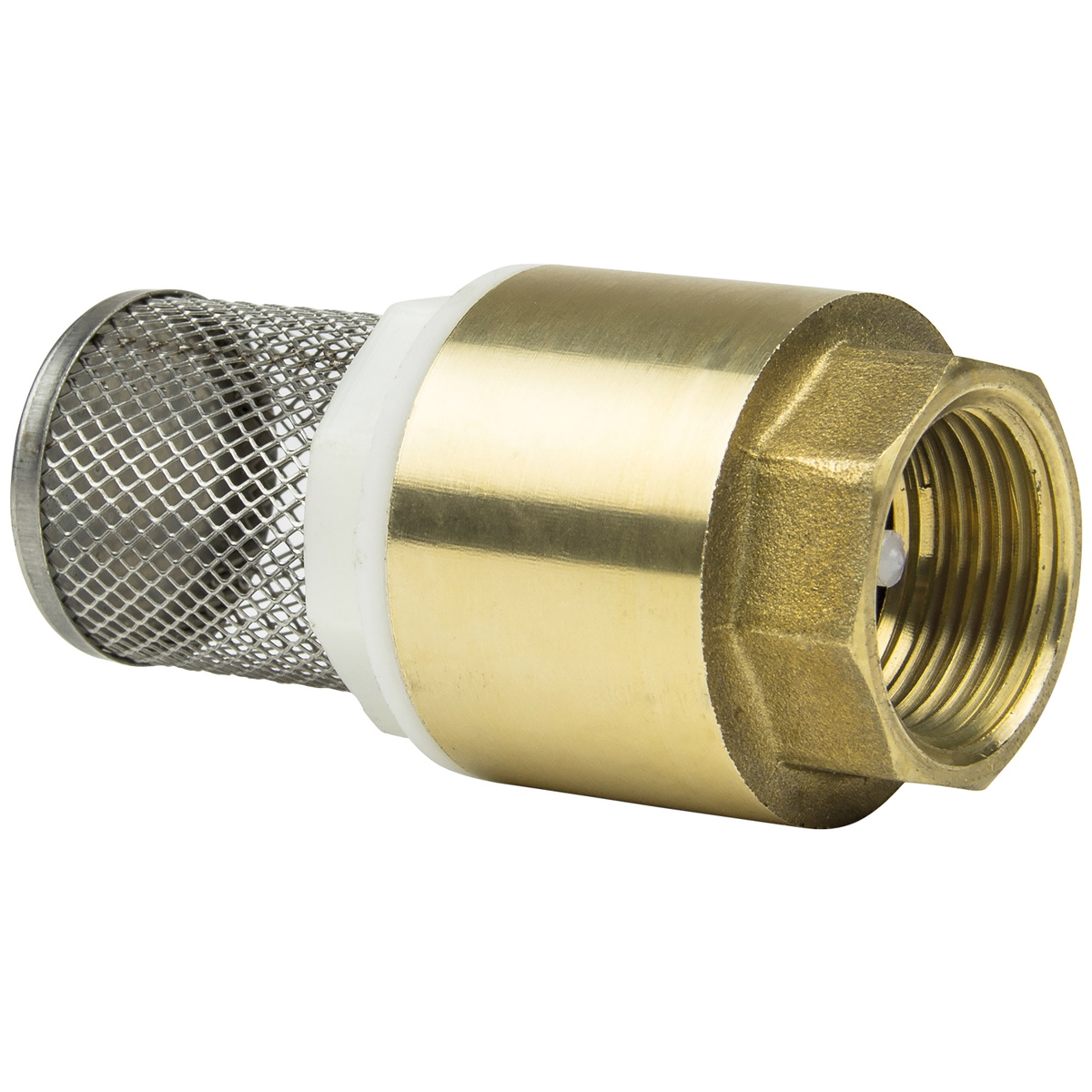

At the heart of the pump is a powerful 160W DC motor fitted with copper-wound armatures, engineered for durability and consistent output. The aluminium nozzle provides long-term resistance to wear, while a built-in non-return valve aids self-priming and a built-in bypass system enables clean start-and-stop operation without manual intervention. The compact and lightweight construction — weighing just 7.10kg — makes the unit genuinely portable across multiple refuelling points.
The 06803 achieves a maximum pumping head of 10 metres and a suction head of 2 metres, giving operators meaningful reach in practical yard or workshop layouts. Operating at 3,200RPM, it delivers a maximum working pressure of 15psi (1 bar) and carries an IPX4 ingress protection rating, confirming resistance to splash from any direction. The duty cycle is rated at 30 minutes. Connection is via a 3/4" BSP fitting, with a 4-metre delivery hose and a 2-metre suction hose supplied as standard.
This pump is supplied as a standalone unit. Variants and complementary fluid transfer products are available within the SIP range on PFM — refer to linked listings for 12V and higher-capacity options where applicable.
The SIP 06803 is backed by the SIP 2-Year Standard Silver Warranty. Product dimensions are 202(H) x 105(W) x 140mm(D). Manufactured to SIP's quality standards for professional workshop use.
Additional Information:
The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use. This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 06803 |
|---|---|
| Input Voltage | 24v DC |
| Motor Power | 160w |
| Max. Pumping Head | 10mtr |
| Max. Flow Rate | 40ltr/min |
| Speed | 3200rpm |
| Max. Working Pressure | 15psi (1bar) |
| Duty Cycle | 30min |
| Connection | 3/4" BSP |
| Protection | IPX4 |
| Suction Hose Length | 2mtr |
| Delivery Hose Length | 4mtr |
| Net Weight | 7.10kg |
| Gross Weight | 8.05kg |
| Product Dimensions | 202(H) x 105(W) x 140mm(D) |
| Packaged Dimensions | 435(H) x 320(W) x 210mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TP9624 Portable Diesel & Fluid Transfer Pump 46LPM 24V
£324.82
£318.32
2% OFF
Free delivery in UK Mainland
|
Draper 07039 Rechargeable DEF AdBlue Plastic Pump 20-50L
£98.15
£96.23
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01082 | 16152 | TP9624 | 131130100 | 07039 | 06801 |
| Type | Transfer Pump | Transfer Pump | Transfer Pump | Transfer Pump | Transfer Pump | |
| Brand | Sealey | |||||
| Capacity (L) | 46 | 50 | 40 | |||
| Model No | TP9624 | |||||
| Nett Weight | 7.05kg | |||||
| Weight (kg) | 05 | 15 | ||||
A. The SIP 06803 delivers a maximum flow rate of 40 litres per minute, making it well suited to refuelling vehicles, fleets and industrial machinery with speed and efficiency.
A. The SIP 06803 operates on 24V DC input. It is not a 12V or mains-powered unit, so verify that a suitable 24V DC supply is available before use.
A. The SIP 06803 achieves a maximum pumping head of 10 metres and a maximum suction head of 2 metres, providing practical reach across a range of yard and workshop configurations.
A. The rated duty cycle is 30 minutes. Allow the pump to rest after each operating cycle to maintain motor longevity and safe operation.
A. The pump connects via a 3/4" BSP fitting. It is supplied with a 4-metre delivery hose and a 2-metre suction hose as standard.
A. The pump carries an IPX4 ingress protection rating, confirming it is protected against water splashing from any direction. It is not rated for submersion.
A. Yes. The pump is supplied with a non-return valve to aid self-priming, and incorporates a built-in bypass system that facilitates clean start-and-stop operation.
A. The SIP 06803 is covered by the SIP 2-Year Standard Silver Warranty.
