Product Number: 06801

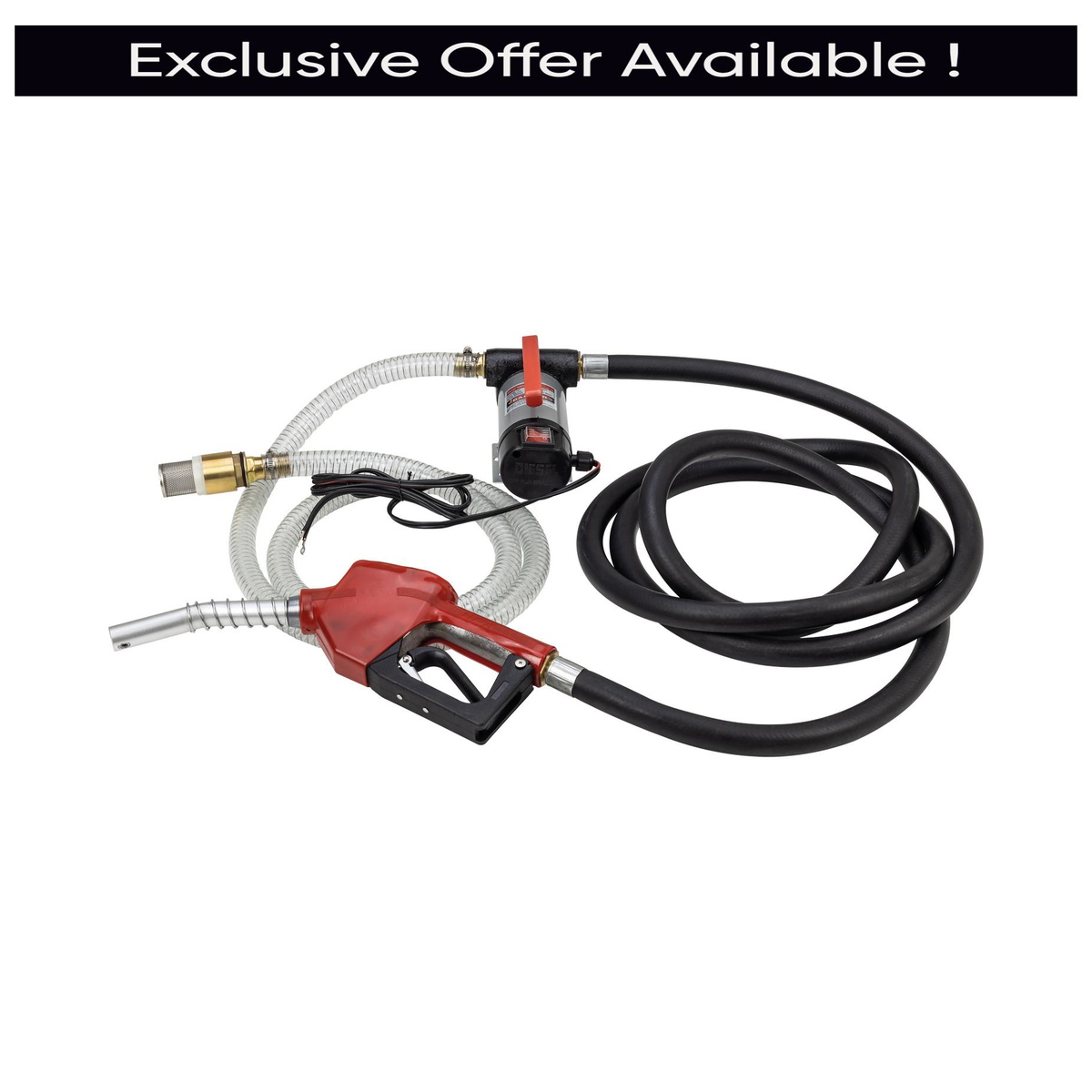

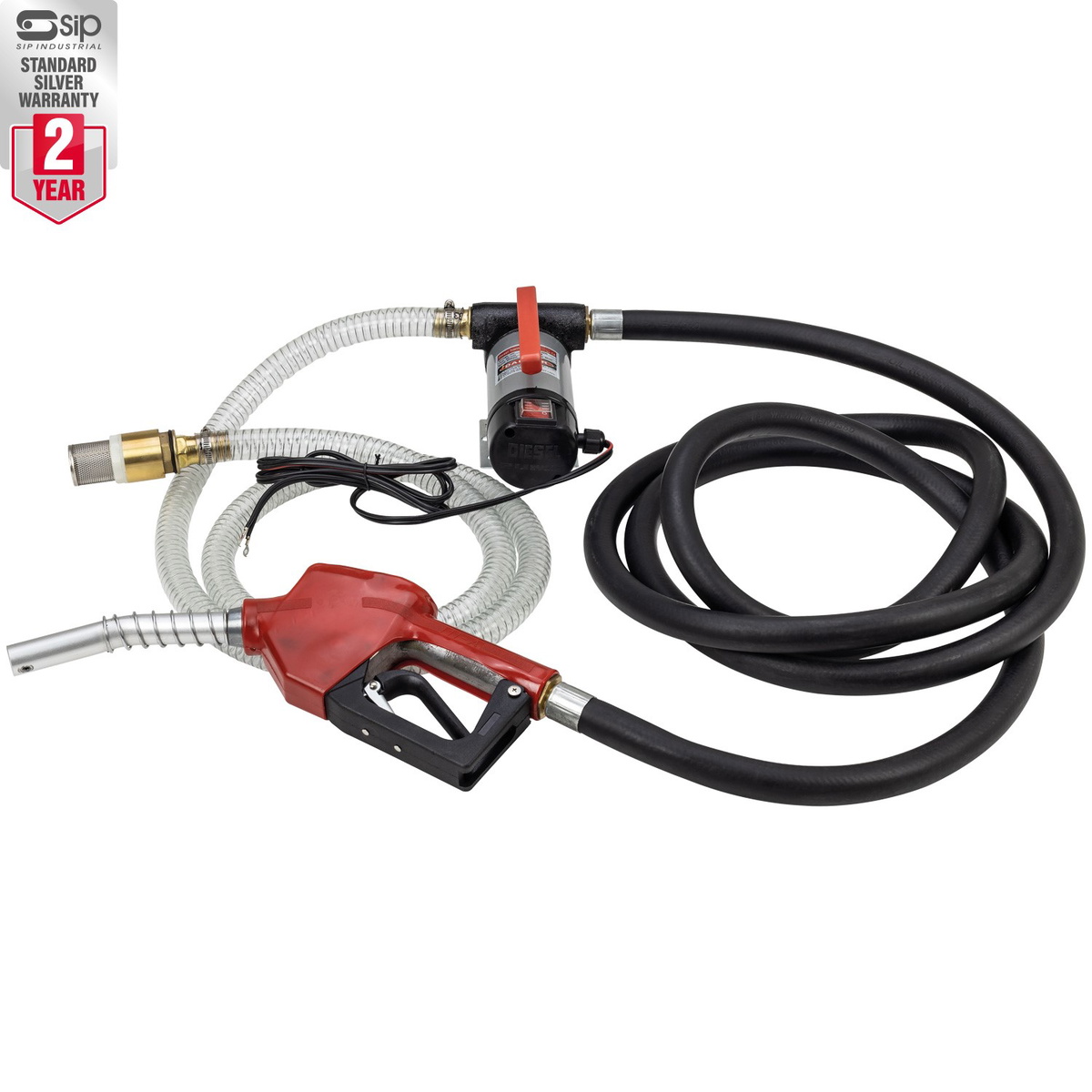

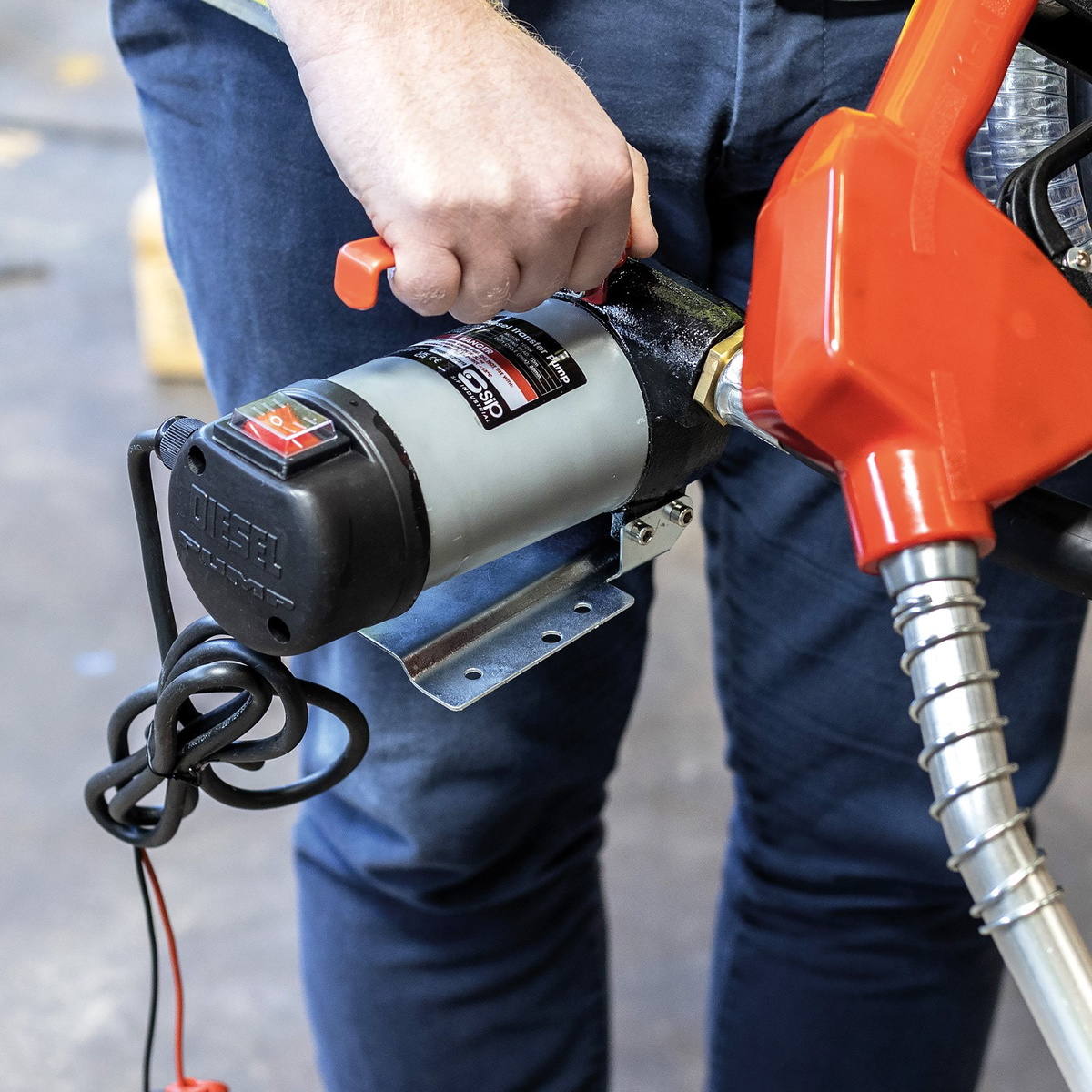

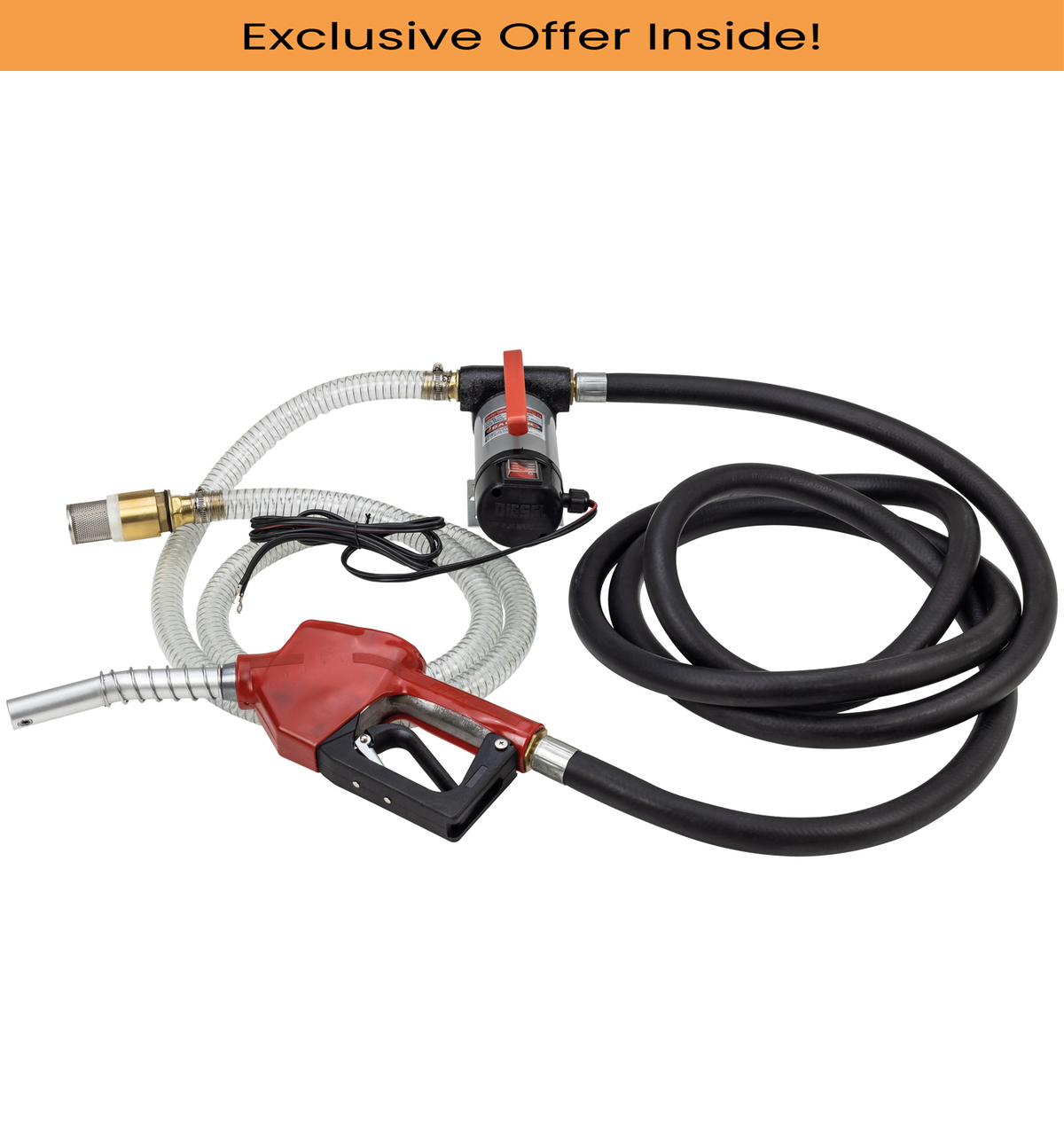

The SIP 06801 is a 12V DC electric diesel transfer pump designed for the safe dispensing of diesel and fuel oils in professional workshop, fleet and industrial environments. Rated at a maximum flow rate of 40 litres per minute with a 160W DC motor, it delivers the throughput required for efficient refuelling of vehicles, fleets and industrial machinery without unnecessary downtime.

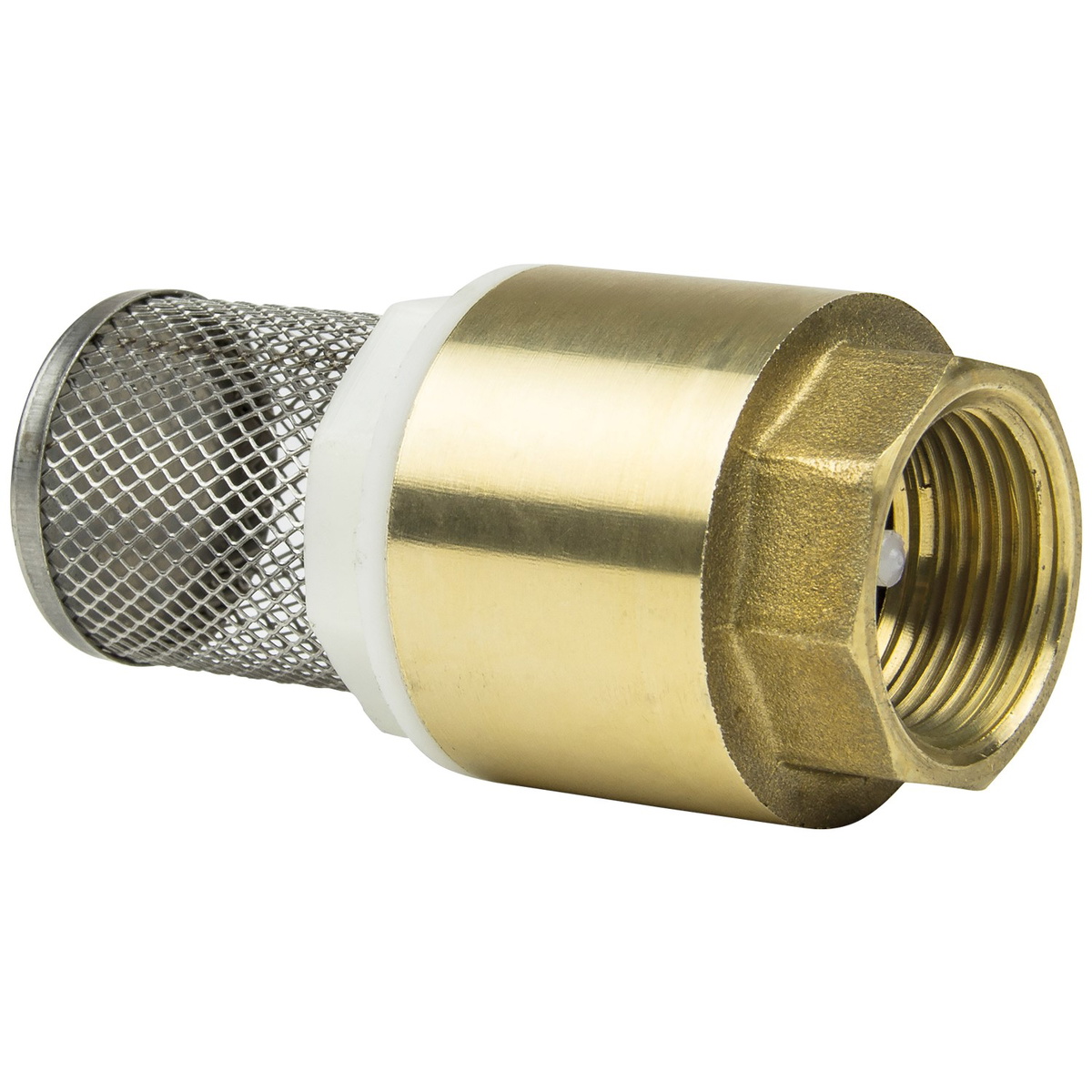

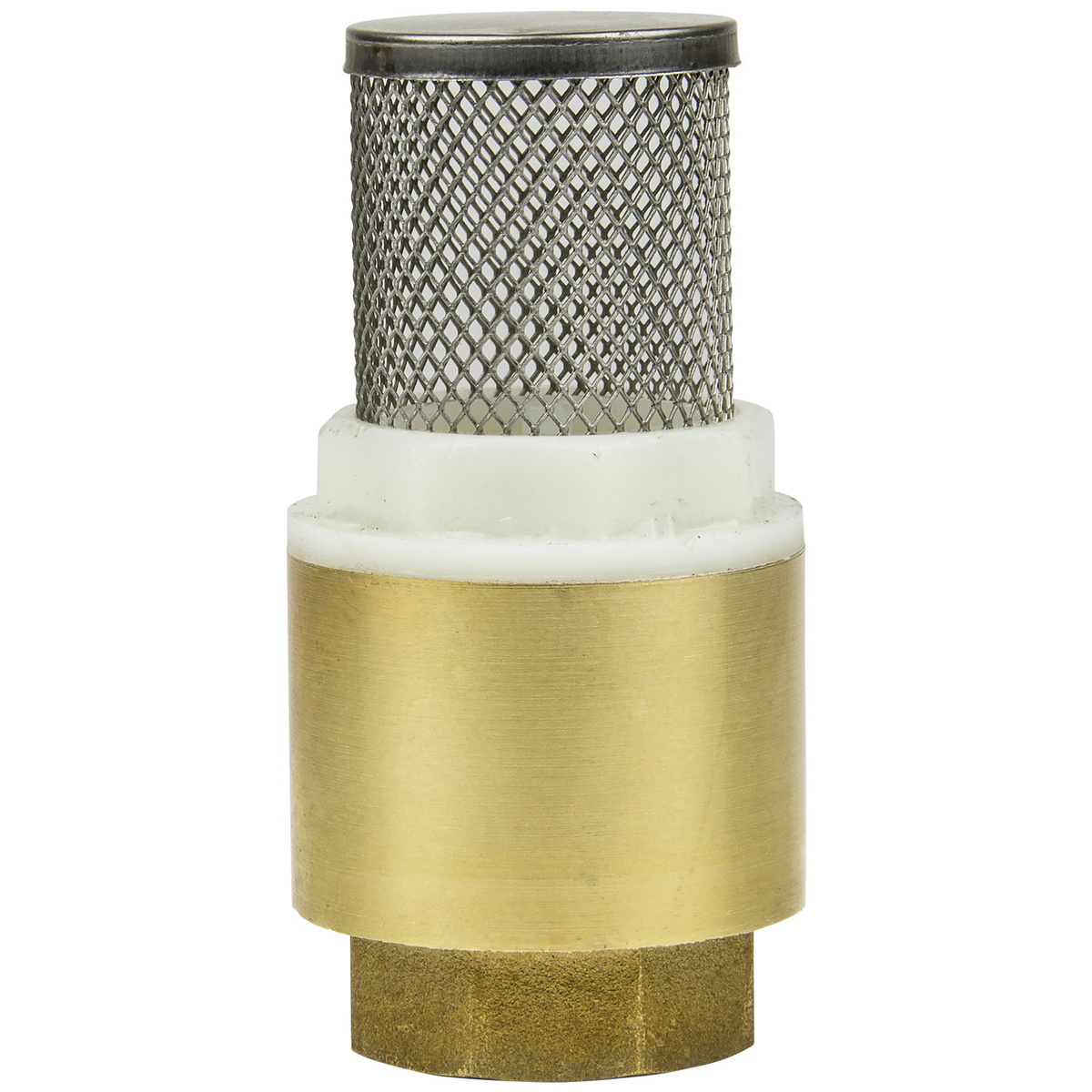

The pump is built around a powerful 160W DC motor with copper-wound armatures, housed in a compact and lightweight body that measures 202(H) x 105(W) x 140mm and weighs 7.15kg net, making it straightforward to position and relocate as operational needs demand. A high-quality aluminium nozzle provides durability at the dispensing point, while the supplied non-return valve aids self-priming and the built-in bypass system enables clean start-and-stop operation without manual intervention.
Technically, the SIP 06801 operates at 3,200RPM and sustains a maximum pumping head of 10 metres, supported by a 2-metre suction head. Maximum working pressure is 15PSI (1 bar). The pump carries IPX4 splash-protection rating and connects via a standard 3/4" BSP fitting. A 2-metre suction hose and a 4-metre delivery hose are included as standard, providing immediate reach on installation. The duty cycle is rated at 30 minutes of continuous operation.
This model is also available in complementary variants — buyers seeking alternative configurations within the SIP transfer pump range should review related SIP listings on PartsForMachines.com.
The SIP 06801 is supplied with a 2-metre suction hose and 4-metre delivery hose. This product is covered by the SIP 2-Year Standard Silver Warranty. Manufactured in China.
Additional Information:
The SIP 12v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use. This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 06801 |
|---|---|
| Input Voltage | 12v DC |
| Motor Power | 160w |
| Max. Pumping Head | 10mtr |
| Max. Flow Rate | 40ltr/min |
| Speed | 3200rpm |
| Max. Working Pressure | 15psi (1bar) |
| Duty Cycle | 30min |
| Connection | 3/4" BSP |
| Protection | IPX4 |
| Suction Hose Length | 2mtr |
| Delivery Hose Length | 4mtr |
| Net Weight | 7.15kg |
| Gross Weight | 8.05kg |
| Product Dimensions | 202(H) x 105(W) x 140mm(D) |
| Packaged Dimensions | 435(H) x 320(W) x 210mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TP9624 Portable Diesel & Fluid Transfer Pump 46LPM 24V
£324.82
£318.32
2% OFF
Free delivery in UK Mainland
|
Draper 07039 Rechargeable DEF AdBlue Plastic Pump 20-50L
£98.15
£96.23
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01082 | 16152 | TP9624 | 131130100 | 07039 | 06803 |
| Type | Transfer Pump | Transfer Pump | Transfer Pump | Transfer Pump | Transfer Pump | |
| Brand | Sealey | |||||
| Capacity (L) | 46 | 50 | 40 | |||
| Model No | TP9624 | |||||
| Nett Weight | 7.05kg | |||||
| Weight (kg) | 05 | 10 | ||||
A. The SIP 06801 delivers a maximum flow rate of 40 litres per minute, making it suitable for efficient refuelling of vehicles, fleets and industrial machinery.
A. The SIP 06801 operates on 12V DC, making it compatible with vehicle and portable power sources commonly available in fleet and workshop environments.
A. The SIP 06801 has a maximum pumping head of 10 metres and a maximum suction head of 2 metres, providing versatility across a range of installation configurations.
A. The pump is supplied with a 2-metre suction hose and a 4-metre delivery hose as standard.
A. The duty cycle is rated at 30 minutes of continuous operation.
A. The SIP 06801 uses a standard 3/4" BSP connection and carries an IPX4 splash-protection rating, suitable for workshop and outdoor transfer applications.
A. Yes. The pump is supplied with a non-return valve to aid self-priming, and a built-in bypass system enables clean start-and-stop operation.
A. This product is covered by the SIP 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
