Product Number: 03220000

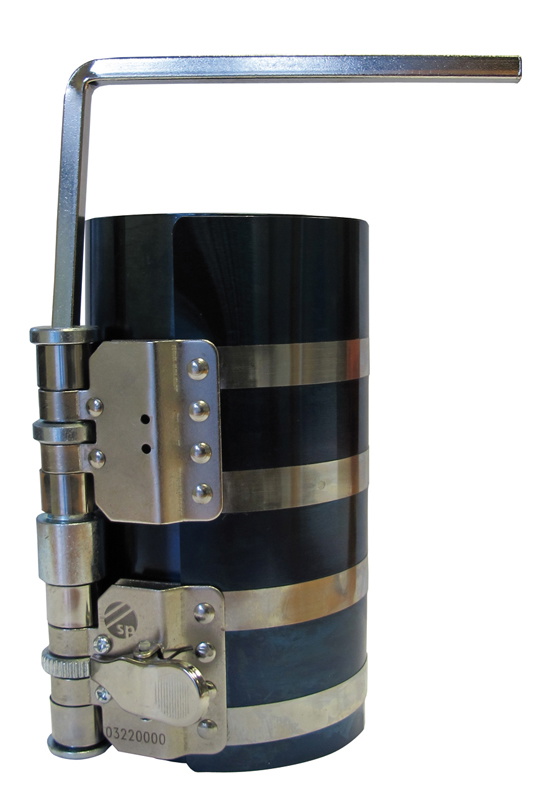

Compressing piston rings accurately during engine rebuilds on heavy commercial vehicles, industrial plant and agricultural machinery demands a tool with sufficient reach and capacity to handle large-bore cylinders. Standard small-bore compressors are simply not up to the task. The Sykes Pickavant 03220000 Piston Ring Compressor is purpose-built for these demanding applications, offering the large capacity and long reach required to seat rings correctly and safely.
The compressor operates via a spring-assisted ratchet-type lock mechanism, allowing controlled, incremental tightening of the band around the piston assembly. A square drive key is included, enabling the operator to apply precise torque to the ratchet without improvised tooling. This ratchet action provides positive locking at each stage of compression, reducing the risk of the band releasing prematurely during installation.
The tool accommodates a bore capacity of 90 mm to 175 mm and features a double-depth band of 165 mm, providing the extended contact area necessary when working with the longer piston assemblies found in commercial and agricultural engines. Overall product dimensions are 280 mm x 180 mm x 110 mm and the unit weighs 0.8 kg.
The 03220000 is specifically suited to heavy commercial vehicles, industrial engines and agricultural engines where standard-capacity compressors are inadequate.
As part of the Sykes Pickavant professional workshop tool range, this compressor is engineered for the rigours of trade and professional use.
Additional Information
Piston Ring Compressor - Ratchet Action - Large Capacity - Long Reach Large capacity, long reach, piston ring compressor Spring assisted ratchet type lock complete with square drive key Double-Depth 165mm, 90 - 175mm capacity Suitable for Heavy Commercial Vehicles, industrial and agricultural engines
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 280 x 180 x 110 mm |
|---|---|
| Product Weight | 0.8 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant GO903 DSG CLUTCH REMOVAL KIT VW GROUP
£629.90
£617.55
2% OFF
Free delivery in UK Mainland
|
Draper 23238 Universal Clutch Aligning Kit (11 Piece)
£80.18
£78.61
2% OFF
Free delivery in UK Mainland
|
Sealey VS0204C 7pc Brake & Clutch Pressure Bleeder Cap Set 2001-2022
£191.55
£187.79
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 66037000 | 66037300 | GO903 | GO493 | 23238 | 52329 | 53086 | VS0204C |
| Brand | Sealey | |||||||
| Length (mm) | 100 | 102 | ||||||
| Model No | VS0204C | |||||||
| Product Dimenstions (L x W x H) | 130 x 110 x 100 mm | 97 x 122 x 102 mm | ||||||
| Weight (kg) | 35 | 35 | 1.8 | |||||
A. It is a large, long reach ratchet-action piston ring compressor for heavy commercial, industrial and agricultural engines.
A. It covers piston diameters from 90mm to 175mm, with double-depth 165mm cylinder height.
A. Long reach accommodates tall pistons and deep bores typical in heavy duty engines.
A. Spring-assisted ratchet locking makes it easier to compress rings evenly and maintain compression while installing pistons.
A. It includes a square drive key for convenient tightening and releasing of the compressor band.
A. It is used on heavy commercial vehicles, industrial power units and agricultural engines with large bore pistons.
A. Fit it around the piston, tighten until rings fully compress and then slide the assembly gently into the cylinder bore.
A. Inspect the band and ratchet for damage, ensure smooth ratchet function and clean any oil or debris.
A. Store it in a protective case or on a shelf where the band is not distorted.
A. “03220000 large long-reach piston ring compressor 90–175mm”
