Product Number: VSE6560A

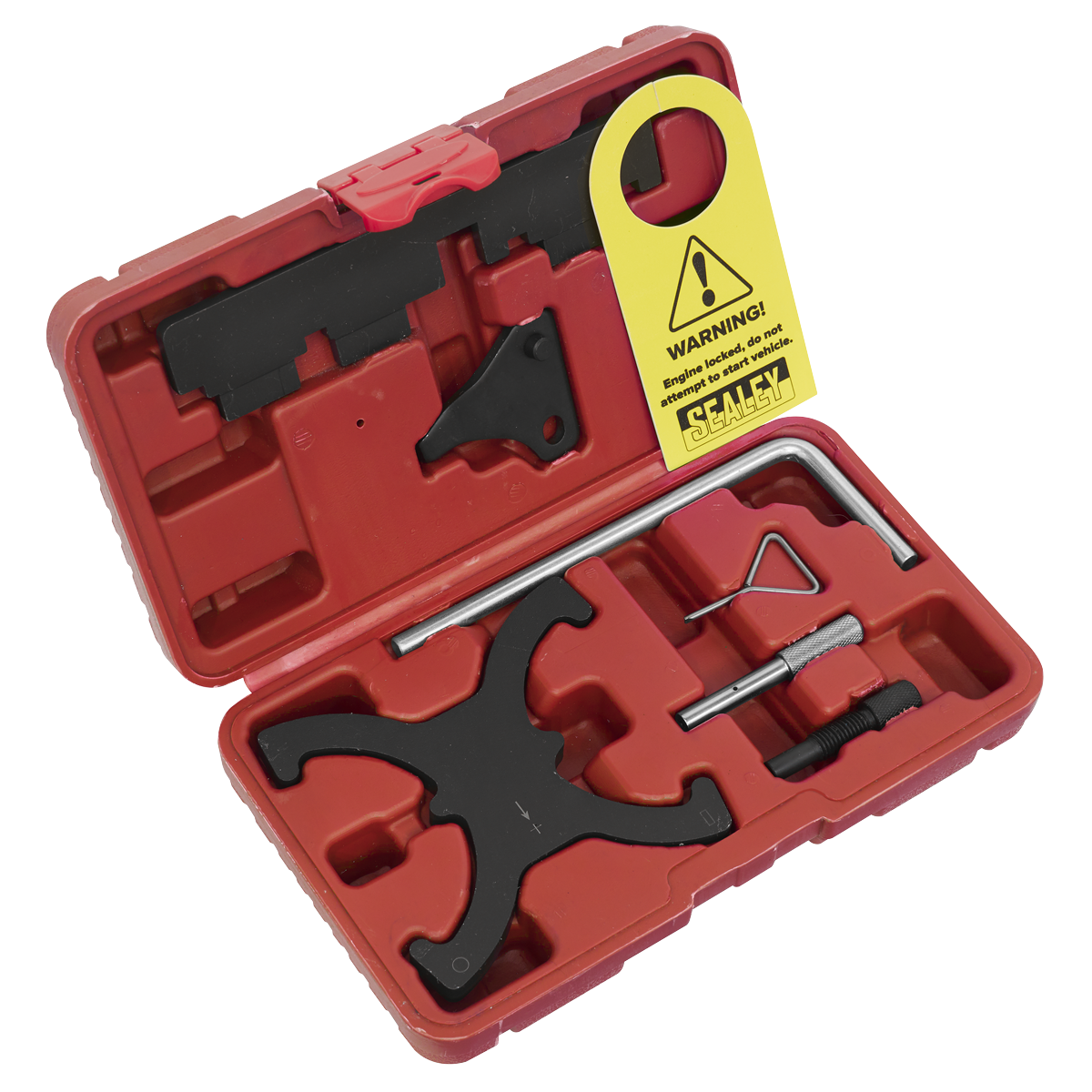

Setting and locking engine timing accurately on Ford EcoBoost and diesel engines requires the correct tooling to avoid costly errors during variable valve timing sprocket removal or belt replacement. The Sealey VSE6560A Petrol Engine Timing Tool Kit contains all the tooling required to set and lock the engine, including a tensioner locking pin for Ford 1.6 EcoBoost engines. A camshaft locking tool is included, which must be used to set and lock the camshafts into their timing position when the variable valve timing sprockets are removed. The kit also features a time-saving crankshaft pulley alignment tool. Timing pins included are suitable for Ford 2.0D and 2.2D diesel engines. The kit is supplied in a storage case complete with instructions and a warning tag. It replaces Ford OEM tools 303-1097, 303-748, 303-1550, and 303-1054, and Volvo OEM tools 999-7429, 999-7406, and 999-7431. Compatible vehicles span a broad range including Ford B-Max, C-Max, Fiesta, Focus, Galaxy, Grand C-Max, Ka, Kuga, Mondeo, S-Max, and Transit Connect variants; Jaguar XF (11-15); Land Rover Freelander 2 TD4 and Range Rover Evoque; and Volvo S60, S80, V40, V60, and V70 models. Suitable for 1.6, 2.0D, and 2.2D engine codes as listed in the full specification.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VSE6560A |
|---|---|
| Application(s) | |
| Ford | B-Max (12-18), C-Max (03-18), Fiesta (08-17), Focus (04-18), Galaxy (06-18), Grand C-Max (10-20), Grand Tourneo Connect (13-15), Kuga (08-17), Mondeo (07-18), S-Max (06-18), Tourneo Connect (13-15), Transit Connect (13-16) |
| Jaguar | XF (11-15) |
| Land Rover | Freelander 2 TD4 (06-15), Range Rover Evoque (11-15) |
| Volvo | S60 (11-15), S80 (10-15), V40 (10-15), V60 (11-15), V70 (10-15) |
| Brand | Sealey |
| Engine Code(s) | |
| 1.6 | HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4 |
| 2.0D | D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA |
| 2.2TD4/TDCi | DW12CTED4, DW12BTED/224DT, KNBA, Q4BA |
| 2.2D (Jaguar) | AJi4D/224DT |
| Nett Weight | 0.80kg |
| Engine Code(s) | |
| 1.6 | HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4 |
| 2.0D | D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA |
| 2.2TD4/TDCi | DW12CTED4, DW12BTED/224DT, KNBA, Q4BA |
| 2.2D (Jaguar) | AJi4D/224DT |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 27092 Engine Timing Kit (Ford, Mazda)
£131.48
£128.90
2% OFF
Free delivery in UK Mainland
|
Draper 16569 Engine Timing Kit (Fiat, Alfa Romeo, Citroen, Ford, Lancia, Peugeot, Subaru, Suzuki, Vauxhall)
£77.50
£75.98
2% OFF
Free delivery in UK Mainland
|
Draper 16396 Engine Timing Kit ETK150 (Fiat, Alfa Romeo, Chrysler, Lancia)
£89.23
£87.48
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | VSE6281 | VSE5843 | 27092 | 16569 | 16396 | 16217 |
| Type | Timing Kit | Timing Kit | Timing Kit | Timing Kit | Timing Kit | Timing Kit |
| Brand | Sealey | Sealey | ||||
| Model No | VSE6281 | VSE5843 | ||||
| Nett Weight | 1.46kg | 1.74kg | ||||
| Weight (kg) | 74 | |||||
A. The VSE6560A is compatible with a wide range of Ford, Volvo, Jaguar, and Land Rover models. These include Ford Fiesta, Focus, Mondeo, Kuga, Galaxy, and more; Volvo S60, V60, V70, and others; Jaguar XF (11-15); and Land Rover Freelander 2 TD4 and Range Rover Evoque. Please refer to the full engine code list in the specifications to confirm your vehicle.
A. The VSE6560A replaces Ford OEM tools 303-1097, 303-748, 303-1550, and 303-1054, and Volvo OEM tools 999-7429, 999-7406, and 999-7431.
A. Yes. The kit contains the tooling required to set and lock the engine along with a tensioner locking pin specifically for Ford 1.6 EcoBoost engines.
A. Yes. The timing pins included are suitable for Ford 2.0D and 2.2D diesel engines.
A. The camshaft locking tool must be used to set and lock the camshafts into their timing position when the variable valve timing sprockets need to be removed.
A. Yes. The kit is supplied in a storage case with instructions and a warning tag.
A. Yes. A time-saving crankshaft pulley alignment tool is included in the kit.
A. Yes. Alternative timing tools for different applications include VS4387, VS5285, VSE5041A, and VSE5042A. Please confirm fitment with your vehicle before purchasing.
