Product Number: VSE5515

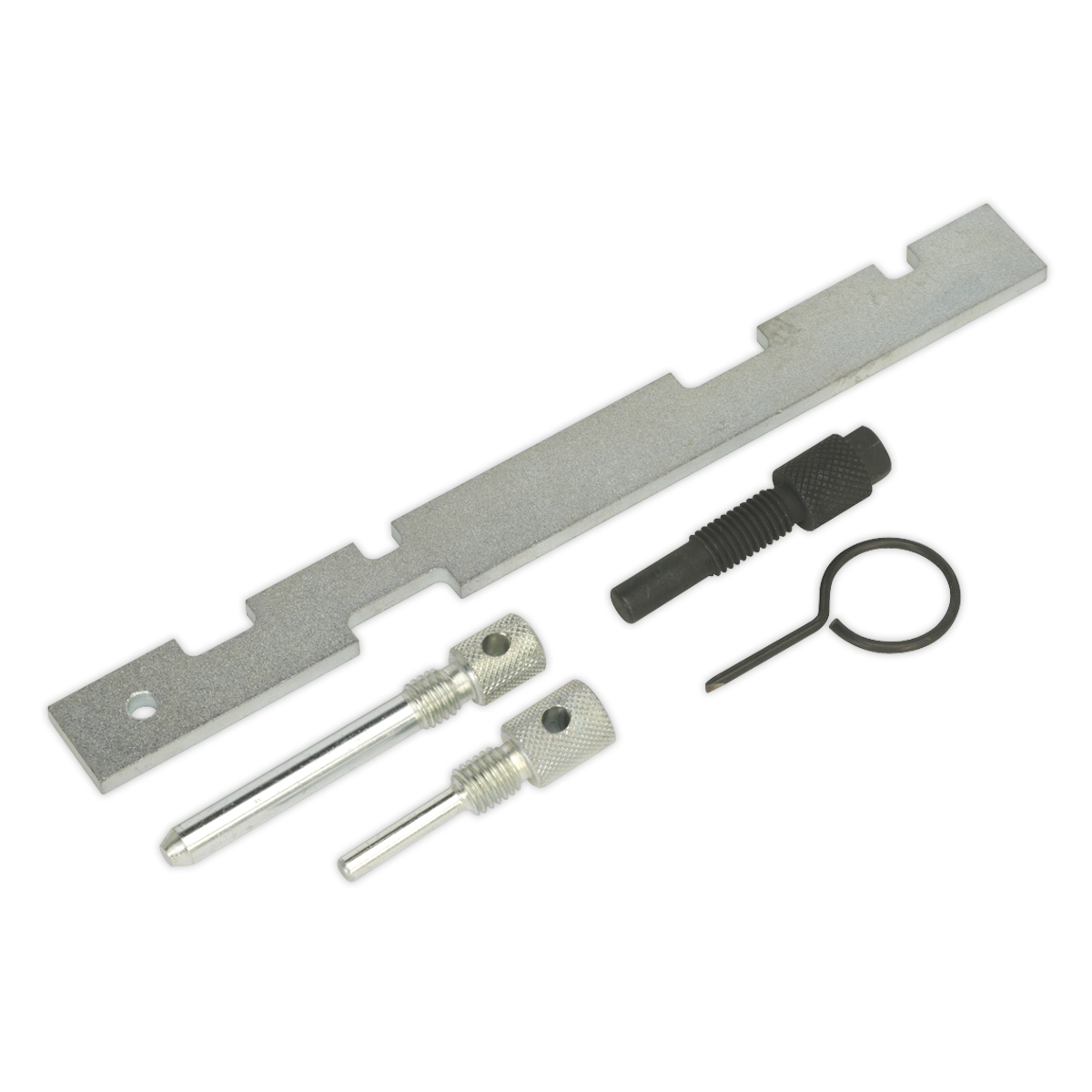

Setting engine timing accurately on Ford Duratec-family engines demands the correct locking and alignment tools without them, there is a real risk of misfitting the belt or chain and causing serious engine damage. The Sealey VSE5515 Petrol Engine Timing Tool Kit covers the complete range of Ford Duratec engines from 1.25 to 2.3 16v in both belt drive and chain drive variants, making it one of the most comprehensive single kits available for this engine family. Coverage extends across Ford, Mazda, and Volvo applications spanning decades of production. Ford vehicles covered include the B-Max, C-Max, Cougar, Fiesta, Focus, Focus C-Max, Fusion, Galaxy, Ka, Maverick, Mondeo, Puma, S-Max, Tourneo Connect, Transit, and Transit Connect across a wide range of model years. Mazda coverage includes the 121 ZQ, 2 DY, 3 BK/BL, 5 CR/CW, 6 GG/GY/GH, MPV LW, MX-5 NC, and Tribute EP. Volvo models covered are the C30, S40, S80, and V50. The kit carries Ford OEM references 303-1054, 303-507 (21-210), 303-620 (21-163), 303-574, 303-748, 303-376 (21-162B), and 303-376B, Mazda OEM references 49 JE01 061, 303-574, 49 JE02 061, 303-465, and 49 JE01 054, and Volvo OEM references 999-7152 and 999-7151. An associated tool for Ford 1.8, 2.0, and 2.3 16v Duratec chain drive engines is the VSE5847 Crank Pulley Holding Tool, available separately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VSE5515 |
|---|---|
| Applications | |
| Ford | B-Max (15-17), C-Max (07-10), Cougar (98-01), Fiesta (95-17), Focus (98-11), Focus C-Max (03-07), Fusion (02-12), Galaxy (06-15), Maverick (01-07), Mondeo (93-15), Puma (97-02), S-Max (06-15), Tourneo Connect (02-06), Transit (06-12), Transit Connect (02-06) |
| Mazda | 121 ZQ (95-00), 2 DY (02-07), 3 BK (03-09), 3 BL (09-15), 5 CR (05-10), 5 CW (10-12), 6 GG/GY (02-07), 6 GH (07-15), MPV LW (02-05), MX-5 NC (05-16), Tribute EP (04-06) |
| Volvo | C30 (06-13), S40 (06-12), S80 (07-11), V50 (04-12) |
| Associated Tool | VSE5847 - Crank Pulley Holding Tool - Ford 1.8, 2.0, 2.3 16v Duratec - Chain Drive |
| Brand | Sealey |
| Engine Codes | |
| 1.25 16v Belt | DHA, DHB, DHC, DHD, DHE, DHF, DHG, F8JA, F8JB, FUJA, FUJB, M7JA, M7JB, SNJA, SNJB, SNJC, SNJD, STJA, STJB, STJC, STJD |
| 1.4 16v Belt | ASDA, ASDB, FHA, FHB, FHD, FHE, FHF, FXDA, FXDB, FXDC, FXDD, FXJA, FXJB, FXJC, RTJA, RTJB, SPJA, SPJC, SPJE, UTJA |
| 1.6 16v Belt | B4164S3, FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC, HWDA, HWDB, IQJA, IQJC, L1F, L1J, L1L, L1N, L1Q, L1T, L1V, L1W, SHDA, SHDB, SHDC |
| 1.8 16v Belt | EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL, EYPA, EYPC, RKA, RKB, RKF, RKH, RKJ, RKK |
| 1.8 16v Chain | CDBB, CGBA, CGBB, CHBA, CHBB, CSDA, CSDB, Q7DA, QQDA, QQDB, QQDC, L8, B4184S11, B4184S, B4184S8 |
| 2.0 16v Belt | ALDA, EDBA, EDBB, EDBC, EDBD, EDDB, EDDC, EDDD, EDDF, HMDA, NGA, NGB, NGC, NGD, YF |
| 2.0 16v Chain | B4204S3, B4204S4, AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, CJBA, CJBB, LF, N4JB, SYDA, TBBA, TBBB, TBWA, TBWB |
| 2.3 16v Chain | GZ, GZFA, GZFB, GZFC, L3, SEBA, SEWA |
| Nett Weight | 0.26kg |
| OEM Tools | |
| Ford | 303-1054, 303-507 (21-210), 303-620 (21-163), 303-574, 303-748, 303-376 (21-162B), 303-376B |
| Mazda | 49 JE01 061, 303-574, 49 JE02 061, 303-465, 49 JE01 054 |
| Volvo | 999-7152, 999-7151 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey VS5200MK Diesel & Petrol Master Timing Tool Kit 36pc - Ford Belt & Chain Drive
£673.57
£660.10
2% OFF
Free delivery in UK Mainland
|
Sealey VSE5988 Petrol Engine Timing Tool Kit - VAG 1.2, 1.4TFSi, 1.4, 1.6FSi Chain Drive
£121.14
£118.72
2% OFF
|
Draper 27092 Engine Timing Kit (Ford, Mazda)
£131.48
£128.90
2% OFF
Free delivery in UK Mainland
|
Draper 16569 Engine Timing Kit (Fiat, Alfa Romeo, Citroen, Ford, Lancia, Peugeot, Subaru, Suzuki, Vauxhall)
£77.50
£75.98
2% OFF
Free delivery in UK Mainland
|
Draper 16396 Engine Timing Kit ETK150 (Fiat, Alfa Romeo, Chrysler, Lancia)
£89.23
£87.48
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | VS5200MK | VSE5988 | 27092 | 29577 | 16569 | 16396 |
| Type | Timing Kit | Timing Kit | Timing Kit | Timing Kit | Timing Kit | Timing Kit |
| Brand | Sealey | Sealey | ||||
| Model No | VS5200MK | VSE5988 | ||||
| Nett Weight | 0.00kg | |||||
| Weight (kg) | 00 | |||||
A. The VSE5515 covers the complete range of Ford Duratec engines: 1.25, 1.4, 1.6, 1.8, 2.0, and 2.3 16v, in both belt drive and chain drive variants.
A. Ford models include the Fiesta, Focus, Mondeo, Galaxy, S-Max, Transit, Ka, Puma, Fusion, Maverick, Cougar, C-Max, B-Max, and more across various years. Mazda coverage includes the 2, 3, 5, 6, MX-5 NC, and MPV. Volvo coverage includes the C30, S40, S80, and V50. Please refer to the full vehicle fitment list for specific year ranges.
A. Ford OEM: 303-1054, 303-507 (21-210), 303-620 (21-163), 303-574, 303-748, 303-376 (21-162B), 303-376B. Mazda OEM: 49 JE01 061, 303-574, 49 JE02 061, 303-465, 49 JE01 054. Volvo OEM: 999-7152, 999-7151.
A. Yes. The VSE5515 covers the full Ford Duratec engine range in both belt drive and chain drive variants.
A. Yes. The VSE5847 Crank Pulley Holding Tool is listed as an associated tool for Ford 1.8, 2.0, and 2.3 16v Duratec chain drive engines and is available separately.
A. Alternative timing tool kits available include VS4387, VS5200MK, VS5285, and VSE5041A. Please contact Parts for Machines for guidance on which kit suits your specific vehicle.
