Product Number: SPEEDLINE1705
Variations

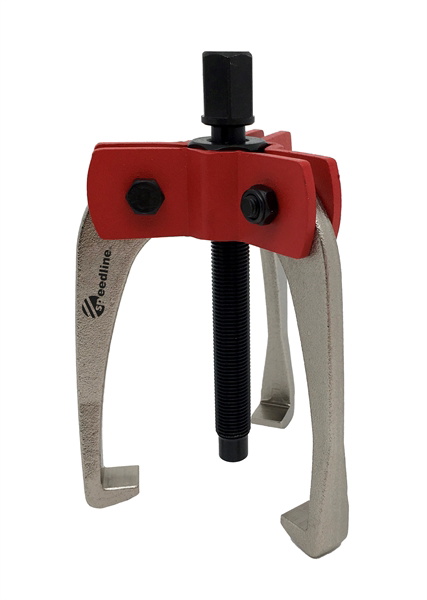

Removing gears, bearings and pulleys without a dedicated mechanical puller risks damaging components, wasting time, and creating safety hazards in the workshop. The Sykes Pickavant SPEEDLINE1705 is a three-leg external mechanical puller designed to extract these components reliably and with controlled, even force.
The SPEEDLINE1705 operates via a self-centring mechanism in which all three legs are synchronised through the spindle's support nut. As the spindle is turned, the legs move together simultaneously, distributing pulling force evenly around the component. This balanced three-leg configuration reduces the risk of slippage or misalignment during extraction, making it suitable for professional external pulling tasks on gears, bearings and pulleys.
The puller has a maximum reach and maximum spread of 80 mm, accommodating a defined range of external components. Overall product dimensions are 140 mm x 110 mm x 90 mm and the unit weighs 0.6 kg. Note that this puller is not suitable for use with air or impact tools; it is designed for manual operation only.
Manufactured with high-quality materials to withstand rigorous use in professional settings, the SPEEDLINE1705 offers a dependable, self-centring solution for external extraction tasks where balanced grip and controlled force are essential.
Additional Information
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 140 x 110 x 90 mm |
|---|---|
| Product Weight | 0.6 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Gear Puller Won't Grip? 2 or 3 Legs, Separator or Slide Hammer The pulley won’t budge, the jaws keep slipping, or there’s no room behind the bearing. The fix is usually the right puller, set square: two or...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant SPEEDLINE1700 Mechanical Puller 2 Leg- Max Spread 80mm
£56.54
£55.43
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant SPEEDLINE1710 Mechanical Puller 2 Leg- Max Spread 122mm
£67.04
£65.73
2% OFF
Free delivery in UK Mainland
|
Draper 12390 Bearing Separator and Puller Set 8 Piece
£58.84
£57.69
2% OFF
Free delivery in UK Mainland
|
Draper 12388 Double Bearing Separator and Puller Set 12 Piece
£75.88
£74.39
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SPEEDLINE1700 | SPEEDLINE1710 | 11805 | 12390 | 12388 |
| Type | Mechanical Puller | Mechanical Puller | Mechanical Puller | Mechanical Puller | Mechanical Puller |
| Length (mm) | 80 | 122 | |||
| Product Dimenstions (L x W x H) | 200 x 90 x 40 mm | 250 x 140 x 50 mm | |||
| Weight (kg) | 0.5 | 0.9 | |||
A. The SPEEDLINE1705 is an external mechanical puller designed for removing gears, bearings and pulleys. It is suitable for external pulling tasks in professional workshop environments.
A. Both the maximum spread and maximum reach of the SPEEDLINE1705 are 80 mm.
A. The three legs are synchronised via the spindle's support nut. When the spindle is operated, all three legs move simultaneously, ensuring even pressure distribution and a secure, centred grip on the component being extracted.
A. The three-leg design provides a balanced grip around the component, distributing pulling force more evenly and reducing the risk of slippage or misalignment during extraction.
A. No. The SPEEDLINE1705 is not suitable for use with air or impact tools. It is designed for manual operation only.
A. The product dimensions are 140 mm x 110 mm x 90 mm (L x W x H) and it weighs 0.6 kg.
