Product Number: 32005

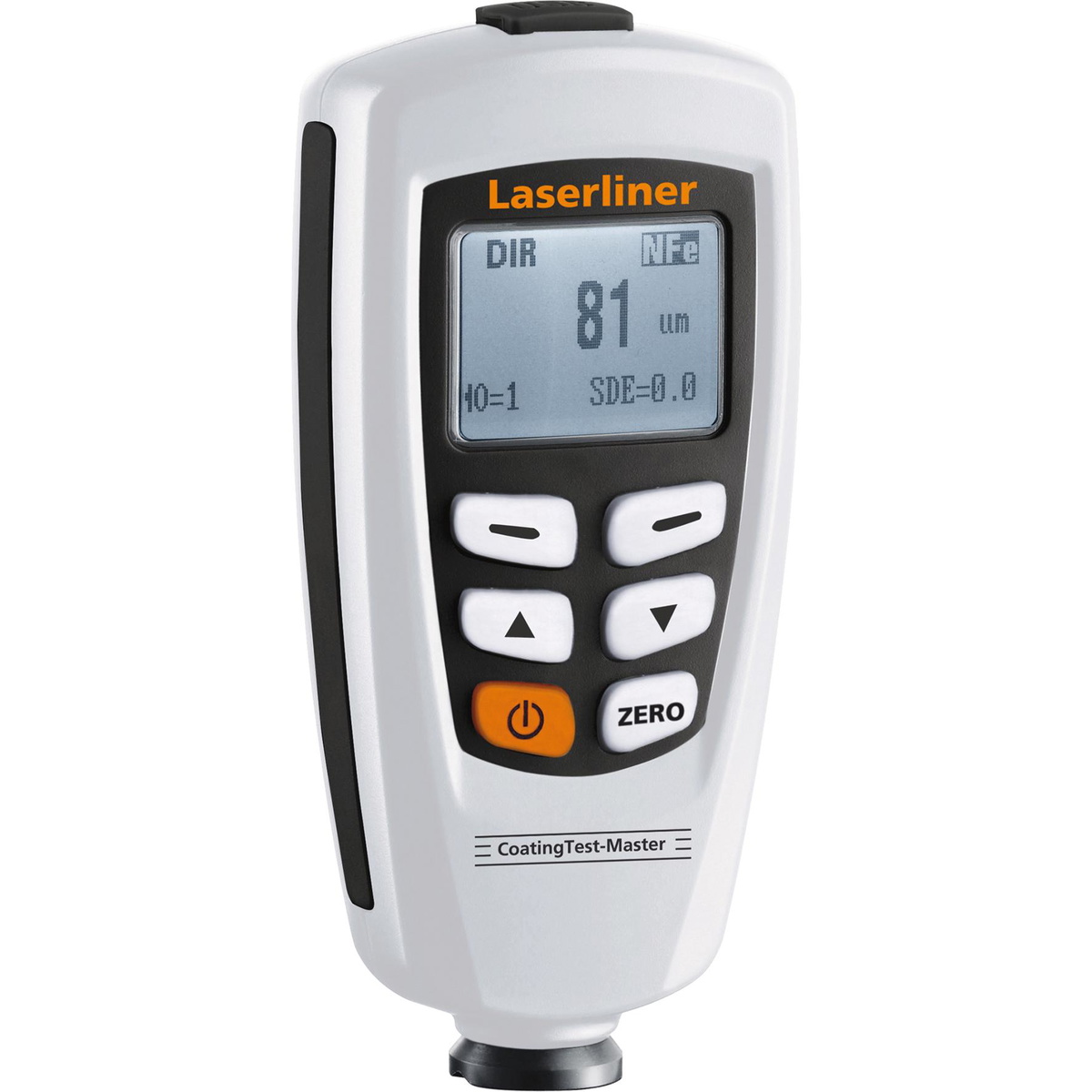

Measuring coating thickness accurately demands an instrument that adapts to the base material beneath the coating rather than requiring the operator to make that determination manually. The Laserliner 082.150A CoatingTest-Master addresses this directly by automatically identifying whether the substrate is ferrous/ferromagnetic or non-ferrous/non-ferromagnetic, then applying the appropriate sensor technology accordingly — magnetic-inductive for ferrous substrates and eddy current for non-ferrous substrates. The instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The measuring range spans 0 to 1250 µm, with both single and continuous measurement modes available. To maximise accuracy for specific applications, the device supports one-point or two-point user calibration, and zero adjustment is also provided. Mean value and standard deviation calculations are built in, supporting quality-control and statistical analysis workflows. Up to 400 measured values — organised as 80 measurements per mode — can be stored in the internal memory. Results are transferred to a PC via the USB interface for further analysis, and dedicated software is included in the supply. The unit is powered by two 1.5 V LR03 (AAA) batteries and weighs 116 g, with a compact profile of 23 mm × 110 mm × 50 mm. Supplied as a complete kit including calibration references, software, USB cable, batteries, and a carrying case, the CoatingTest-Master is ready for immediate deployment in workshop, industrial, or inspection environments.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
32005ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 32143 Laserliner ArcoMaster 60 Digital Angle Gauge 600mm
£228.75
£224.26
2% OFF
Free delivery in UK Mainland
|
Sealey AK9636D Digital Height Gauge 0-300mm (0-12")
£206.00
£201.96
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 32143 | 64458 | AK9636D | WW001 | AK10116 | WW002 |
A. The CoatingTest-Master measures coating thickness from 0 to 1250 µm.
A. The instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. It automatically identifies whether the base material is ferrous/ferromagnetic or non-ferrous/non-ferromagnetic and applies the appropriate sensor technology — magnetic-inductive for ferrous substrates and eddy current for non-ferrous substrates.
A. The device supports one-point or two-point user calibration to increase measuring accuracy, along with zero adjustment. Calibration references are included in the supply.
A. The internal memory stores up to 400 measured values (80 measurements per mode). Data is transferred to a PC via the USB interface; a USB cable and software are both included in the supply.
A. The device calculates mean value and standard deviation, supporting quality-control and statistical analysis requirements.
A. The kit includes the CoatingTest-Master measuring device, calibration references, software, a USB cable, batteries, and a carrying case.
A. The device is powered by two 1.5 V LR03 (AAA) batteries, which are included in the supply.
