Product Number: 03556
Variations

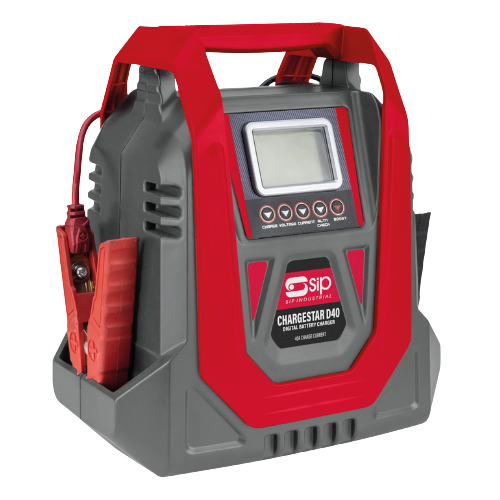

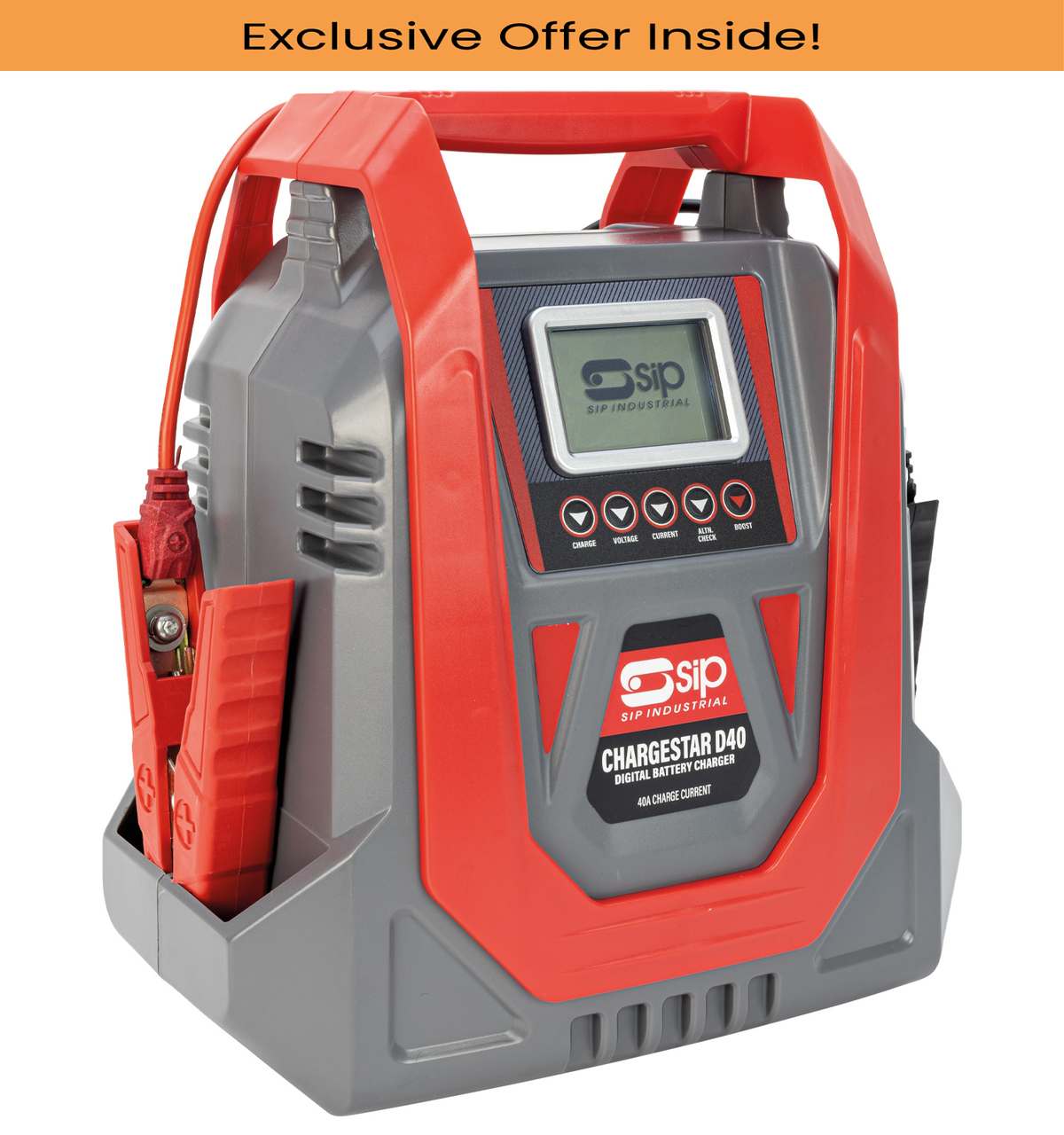

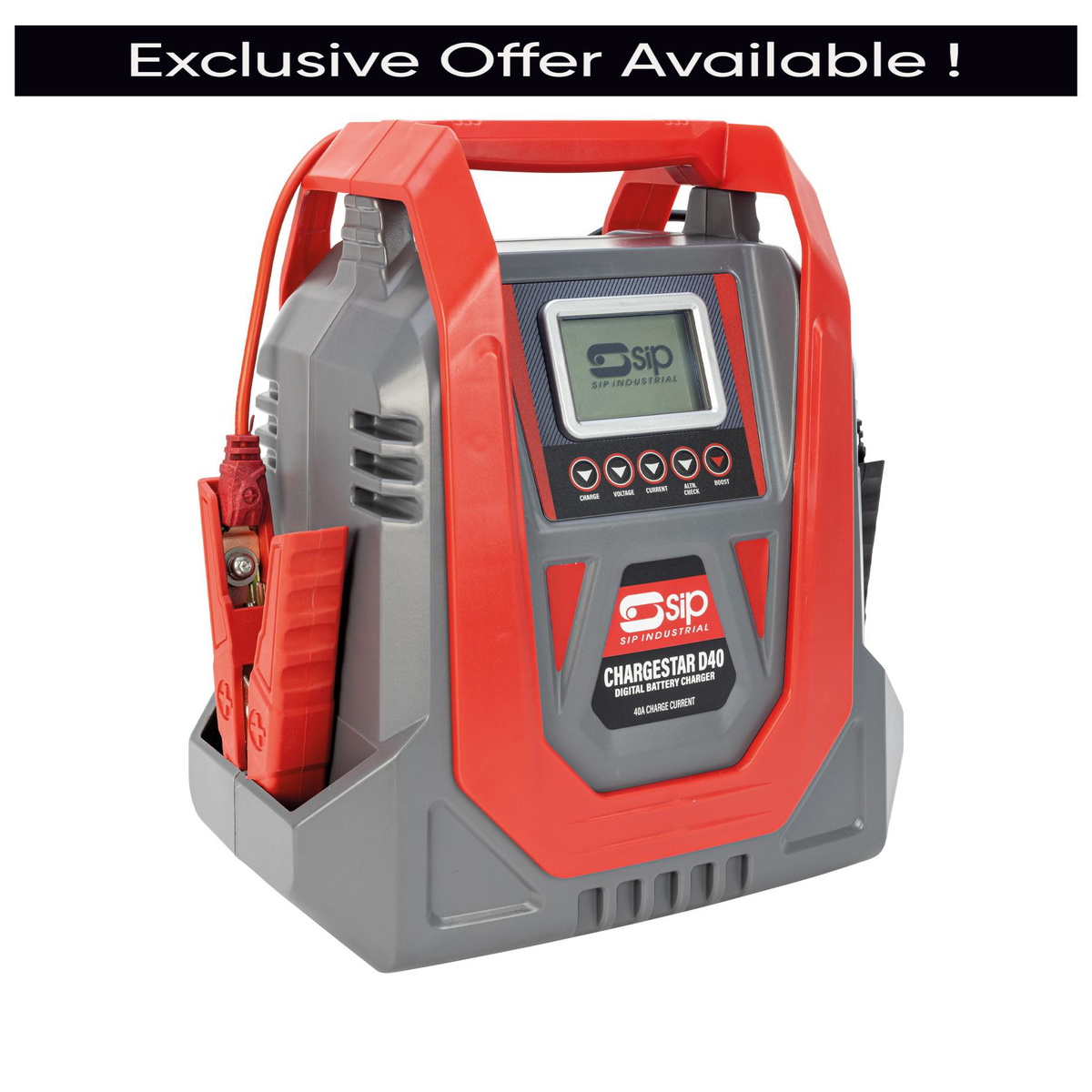

The SIP CHARGESTAR D40 Digital Battery Charger (03556) is a powerful, portable charger designed for charging all types of 12v and 24v lead acid batteries, making it ideal for battery charging applications in automotive and workshop environments, including commercial vehicle batteries.
At the heart of the CHARGESTAR D40 is an intelligent microprocessor that governs a fully automatic 8-step charging cycle, making battery charging easier, faster and safer. The unit is compatible with all 12v and 24v lead acid battery chemistries — WET, MF, EFB, GEL and AGM — and handles charging capacity of up to 550Ah at 12v and 300Ah at 24v. Charging current is selectable across four settings (2A, 10A, 20A and 40A) at 12v, and three settings (5A, 10A and 20A) at 24v. The Boost — Fast Charge mode delivers five minutes of continuous 40A charge when a rapid top-up is required.

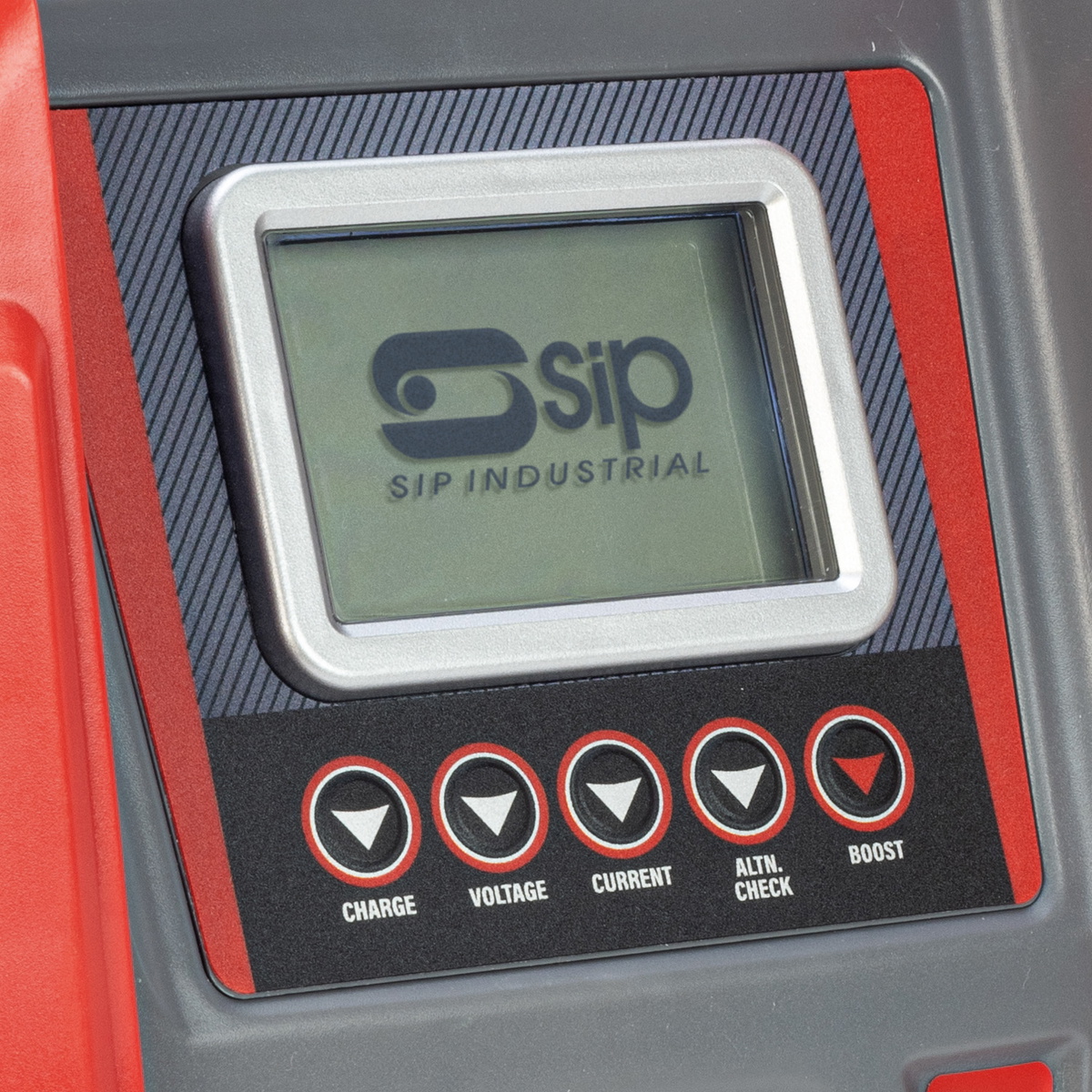

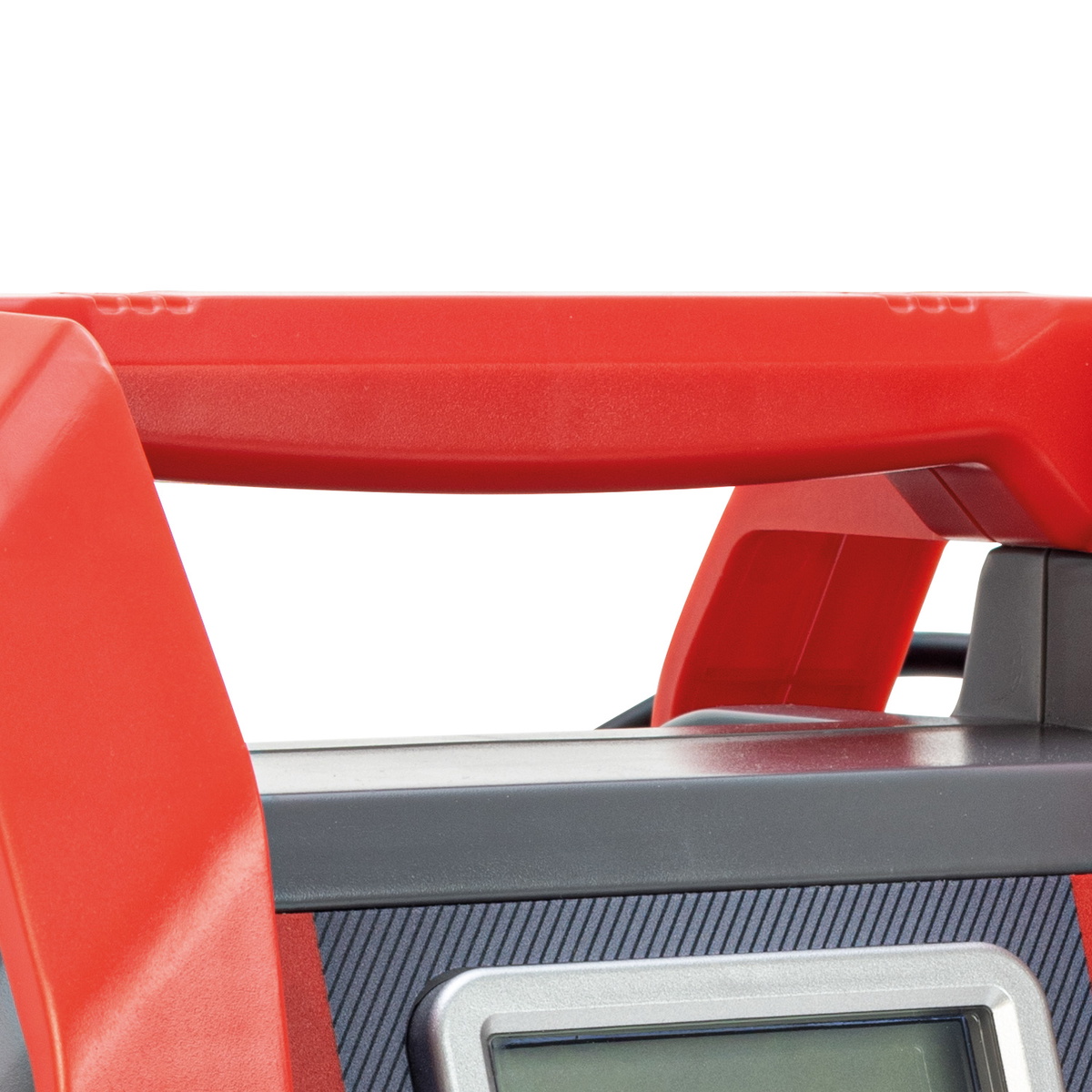

Before beginning a charge, the unit automatically diagnoses battery condition and voltage. A battery low voltage detector prevents charging if voltage falls below 3v, where recovery would not be possible. Once capacity is full, charging ceases automatically and the control panel indicates completion. An Altn Check mode allows alternator health and performance to be assessed on 12v vehicles. Built-in safety features include an anti-spark system, reverse polarity and overcharge protection, and an overheat alarm that triggers automatic restart once the unit has cooled. Protection is rated to IP20. The LCD screen and intuitive soft-touch control panel are complemented by a lightweight design with carry handle. Input supply is 220v–240v, 50–60Hz, with a 750W maximum draw and 10A input fuse. The operating temperature range is 0°C to 40°C.
Supplied with two 2-metre leads and clip clamps. Backed by SIP's 2-Year Standard Silver Warranty.
Additional Information:
The SIP CHARGESTAR D40 Digital Battery Charger is a powerful and portable digital battery charger designed for charging all types of 12v and 24v lead acid batteries. Featuring an intelligent microprocessor with 8-step automatic charging cycle, the CHARGESTAR D40 makes battery charging easier, faster and safer. Applications & uses: Ideal for battery charging applications in automotive and workshop environments. Suitable for charging commercial vehicle batteries.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03556 |
|---|---|
| Input Supply | 220v - 240v 50-60Hz, 750w max. |
| Input Fuse | 10A |
| Charging Voltage | 12v DC / 24v DC |
| Charging Current | 2A / 10A / 20A / 40A @ 12v / 5A / 10A / 20A / 40A @ 24v |
| Battery Low Voltage Detector | >3v |
| Charging Steps | 8; Fully Automatic Charging Cycle |
| Battery Types | All 12v/24v Lead Acid (WET, MF, EFB, GEL, AGM) |
| Battery Capacity | 550Ah (12v) / 300Ah (24v) |
| Temperature Range | 0°C - 40°C |
| Protection Level | IP20 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05539 Startmaster PWT1400 Battery Starter Charger
£781.07
£765.75
2% OFF
Free delivery in Channel Island
|
SIP 05534 Startmaster PW520 Battery Starter Charger
£357.05
£350.05
2% OFF
Free delivery in UK Mainland
|
Sealey START320 Starter/Charger 320/45A 12/24V 230V
£233.58
£229.00
2% OFF
Free delivery in UK Mainland
|
Sealey START420 Starter/Charger 420/60A 12/24V 230V
£253.28
£248.31
2% OFF
Free delivery in UK Mainland
|
Sealey START660 Starter/Charger 660/100A 12/24V 230V
£293.36
£287.61
2% OFF
Free delivery in UK Mainland
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05539 | 05530 | 05534 | 03573 | 03574 | 05531 | 05532 | 05533 | 05536 | 05537 | 05538 | PW25-00013 | START320 | START420 | START660 |
| Warranty | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| Type | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Batteries | Charger | Charger | Charger |
| Voltage | 18 | ||||||||||||||
| Output Current | 10 | 15 | 45 | 60 | 100 | ||||||||||
| Brand | Sealey | Sealey | Sealey | ||||||||||||
| ITEM NO | 25 | ||||||||||||||
| Model No | START320 | START420 | START660 | ||||||||||||
| Nett Weight | 18.42kg | 18.52kg | |||||||||||||
| Voltage (V) | 230 | 230 | 230 | 12 | 12 | 230 | 230 | 230 | 230 | 230 | 230 | 18 | 24 | 24 | 24 |
| Weight (kg) | 42 | 52 | 23.4 | ||||||||||||
| Show More | |||||||||||||||
A. The SIP CHARGESTAR D40 is designed to charge all types of 12v and 24v lead acid batteries, including WET, MF, EFB, GEL and AGM chemistries. It supports battery capacities of up to 550Ah at 12v and 300Ah at 24v.
A. At 12v, the unit offers four current settings: 2A, 10A, 20A and 40A. At 24v, three settings are available: 5A, 10A and 20A. A Boost — Fast Charge mode delivers five minutes of continuous 40A charge for rapid top-ups.
A. The CHARGESTAR D40 uses an intelligent microprocessor to govern an 8-step fully automatic charging cycle. It diagnoses battery condition and voltage before commencing the charge. Once the battery reaches full capacity, charging stops automatically and a control panel indicator is displayed.
A. If the detected voltage is less than 3v, the unit will prevent charging, as battery recovery at that level is not possible. This protects both the charger and the user from attempting to charge a battery that is beyond recovery.
A. The unit includes an anti-spark system to prevent sparks when connecting clips to battery terminals, reverse polarity protection, overcharge protection, and an overheat alarm. If the unit overheats, it will stop automatically and restart once it has cooled sufficiently.
A. Yes — the unit features an Altn Check mode that indicates alternator health and performance. This function is available on 12v vehicles only.
A. The charger requires a 220v–240v, 50–60Hz supply with a maximum draw of 750W and a 10A input fuse. It is rated for operation between 0°C and 40°C, and carries a protection level of IP20.

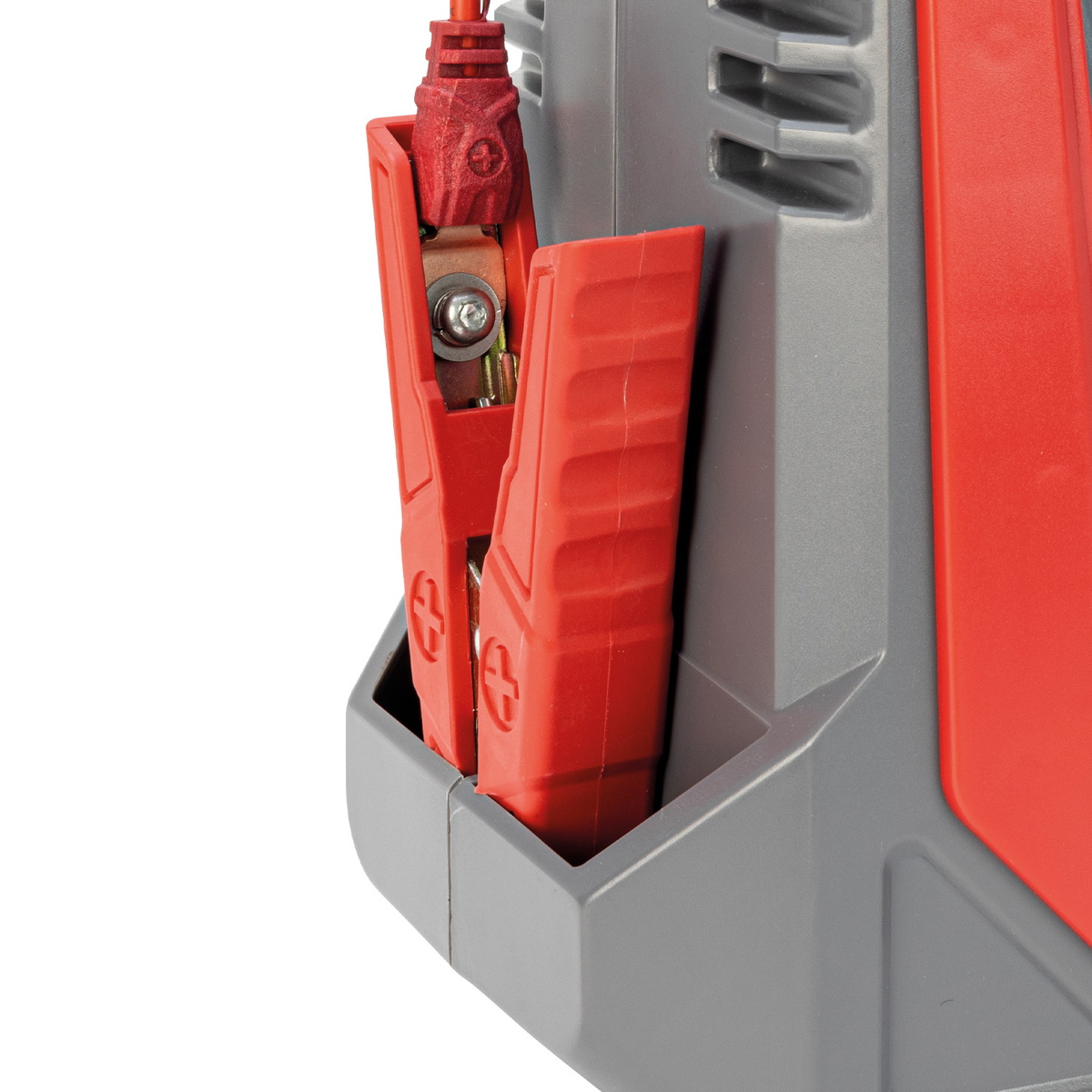

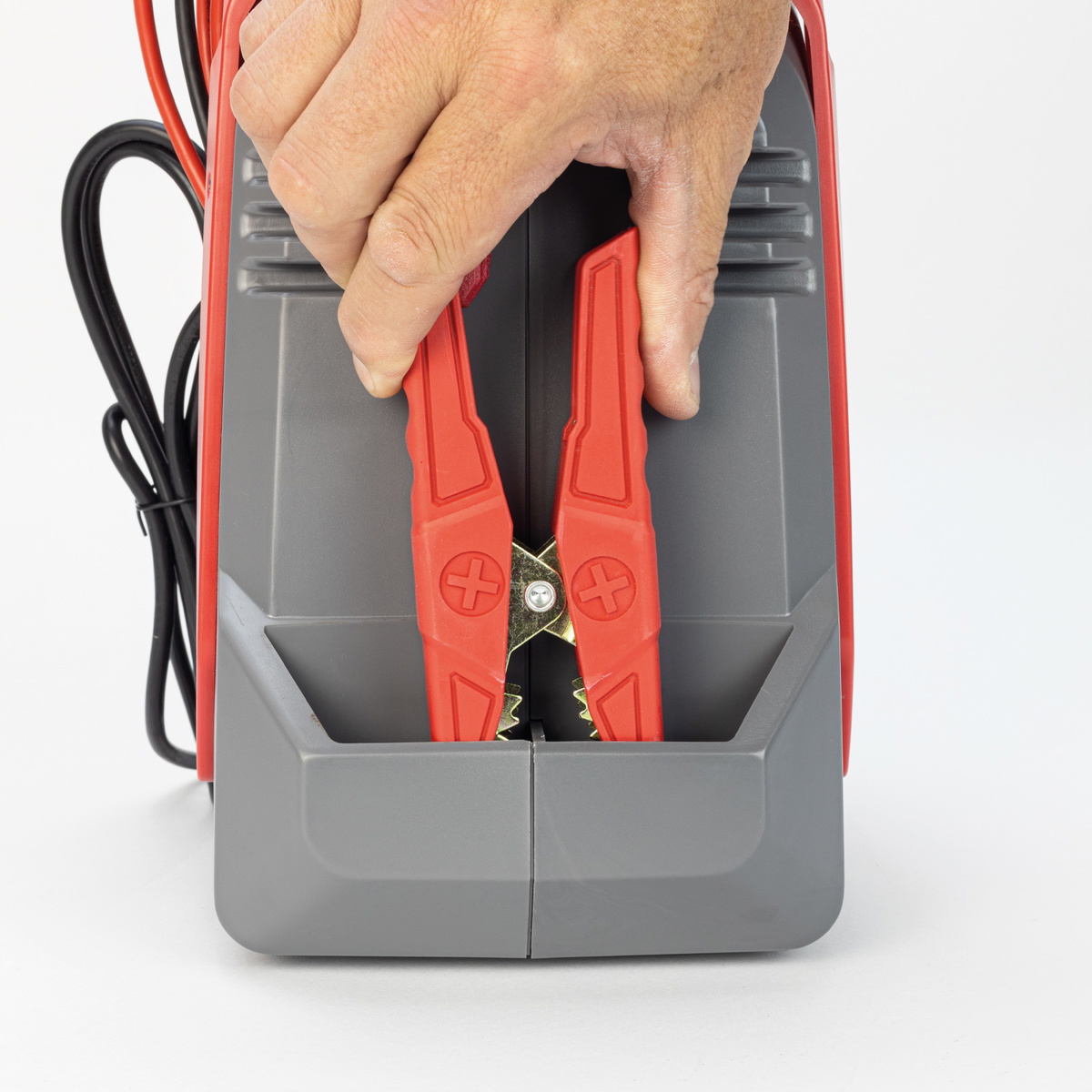

A. The unit is supplied with two 2-metre leads fitted with clip clamps.
A. The SIP CHARGESTAR D40 is backed by SIP's 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
